Description
X Axis | 900 mm |
---|---|
Y Axis | 710 mm |
Z Axis | 710 mm |

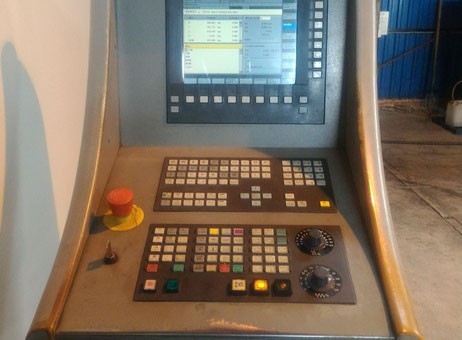

CNC type | Sinumerik 840d |
Table length | 630 mm |
Table width | 500 mm |
Max load on table | 500 kg |
Spindle taper | SK 50 |
Max. spindle speed | 10000 rpm |
Spindle motor power | 37 kW |
Overhauled | no |
Length x width x height | 5900.0 × 5700.0 × 3100.0 |
Weight | 15300 kg |
Additional information
Processing area:
Turntable B – 360 gr.
Accelerated travel X / Y / Z – 40 m / min
Desktop:
Number of pallets – 2 pcs.
Tool Store:
Number of cells – 40 pcs.
Equipment:
– Internal cooling – 40 bar.
– Measuring probe MR10

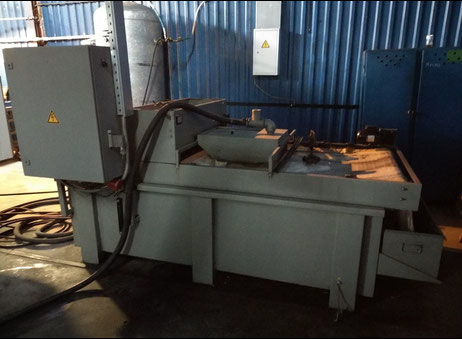

– The chipper
The documentation
