Description
Axis X | 800 mm |
---|---|
Axis Y | 700 mm |
Axis Z | 700 mm |
Rotary table (4th axis) | no |
CNC | Siemens 840 D Shopmill |
Table length | 500 mm |
Table width | 500 mm |
Number of tool pockets | 50 |
Spindle taper | SK 40 |
Max. spindle speed | 10000 rpm |
Spindle motor power | 28 kW |
Length x width x height | 6000.0 × 3950.0 × 2750.0 |
Weight | 12000 kg |
Worked hours | 34000 hours |

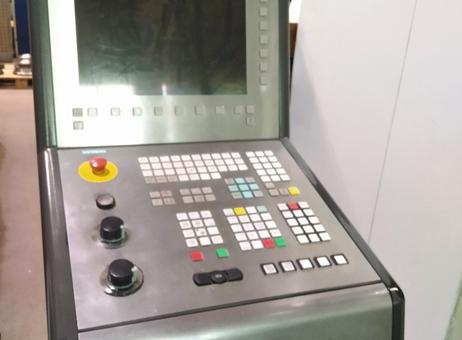

Control CNC Siemens 840 Shopmill

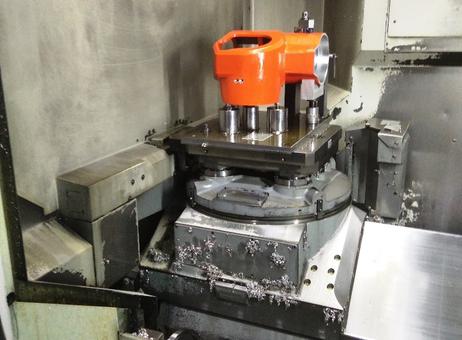

2 compartment pallet 500x500mm
Longitudinal travel (X, Y, Z axis) 800x700x700mm
Tool changer 50
Tool holder: SK 40
Vertical spindle speeds: 31.5-10000U / min
Feeds 2-15000mm / min

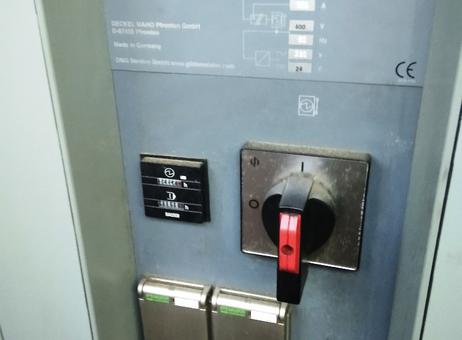

Connection 50 Hz 3x 380V
28KW spindle motor
Machine weight approx. 12000kg
Dimensions 6000 x 3950 x 2750 mm
