HWACHEON Hi-Tech 850 MC CNC Turning Center – Year 2012

Contact us for price

Category:

Description

HWACHEON Hi-Tech 850 MC CNC Turning Center – Year 2012
Turning length 800 mm
Turning Ø 380 mm
Ø above the bed 600 mm
Ø above transversing slide 340 mm
Length between centers 800 mm
Type of CNC FANUC 0i-TD
X-axis 485 mm
Z-axis 2650 mm
Max workpiece weight kg
Spindle bore 75 mm
Number of turrets 1
Number of tools on turret 12
Number of rotating tools
Turning speed 3000 rpm
Spindle motor power 50 kW
Tailstock yes

HWACHEON Hi-Tech 350 was manufactured in 2012. A robust horizontal turning machine, it offers reliable performance for precision machining. Consider the opportunity to buy this HWACHEON Hi-Tech 350 horizontal turning machine. Contact us for more information.

Brand: FANUC
Model: 0i-TD
Number of axis: 2
X-Axis Movement: 485 mm
Z-Axis Movement: 2650 mm
Hydraulic clamping cylinder, piston stroke 51 mm, bore 165 mm
Draw tube, clear width 165 mm
Electronic handwheel
Work area full protection with large viewing door (door opening 2770 mm), electrically fused
Internal coolant unit, capacity 400 L, pump capacity 30 L/min, 6 bar pump pressure
Automatic centralised lubrication
RS-232-C interface (Ethernet option)
Machine control elements
3-colour paint finish grey-light grey-signal blue

Foot switch for clamping device and quill
Fanuc alpha 40/6000i main drive with 45 kw (50% ed)
4-stage main gearbox
Cooling of the main spindle through a separate oil circuit with a temperature-controlled cooling unit
Main spindle, inside diameter of front spindle bearing: 240 mm // spindle connection a2-15
12-position tool turret with directional logic, direct mounting
Tailstock positionable (dragged along with z-axis, travel range 2650 mm)
Quill programmable, including fixed tailstock centre mk 6 mounted in the quill
Milling drive 11 kw (50% ed) drive power; torque 210 nm (at 500 rpm); max. Speed 3000 rpm in conjunction with c-axis 0. 001° positioning
Standard tool holder for internal and external machining Hwacheon machines comply with the CE standard.

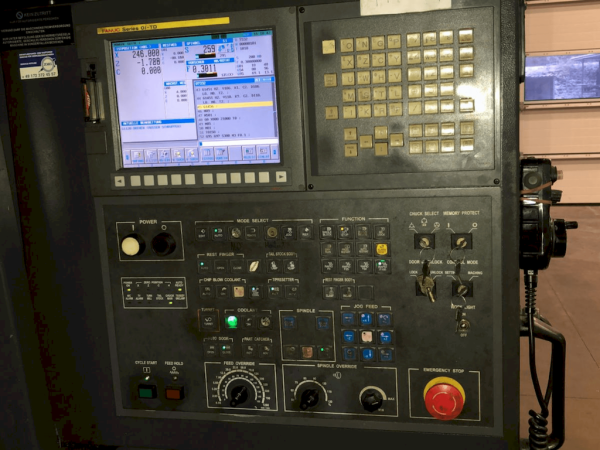

Control Unit

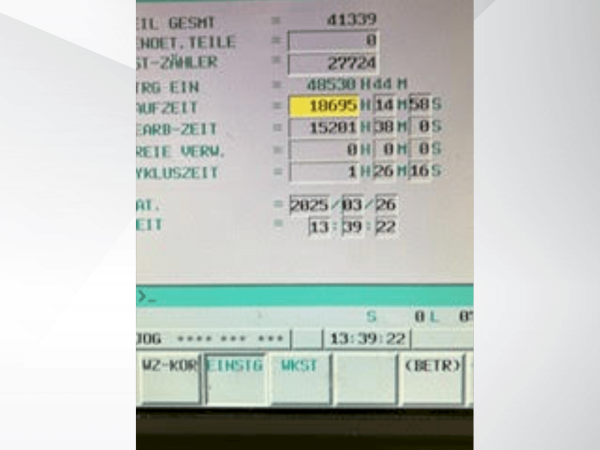

Fanuc Oi-TD control with a 10.4-inch screen
Manual Guide i user interface
Central control panel for machine and CNC control
