Description

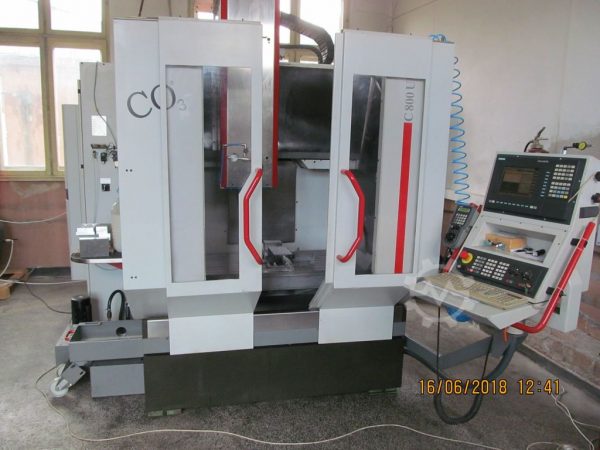

Type – 3-axis milling center Hermle C800U
Year of manufacture – 1997
Base – polymer-concrete
Tracking – Heidenhain lines
Control – Siemens 840D without shopmill.
Spindle speed – 8 000 min-1.
Spindle tempering with antifreeze.
Spindle hours – 2500 h.
Holder – DIN 69871-AD 40
Tool changer – 30 positions
Water tank – 300 l.
Working table – 1000 x 560 mm
X – 800 mm
Y – 600 mm
Z – 500 mm
Cooling options – water / standard / + added dry air turbine on the front of the spindle.
Added external pressurized air gun to clean work area or parts inside/outside.
Available blocks and rings for transport / lifting /.
Original heels / steps / for leveling.
Connection via Lan data cable.
3.5 “floppy running. Replaced with an emulator to use USB-flash memory for faster program transfer.
Replaced pneumatic cylinder on shop door by work area.
Full machine documentation is available.
