Description

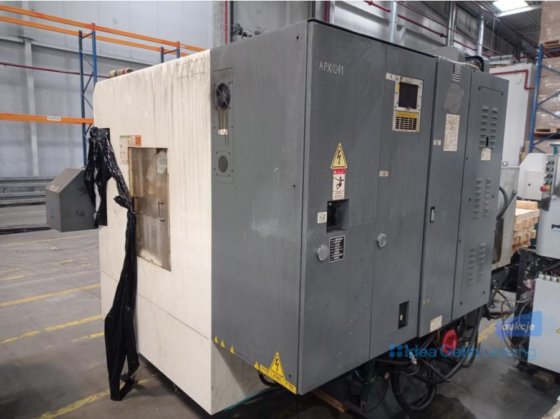

HARTFORD PRO-1000SP – Year 2008
Vertical machining center
Production TAIWAN
FANUC induction motor
main engine power 11kW
Hardened slide rails protected by telescopic protective covers
Ball screw spherical roller gearboxes on all axes
vertical spindle with BT-40 cone socket
spindle speed range 40-6000 rpm with infinitely variable adjustment
compressed-air spindle blow
automatic lubrication system
refrigeration system
coolant nozzles around the spindle
dimensions of work table 1150x600mm
maximum table load capacity 700kg
the travel in X, Y, Z axes respectively 1000x600x510mm
Spindle face distance from column 650mm
Working speeds 1-12000 mm/min
fast (reversible) travel speed in X and Y axes 24 000mm/min, in Z axis 20 000mm/min
tool magazine with horizontal axis of rotation for 24 toolholders
maximum tool dimensions max. tool diameter 75mm, maximum tool length 300mm, weight
including a 6kg binding
