Description
HAAS MIKRON VCE 1250
The vertical milling center
produced in 2000.
Technical parameters :

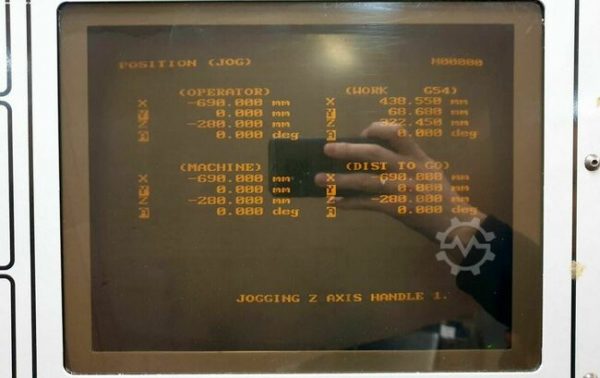

CNC control: HAAS
data transmission: RS232
4 axles
working table surface: 1320 x 457 mm
spindle taper: SK40
spindle speed range: 10-7500 rpm.
spindle power: 11 kW
number of tools in the magazine: 32
X axis travel: 1260 mm
Y axis travel: 476 mm
Z axis travel: 408 mm
A axis: 360 degrees (HRT210 dividing head)
power supply: 3 x 400V
maximum current at full load: 20 A
compressed air pressure: 5.5 bar
center width: 2.97 m (chip conveyor: 3.57 m)
machine depth: 2.5 m (tilted monitor: 3.43 m)
height: 2.7 m (maximum elevated Z axis: 3.03 m)
weight: approx. 6 t
DTR – technical and operational documentation
