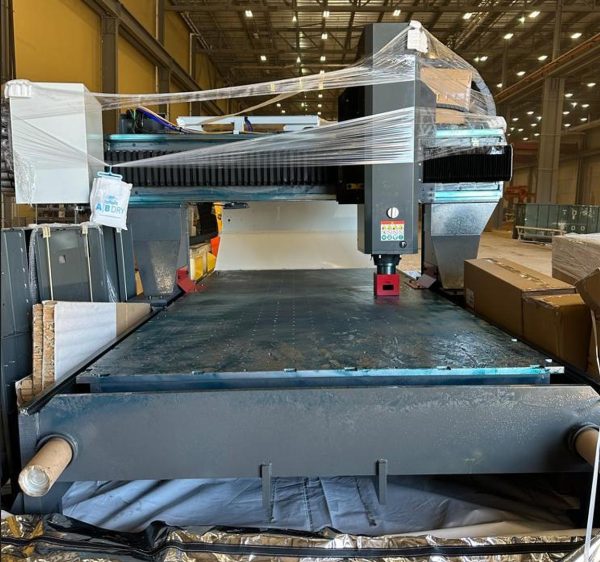

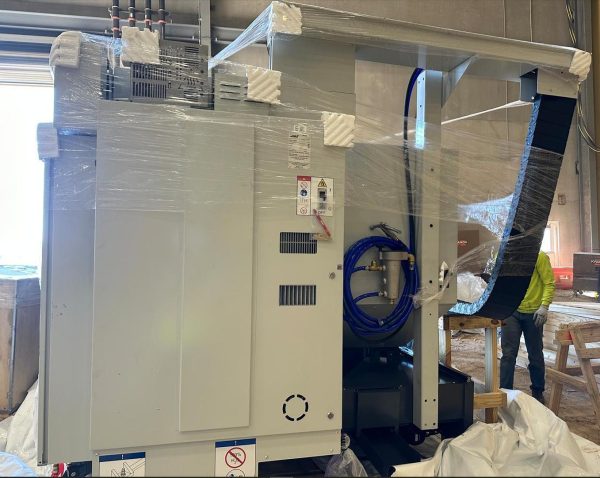

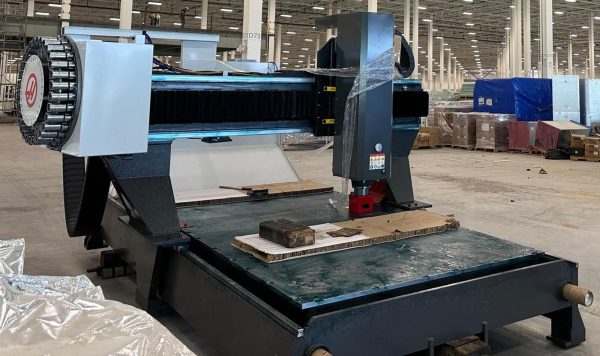

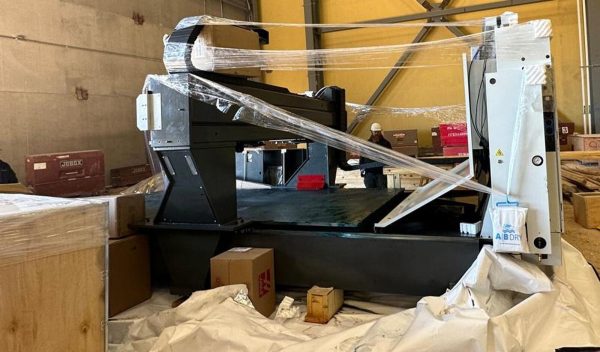

Haas GM-2 CNC Gantry Mill – Year 2022
Condition : New, Zero Hours (Never Installed)
SPECIFICATIONS:
TABLE LENGTH: 144″
TABLE WIDTH: 72″
TABLE CAPACITY: 6,000 Lbs.
X-AXIS TRAVEL: 145″
Y-AXIS TRAVEL: 87.5″
Z-AXIS TRAVEL: 22″
SPINDLE SPEED: 8,100 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: CAT 40
TOOL CAPACITY (ATC): 30
RAPID TRAVERSE – X/Y AXIS: 472X/1,890Y in/min.
RAPID TRAVERSE – Z-AXIS: 1,181 in/min.
CUTTING FEEDRATE 472 ipm
APPROX MACHINE WEIGHT 20,200 Lbs.
APPROX MACHINE DIMENSIONS 226″ X 143″ X 109″
EQUIPPED WITH:
THROUGH SPINDLE COOLANT (300 PSI)
AUXILIARY COOLANT FILTER SYSTEM
8100 RPM 40 TAPER 30HP VECTOR DRIVE, INLINE DIRECT-DRIVE

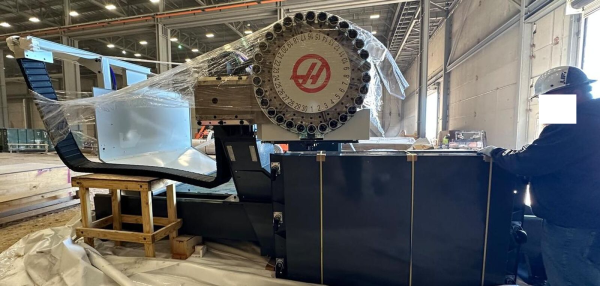

30 + 1 SIDE-MOUNT TOOL CHANGER
STEEL TABLE WITH M12 METRIC (3658 x 1829 x 25mm)
THROUGH-TOOL AIR BLAST
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
PROBE RISER BLOCK
CHIP AUGER
GANTRY ROUTER COOLANT SYSTEM
CONTROL TOUCH SCREEN
EARLY POWER-FAILURE DETECTION MODULE
ETHERNET INTERACE
WIFI CONNECTION FOR THE HAAS CONTROL
LARGE REMOTE JOG HANDLE WITH TOUCHSCREEN DISPLAY
1 GB STANDARD PROGRAM MEMORY
SECOND HOME POSITION
POWER SURGE PROTECTION
MEDIA DISCPLAY M-CODE; M130
HAAS CONNECT: REMOTE MONITORING
RIGID TAPPING
SPINDLE ORIENTATION
USER DEFINABLE MACROS
COORDINATE ROTATION AND SCALING
VISUAL PART PROGRAMMING
REPLACEMENT COST FOR ABOVE MACHINE AS EQUIPPED: $265,760
HOURS OF USE AS OF 6/19/23:
– UNUSED. NEVER INSTALLED.
AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
