GILDEMEISTER N.E.F. CT 40 – 1988 Model

Request a Quote



Peak height:260 mm
Turning length:600 mm
Max. turning diameter over bed:400 mm
Main spindle bore:68 mm
Speed range, 2 stages:25 – 4000 rpm
Spindle size:Size 140 h5
Tailstock receptive:MK 4
Drive power:22 kW
Dimensions lxw x h:about 3600 x 1720 x 1650 mm
Mass:3200 kg
Peak height [mm]:260
Tip-wide [mm]:600
Spindle bore [mm]:68

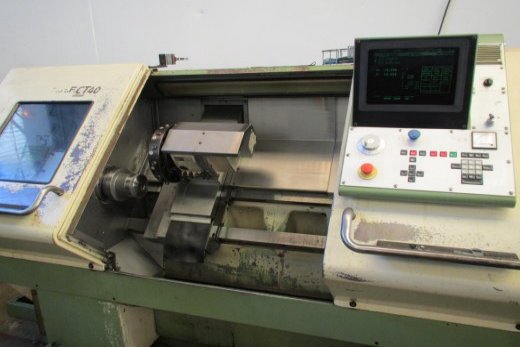

CNC high performance inclined bed lathe GILDEMEISTER N.E.F. CT 40
Accessories / special features:
Electronic handwheel
Interface RS 232
Hydraulic 3-jaw chuck
Hydraulic collet device 12x

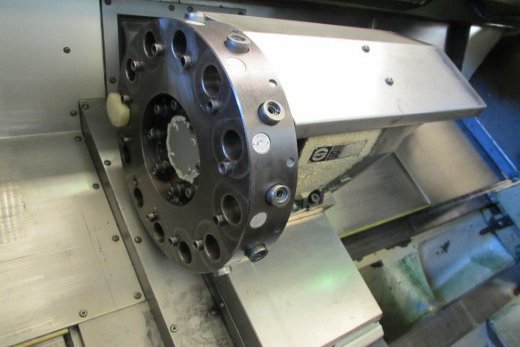

Tool turret disc,
, internal coolant supply, mounting hole Ø 30 mm, DIN 69880
Hinged chip conveyor
Electric foot switch
The spindle bearings of the main spindle and
drive belts were in the January 2019 renewed!
Very good condition!
