Açıklama
Max. Ø | 250 mm |
---|---|
Nbr of spindles | 2 |
Max. length | 550 mm |
Type | CNC |
Type of CNC | SIEMENS 840C |
Spindle speed | 5000 rpm |
Weight | 6500 kg |

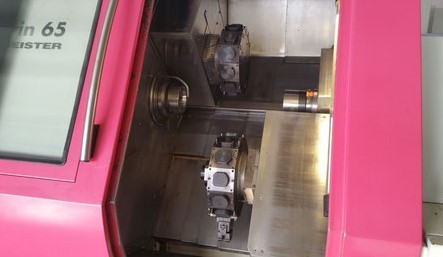

Type: Automatic CNC Turning Machine
Manufacturer: GILDEMEISTER
Model: MF Twin 65 Y
Control: SIEMENS 840C
Country: Germany
Machine parameters:
Head 1: 12 – VDI-30 tool holders (all driven sockets), Y-axis
Head 2: 12 – VDI-30 tool holders (all power outlets)
max rev. 5000 / min.
warehouse – FMB Turbo bar feeder
2 x C axis
Y axis
driven tools
capture spindle
Receiver of finished detail
max. of turned. X axis = 250mm
max length of roll. Z axis = 550mm
cooling system
Hainbuch BZI65 main hydraulic handle
Hainbuch BZI65 hydraulic catch
spindle opening Fi-66mm
chip conveyor
full programming instruction
Documentation
machine weight: 6.5 tonnes
