Açıklama
distance spindle-table 415 mm
table 0600×200 mm
Delivery time prompt, subject to prior sale
distance spindle-table: 415 mm
table: 600 x 200 mm

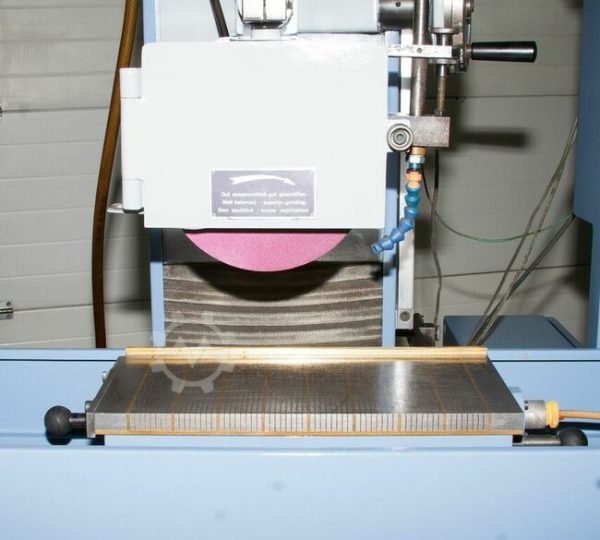

magnetic clamping plate: 400 x 200 mm
Spindle speed: 2,800 rpm
table speed: 2-28 m/min
grinding wheel dim.: 225 x 25 x 51 mm
max. workpiece weight: 150 kg
Spindle Motor power: 1,7 kW
Machine drive power approx.: 4,5 kW
Length: 1.300 mm
width: 1.200 mm
Height: 2.250 mm
Weight: 1.050 kg

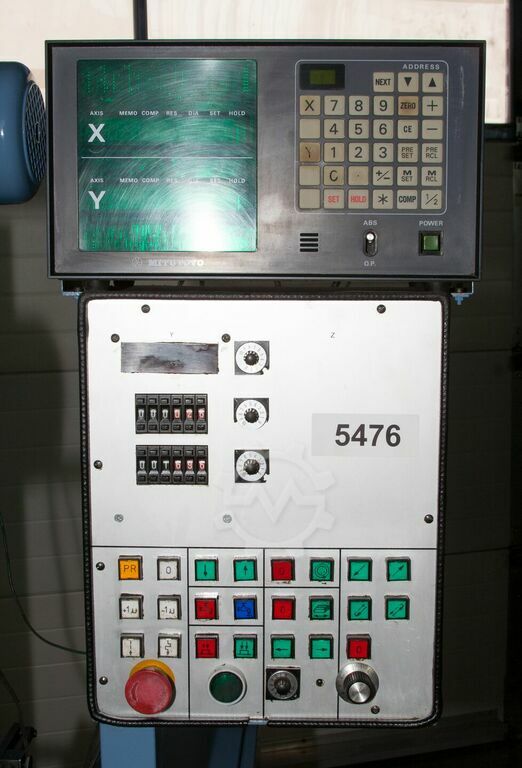

2-axis digital display for X,Y, Mitutoyo FLC 1701-2Sinusoidal table Angle adjustment via gauge block with magnetic clamping plateHydraulic driveStepless speed controlIntermediate infeedIntegrated hydraulics and Lubrication system – oil volume 80 litres coolant unitnew wheel honing sleeve with diamondOperating Instructions in GERMAN Accessories: 19 pcs. various Gebr. grinding wheels with mounting flange, 2 pcs. additional mounting flangeDoes not comply with the current work equipment regulations (AMVO & UVV)
