Description
Table length | 525 mm |
---|---|
Table width | 400 mm |
CNC | Yes |
CNC type | Siemens Sunimeric |
Wheel diameter | 300 mm |
Wheel width | 76 mm |
Wheel bore | 50 mm |
Max. wheel speed | 4000 rpm |
Power | 13 kW |
Weight | 2500 kg |

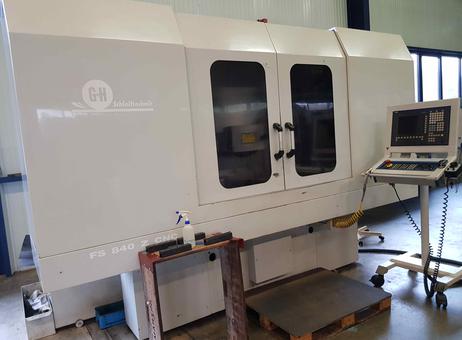

Surface and profile grinding machine Geibel & Hotz FS 840 Z CNC
Technical specifications
Grinding length 800 mm
Grinding width 400 mm
Grinding height 375 mm
Grinding height (option) 575 mm
Table load 700 kg
X-axis – longitudinal movement of the work table
Longitudinal table stroke 10-850 mm
Table speed 0.001-35 m / min
Y-axis – vertical movement
Distance table to center of spindle 140-525 mm
Distance from table to spindle center (option) 140–725 mm
Vertical speed 50-4000 mm / min
Z-axis – transverse movement
Cross travel max. 400 mm
Transverse speed 50-4000 mm / min
Grinding spindle
Power of grinding spindle motor 7 kW
Grinding spindle motor power (option) 9 kW
Grinding spindle speed 1000-3180 min-1
Grinding wheel, standard 300x50x76.2 mm
