Description

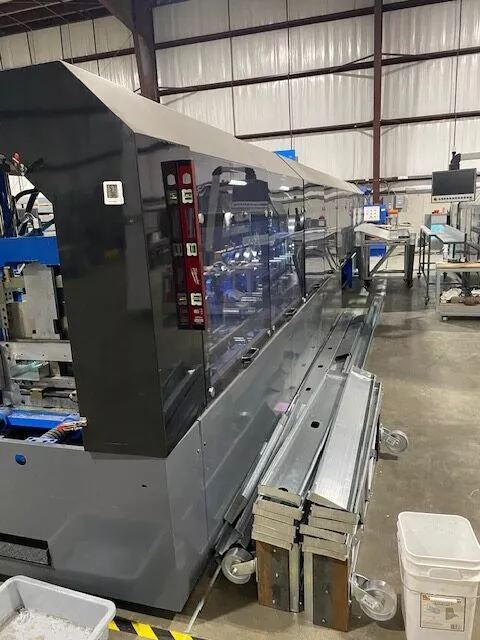

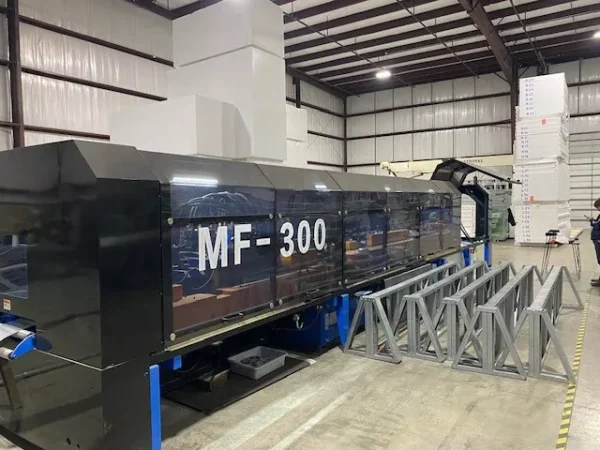

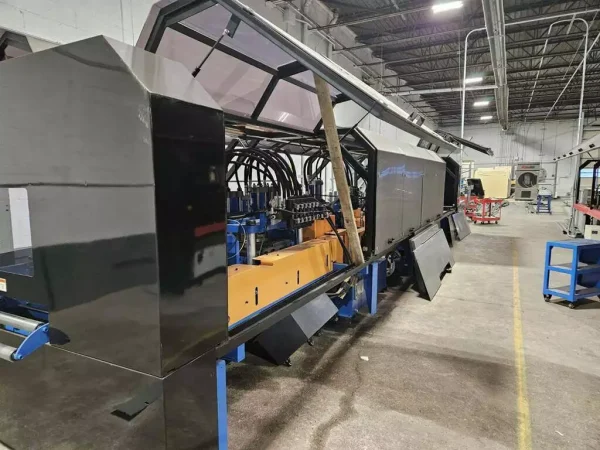

FRAMETEC (XIAMEN) BUILDING TECHNOLOGY CO MF-300 Multi-Sizes Stud & Track Light Steel Frame Machine – Year 2022
Machine:
Weight: 45981.81 lbs.
Dimensions: 404.05” x 166.02” x 77.16”
Width in any size within: 2.5″ to 12”
Flange: 1.25″ – 2.5″
Lip: 0.78”
Thick: 0.1” (adjustable)
Production Speed: High Speed 1.37”/min.
Material: Q235, G550 Hot rolled strip pr ot rolled galvanized strip
Voltage: 380 V
Frequency: 50 Hz
Electrical Phase: 3 P
Power Supply: 22 KVA
Power: 19.03 hp

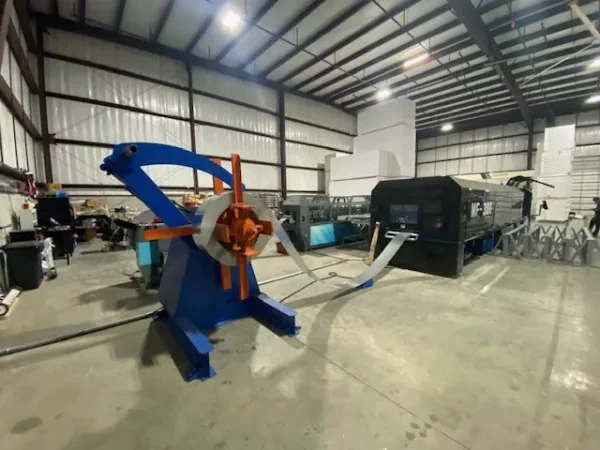

Decoiler:
FDY71 Fully Automatic
Load: 6 Tons
Tension mode: Hydraulic tension
Spindle double holding brake
Self-driven feeding
Weight: 2226.66 lbs.
Dimension: 90.43” x 110.23” x 74.01”
Support Table:
Support length: 6 Meters
Support Method: Fixed storage table
Weight: 209.43 lbs.
Dimension: 236.22” x 20.07” x 33.30”
Hydraulic System:
Hydraulic power: 15 hp
Flow: 28 ml
Tank Volume: 200 L
Dimension: 1.85 “ x1 2.59” x 61.41”
Oil circuit of hydraulic station: 10
Equipped With:
Hydraulic Decoiler
Feeding and Leveling Device
Hydraulic Punching

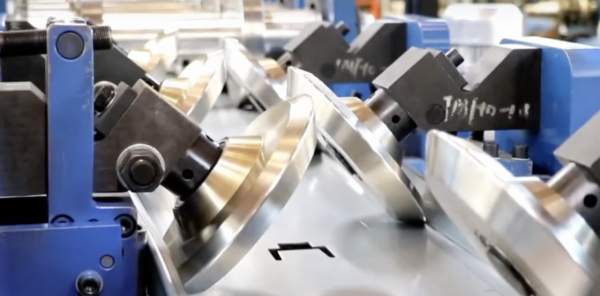

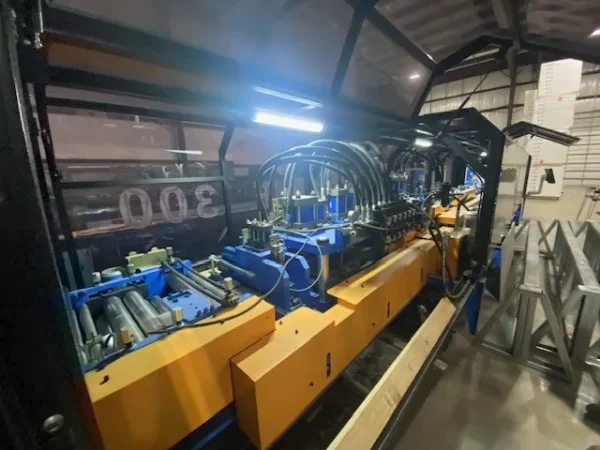

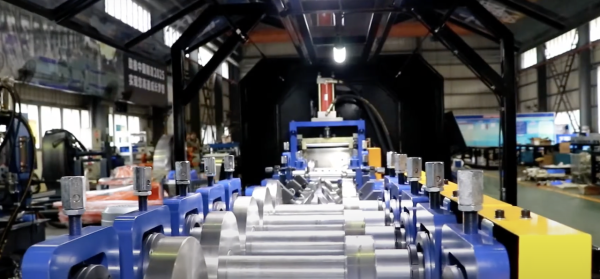

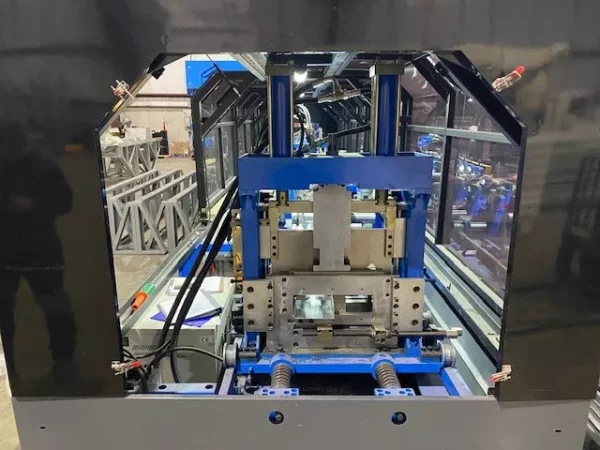

Rolling Forming System
Hydraulic Cutting
Safety Coves Guard

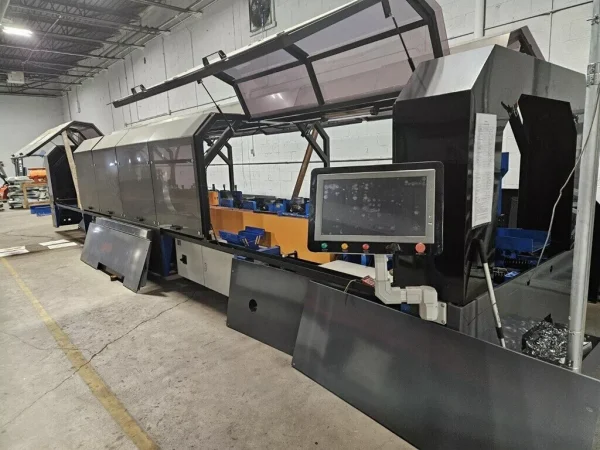

Industry computer control panel
Product Support frame
PLC Control System
Note: Machine Profile Lists available upon request
