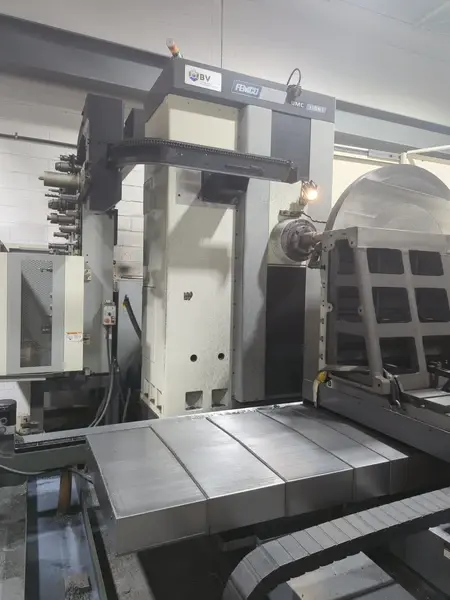

• FEMCO BMC-110R1 CNC Horizontal Table Type Boring Machine

    Contact us for price

    Category:

    Description

    FEMCO BMC-110R1 CNC Horizontal Table Type Boring Machine
    Main features:
    Axes and ballscrews: High-precision 2″ ballscrews, preloaded to eliminate backlash and ensure smooth movement. Automatic axis lubrication to reduce wear and extend service life.
    High-performance spindle: ISO #50 taper with automatic drawbar,
    compatible with a wide range of tools.

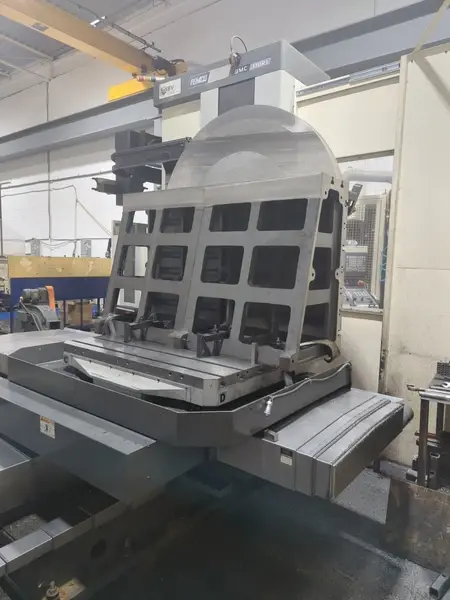

    Rotary table: automatic indexing every 90° for standard multi-sided operations.
    Load capacity of 8,819 lbs with dimensions of 44.09″ x 49.21″.

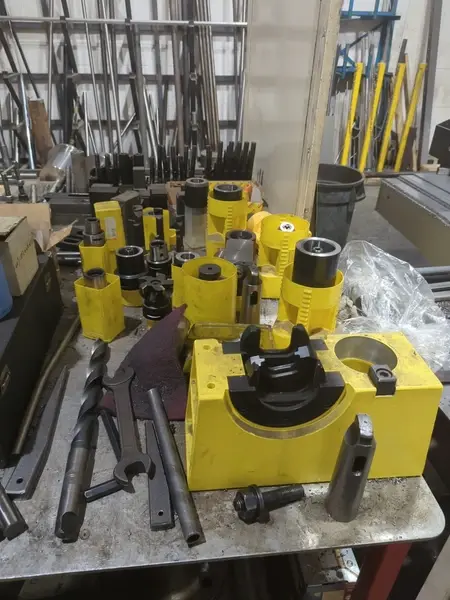

    Quick tool change: Tool magazine for up to 90 tools.
    Tool-to-tool changeover time of 15 seconds.
    Accuracy: Precise positioning to 0.001″ / 11.81″ and repeatability to ±0.0004″.
    General specifications: 35,274 lbs net weight,
    220 V three-phase power supply (440 V transformer available).

    FEMCO BMC-110R1  TRAVERSE
    Table Cross Travel (X) 1400mm
    Headstock Travel (Y) 1200mm
    Table Longitudinal (Z) 1100mm
    TABLE
    Table Size  1120 x 1249mm
    Table Load 4000kg
    SPINDLE
    Stroke (W) 500mm
    Diameter 110mm
    Taper ISO No.50
    Toolshank CT-50
    Pull Stud (MASI Option) MASII 60°
    Milling Spindle Diameter 225mm
    Motor 22/26kW
    Low Speed Range 4-454RPM
    High Speed Range 455-2500RPM
    AUTOMATIC TOOL CHANGER
    Tool Storage Capacity 60,90 Tools
    Maximum Tool Weight 25kg
    Maximum Tool Diameter 120mm
    Maximum Tool Diameter 250mm
    Maximum Tool Length 400mm
    Tool to Tool Exchange Time 15secs
    Tool Selection Method Automatic
    POSITIONING SERVO MOTOR
    X-Axis 5.97kW
    Y-Axis 7kW
    Z-Axis 5.97kW
    W-Axis 4kW
    B-Axis 3.8kW

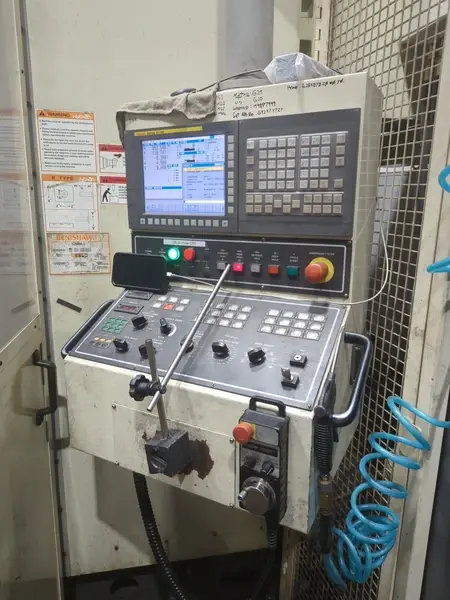

    CONTROL
    Positioning Accuracy X,Y,Z and W-Axis 0.0254/300mm
    Repeatability X,Y,Z and W-Axis 0.01mm
    Control Axis 5
    Simultaneous Control Axis 4
    RAPID TRAVERSE RATE
    X,Y,Z Axis 10m/min
    W-Axis 6m/min
    MACHINE DIMENSIONS (L x W x H)  5597 x 5265 x 3370mm
    MACHINE NET WEIGHT 16000kg
    POWER REQUIREMENTS
    Voltage 220(V)
    Phase 3
     Cycle 60
    Amps 100(A)
