FADAL VMC 5020AHT – Year 2000

Learn Price

Category:

Description

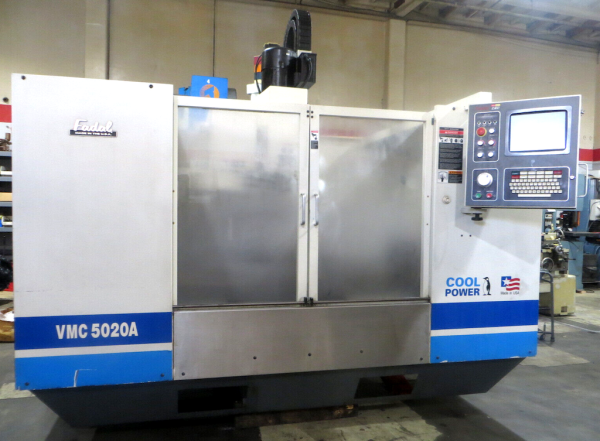

FADAL VMC 5020AHT – Year 2000
CNC VERTICAL MILL


This machine is in good working condition. Made in the USA.
Does not include 5C rotary indexer as pictured.
FEATURES

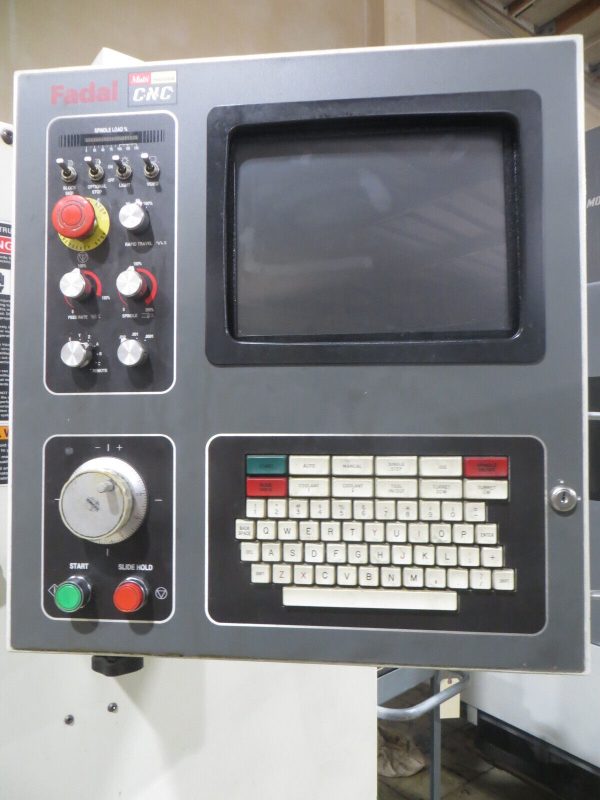

  • Fadal Multi Processor High Speed Control
  • CT-40 Taper

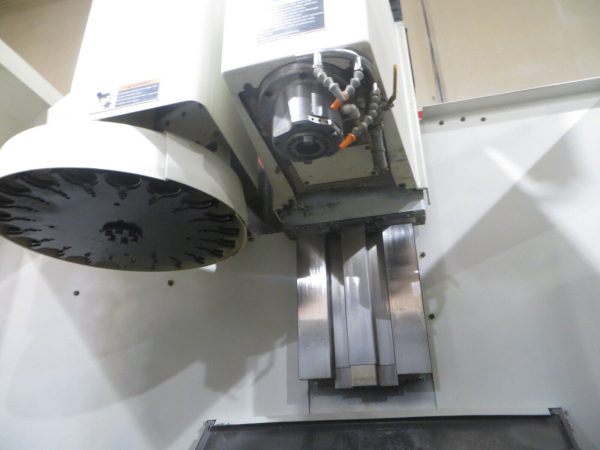

  • 21 Station Turret
  • 10,000 rpm Spindle
  • Built In Work Light
  • Full Enclosure Splash Guards
  • Process Completion Flashing Lamp
  • Automatic Way Lubrication System
  • Graphics

OPTIONAL FEATURES INCLUDED

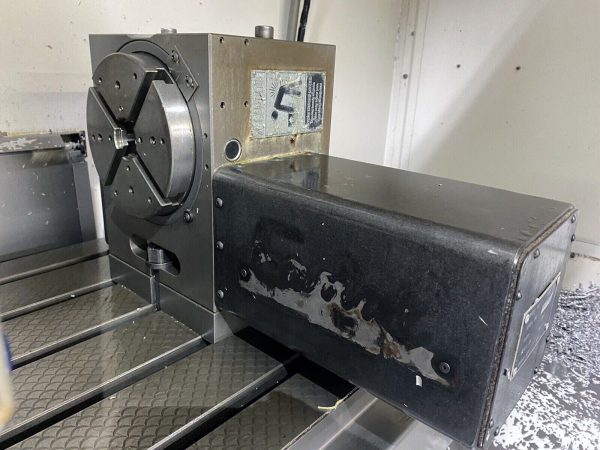

  • Fadal VH-65 (6″) 4th Axis Rotary Table
  • Rigid Tapping

SPECIFICATIONS

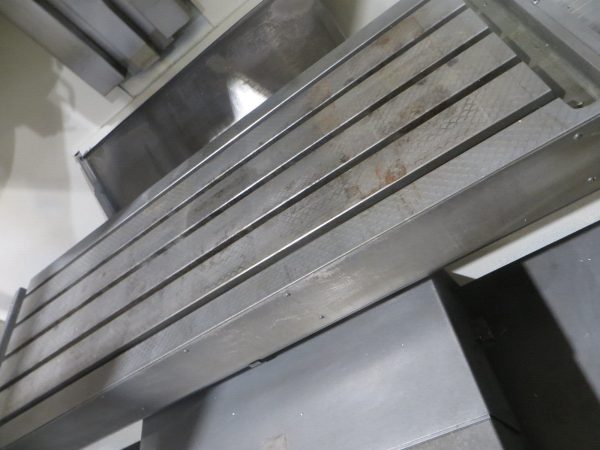

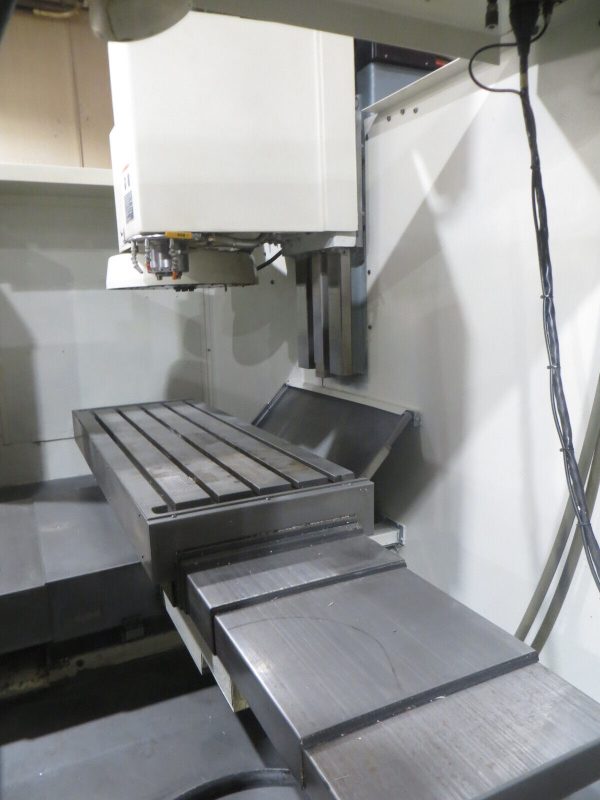

Table Size 58″ x 20″
Floor to Table Surface 35″
T-Slots (No. x Width) 5 x 0.687″ x 3.75″
Cutting Feed Rate (X/Y/Z) 0.01 to 400 ipm (600 @ 150%)
Rapid Feed Rate (X/Y/Z) 900(X/Y) 700(Z) ipm
Maximum Weight on Table 1,000 lbs
Axis Drive Motor (X/Y/Z) 3,800 lbs. thrust
Ball Screw Size 40mm dia. (X/Y/Z)
Longitudinal Travel (X-Axis) 50″
Cross Travel 20″
Vertical Travel 20″
Spindle Nose to Table 4″ – 24″
Spindle Center to Column 20″
Main Motor 22.5 HP, 11kW
Spindle Speeds 10,000 rpm
Spindle Taper CT-40
Number of Tools 21 ATC
Max. Tool Diameter 3″
Max. Tool Length 15″
Max. Tool Weight 15 lbs
Machine Floor Space Dimensions 116″ x 87″
Machine Height 114″

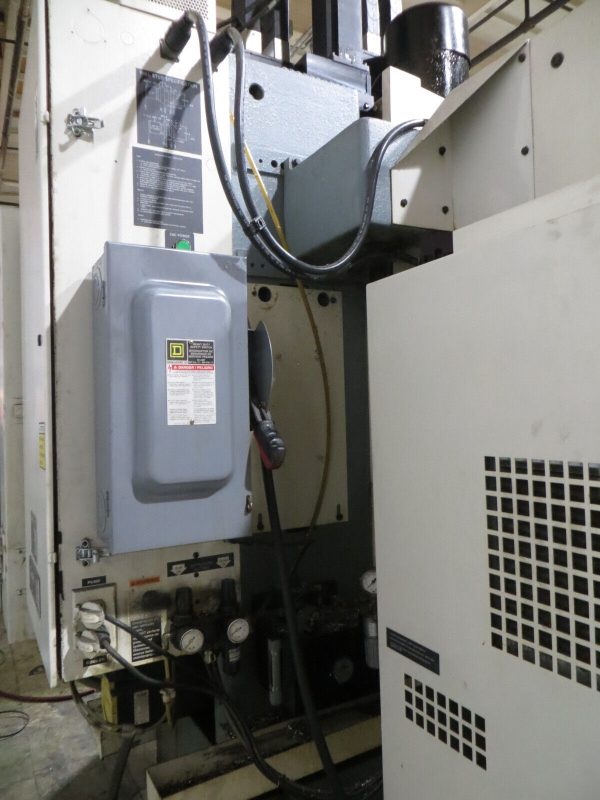

Air Pressure Requiered 80 – 120 psi, 15 scfm

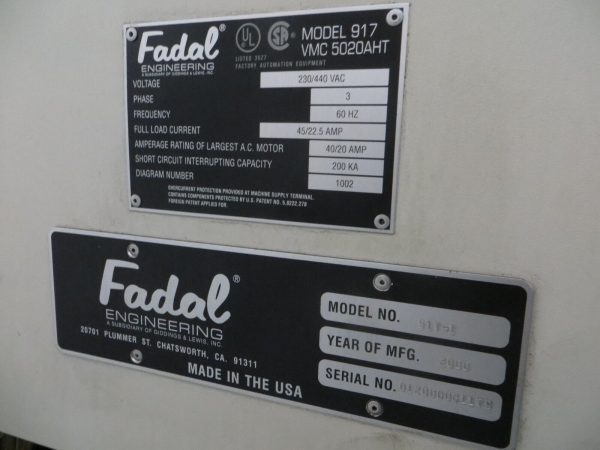

Power 45 Amps, 230/440 VAC, 3-Phase
