Description

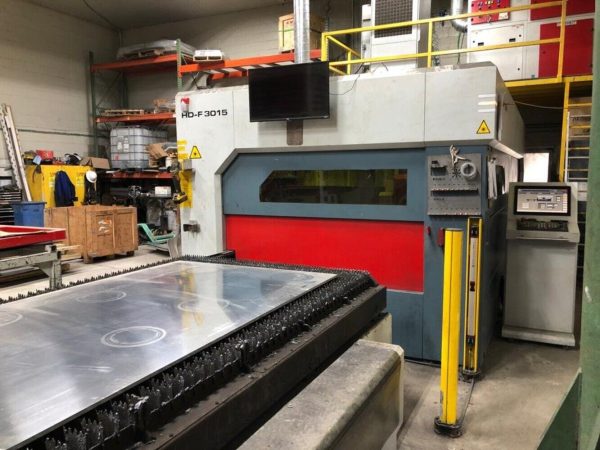

Durma HD-F 3015 – Year 2019
Fiber Laser
Laser power: 8000 Watt YLS IPG Laser Source
Max. thickness – mild steel: 0.98″ / 25 mm
Max. thickness – stainless steel: 0.59″ / 15 mm
Max. thickness – aluminium: 0.79″ / 20 mm
Max. Application Range – Copper: 0.47″ / 12 mm
Max. Application Range – Brass: 0.55″ / 14 mm
Cutting area: 0.12″ x 0.06″ (3.060 mm x 1.530 mm)
X-axis: 10′ / 3060 mm
Y-axis: 5′ / 1530 mm
Z-Axis: 0.55′ / 160 mm
Max. Sheet size: 120″ x 60″ (3048 mm x 1524 mm)
Max. sheet weight: 40.96 lb/ft² (200 kg/m²)
Max speed x-axes: 120 (HD-FL 160 m/min) m/min
Max speed y-axes: 120 (HD-FL 160 m/min) m/min
Max. speed simultaneous: 170 (HD-FL 226 m/min) m/min
Max. acceleration: 28 (HD-FL 35 m/s²) m/s²
Positioning accuracy: +/- 0,05 (HD-FL +/- 0,03 mm) mm
Repeat accuracy: +/- 0,05 (HD-FL +/- 0,03 mm) mm
Total space length U: 0.42″ / 10.75 mm
Total space width G: 0.24″ / 6.21 mm
Length with shuttle table M: 0.37″ / 9.35 mm
Length without suttle table A: 0.24″ / 6 mm
Machine width B: 0.11″ / 2.8 mm
Shuttle table length A1: 0.13″ / 3.35 mm
Shuttle table width B1: 0.06″ / 1.7 mm
Equipped with:
ProCutter 2.0 F200 laser cutting head
Sinumerik 840D Siemens Controler
Rack & Pinion motion system
Dual Shuttle table
Dust collector
IPG Chiller
Safety guards
CSA Approved
Laser On Hours: 8,800
Entire IPG unit and chiller were replaced in 2020 to upgrade from 6000 Watt to 8000 Watt.
Cutting head has been replaced in December 2021 and it is brand new Procutter 2.0 F200.
