Description

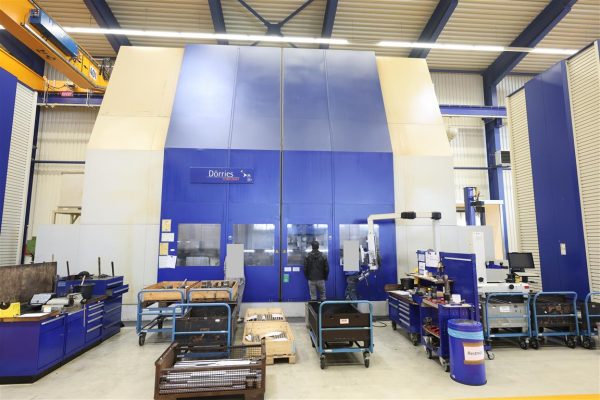

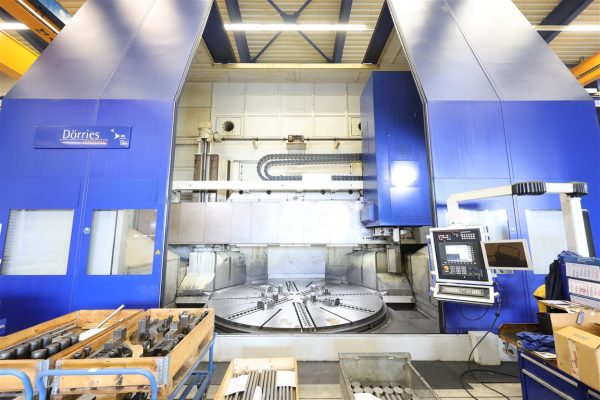

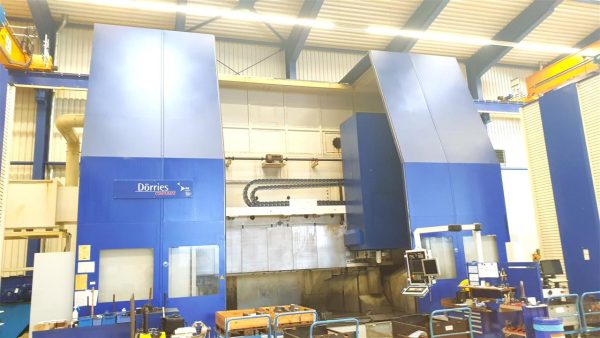

Dörries Scharmann VC 5000 – Year 2009
Make | DÖRRIES-SCHARMANN |
Type | VC 5000 MC |
New in | 2009 |
Control | CNC SIEMENS 840 D |
Technical Details | |

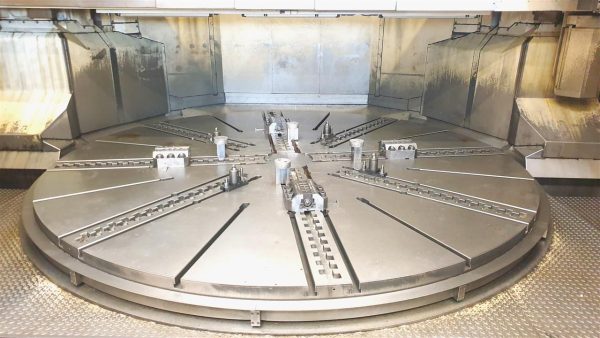

faceplate diameter | 4500 mm |
swing diameter | 5000 mm |
turning height | 2645 mm |
cross rail adjustment – vertical | 1500 mm |

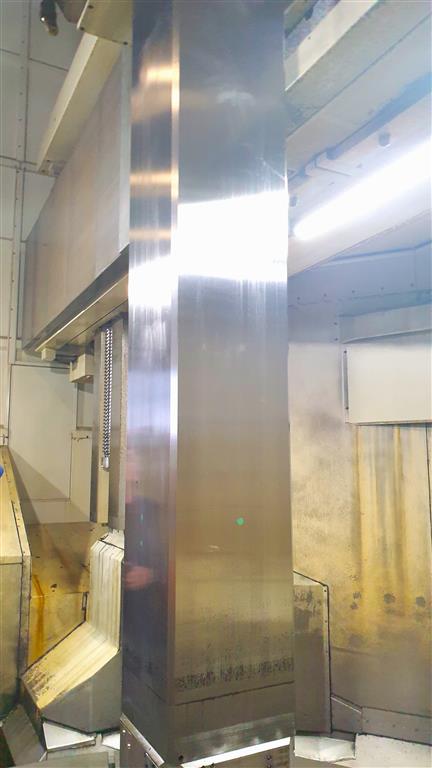

max. ram stroke | 2000 mm |
ram head dimension | 300 x 300 mm |
faceplate turning speed range | 0,4 – 95 U/min |
main drive | 2 x 80 kW |
workpiece weight | 80000 kg |
weight of the machine ca. | t |
total power requirement | kW |
dimensions of the machine ca. | m |
Information | |

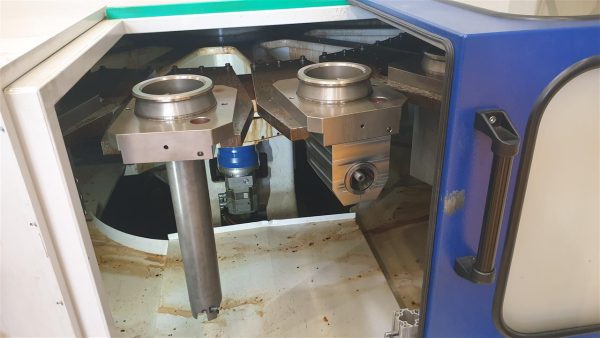

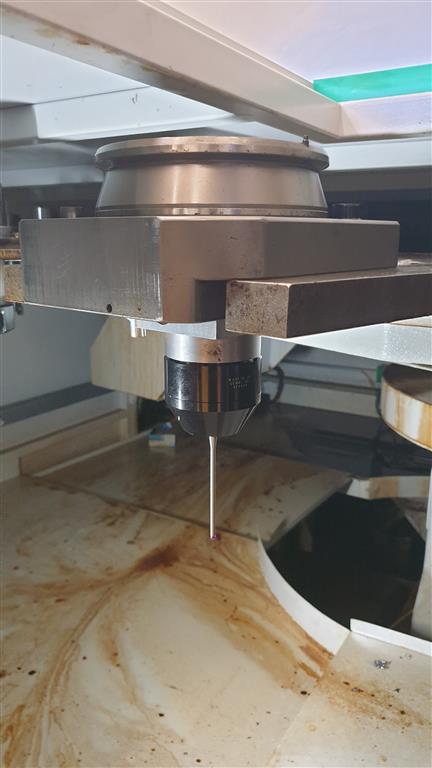

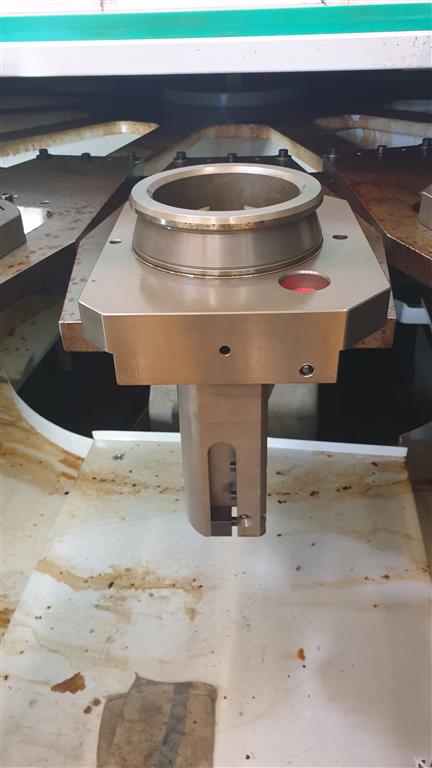

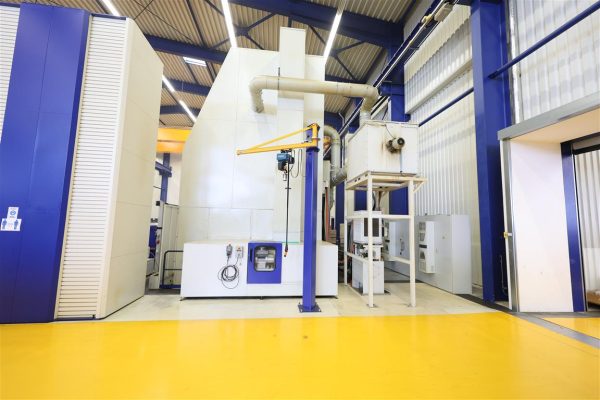

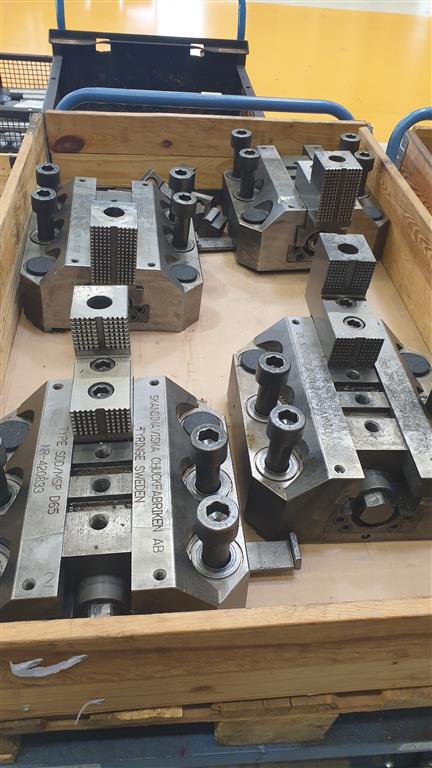

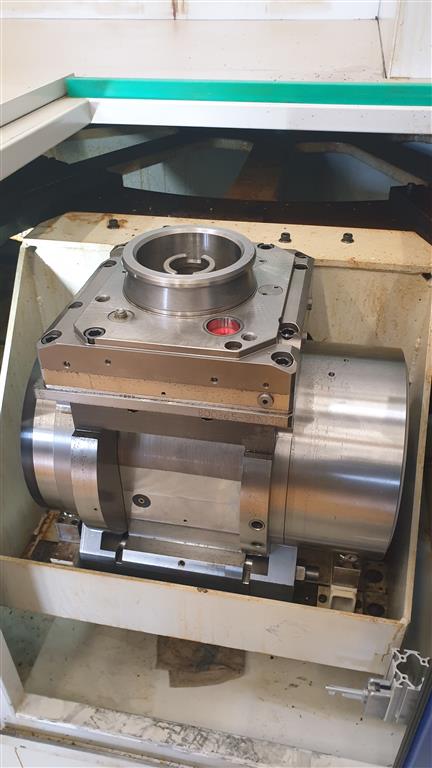

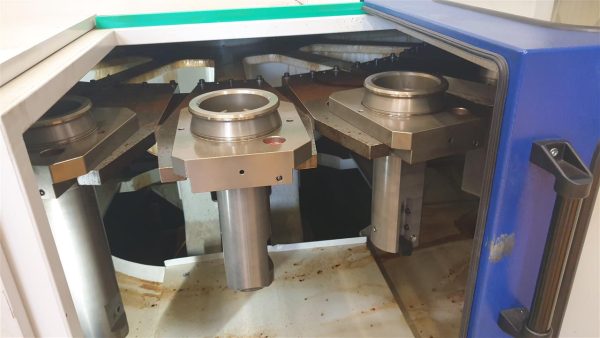

CNC SIEMENS 840 D C-axis driven tooling HSK 100 , 37 kW 3000 rpm. hydrostatic linear guideways UWFK Milling Head 500 Nm +/- 90°, tool and component measuring probe tool and process monitoring ARTIS CTM-System videocamera tool magazine ( positioned on the floor ) for turning and milling tools and stations for Milling Heads complete closed working area protection coolant attachment with filtering unit, swarf conveyor diverse toolholders |
