Description

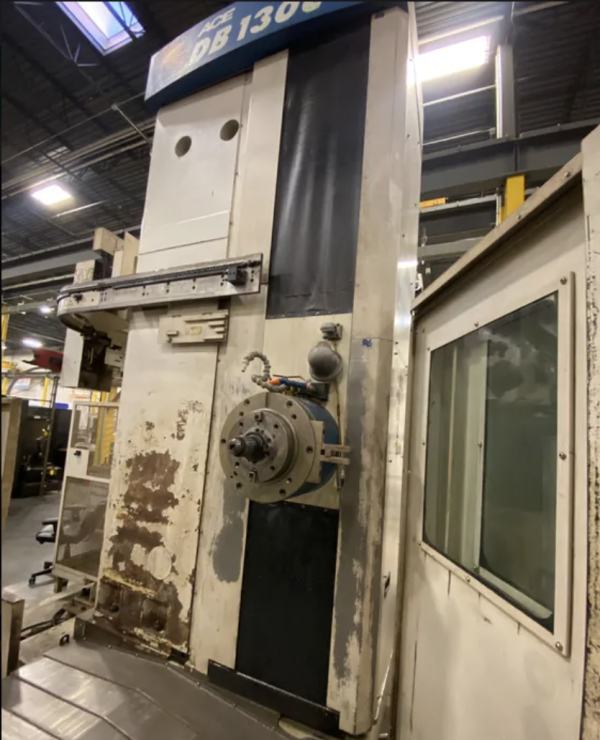

DOOSAN ACE-DB 130 CNC Table Type Boring Machine 3 Meters – Year 2007

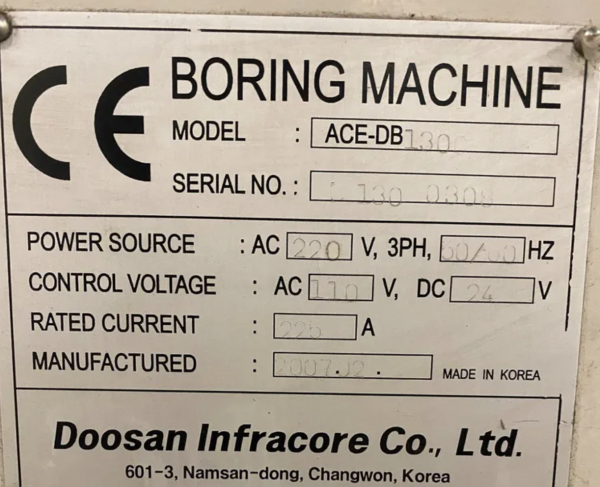

Manufacturer: DOOSAN
Model: ACE DB130C
Year: 2007
Travel:
X-Axis (Table Longitudinal) 118.1″
Y-Axis (Spindle Vertical) 78.7″
Z-Axis Travel (Table/Column Cross) 63″
W-Axis (Spindle Axial) 27.6″
Distane From Spindle Center to Table Top 0 to 78.7″

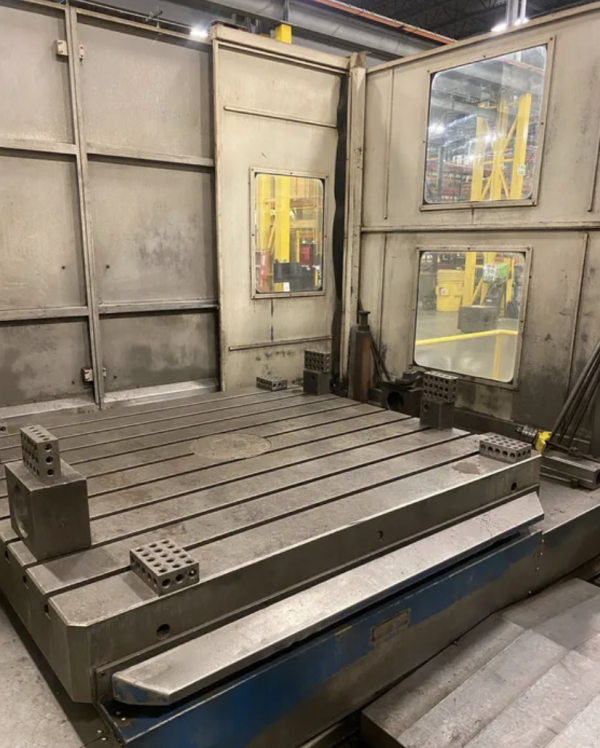

Table:
Table Size 63″ x 70.9″
Table Loading Capacity 33,000 Lbs
Index Degree (ByRotary Table & Indexing Pin) 90 Degrees
Continuous B-Axis Rotary Indexing 0.001 Degree

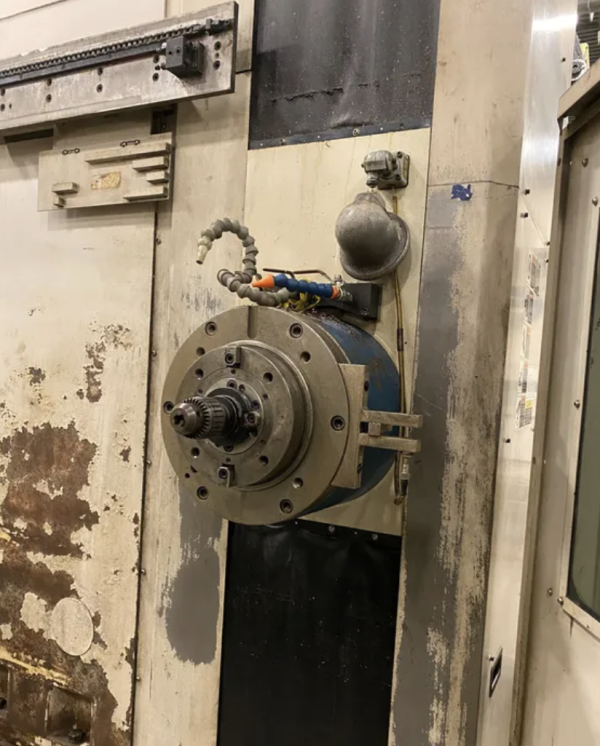

Spindle:
Maximum spindle Speed 2,500 RPM
Spindle Taper Cat-50
Boring Spindle Diameter 5.12″
Spindle Motor 35 HP

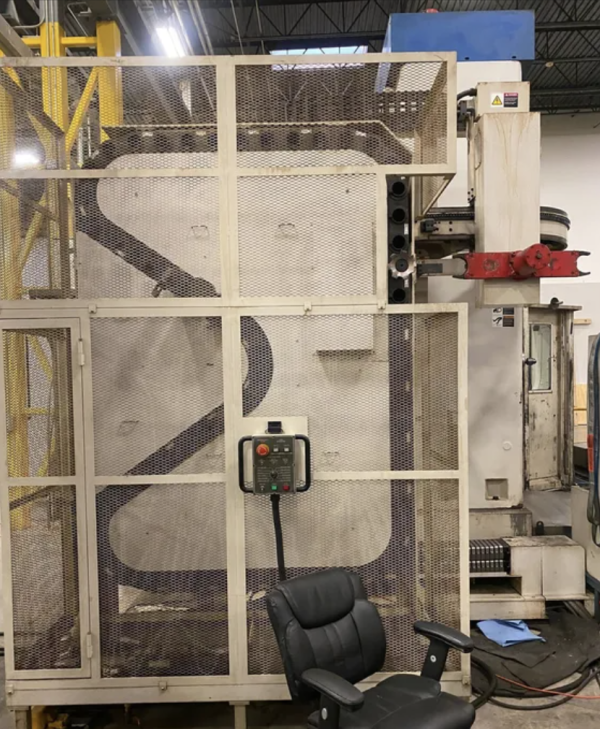

Tool Changer Capacity 60 tools
Approximate Machine Size: 181″ H, 264″ L, 311″ W
Approximate Machine Weight 75,000 Lbs
Equipped With

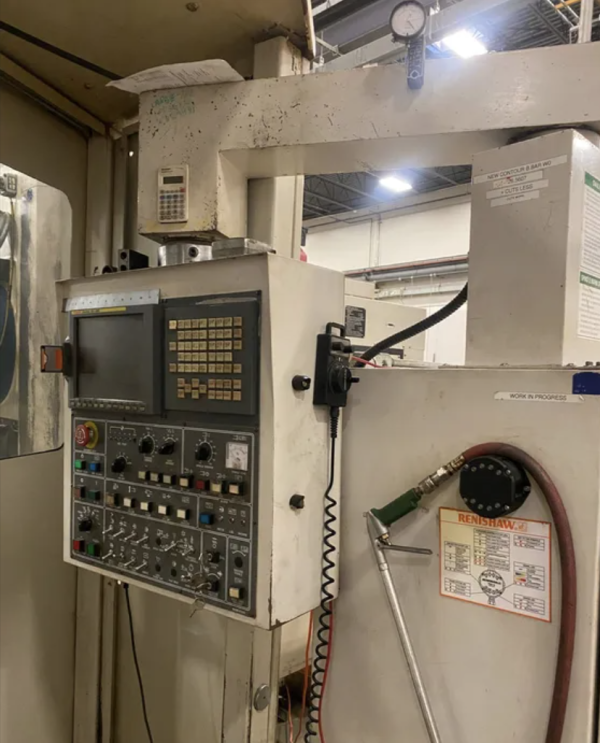

Fanuc 18i-M CNC Control
LNS Chip Conveyor
Coolant Through The Spindle
Full Table Enclosure
Inspect Under Power
Call for Pre-Removal Savings
