Description

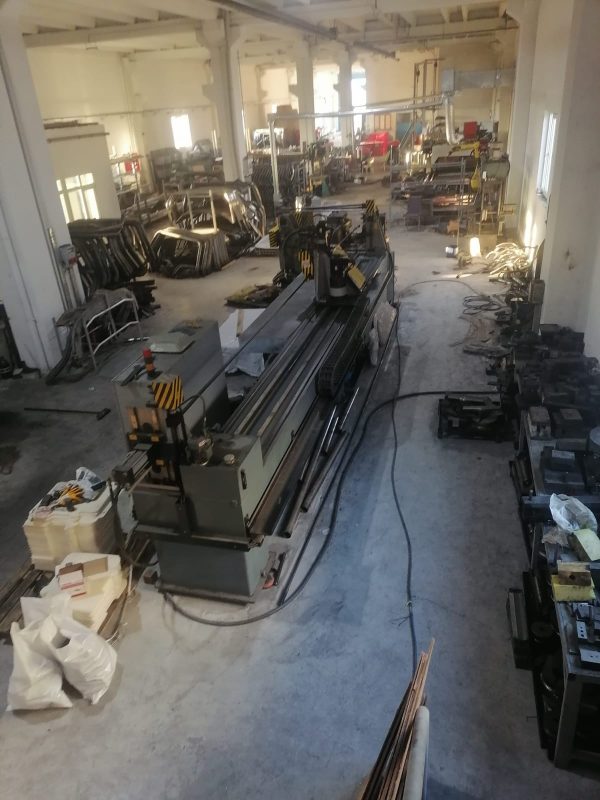

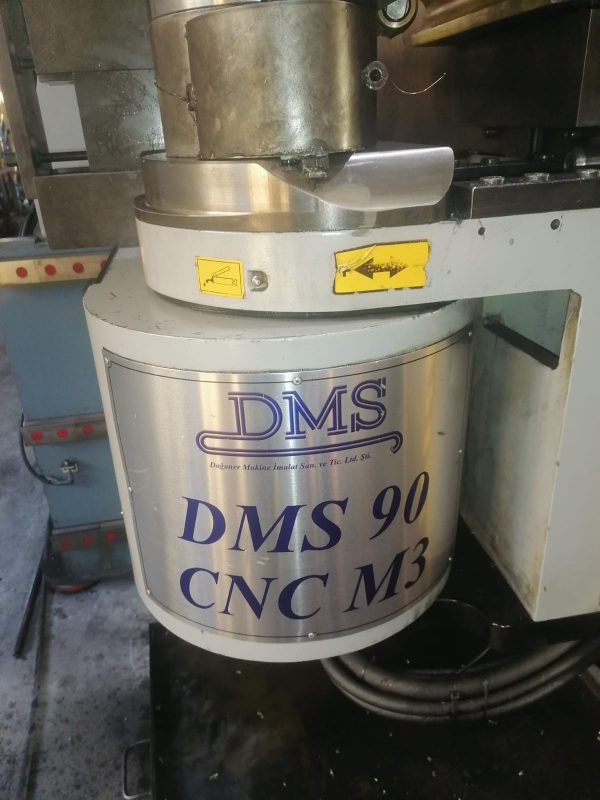

DMS 90 CNC M3 Tube and Profile Bending Machine – Year 2019
Brand : Doğaner Makine İmalat San. DMS
Model : 90 CNC M3
Made in Türkiye
Y.O.M.:2019
Max. tube length | 6000 mm |
Max. tube Ø | 90 mm |
DMS 90 CNC M3 Tube and Profile Bending Machine
Max. Tube Outside Diameter: Ø90 mm
Max. Wall Thickness: 4 mm
Max.Bending Radius: 300 mm
6 meter pipe loading capacity
Pipe cutting system
STEP IGES drawing program
Rolling system
Many tools are included
Manufacturer Catalogue Information about DMS 90 CNC M3 Tube and Profile Bending Machine :

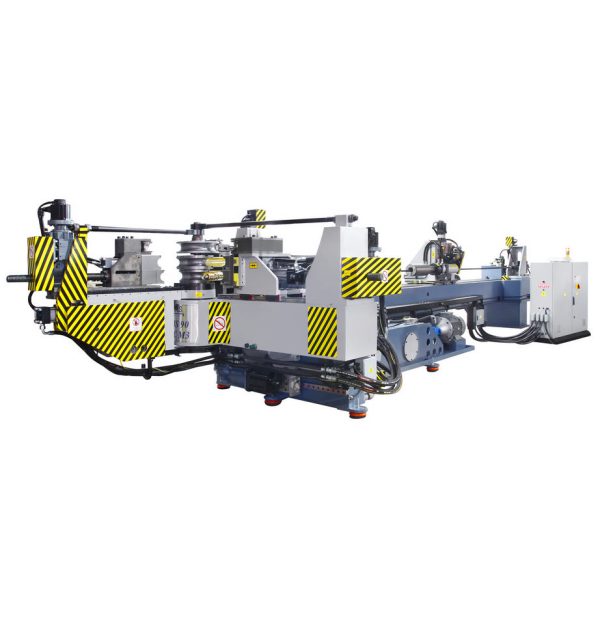

DMS 90 CNC M3
- CNC Tube Bending Machine
- Max. Tube Outside Diameter: Ø90 mm
- Max. Wall Thickness: 4 mm
- Max.Bending Radius: 300 mm
- The Ability To Bending With 3 Different Radius On The Same Pipe
- Cutting Feature
- Rolling Feature
- 9 Axes Are SERVO Controlled
- Electronics Systems 19″ Touch – Screen Lcd Panel
- 3D Simulation
- 3D Preview Feature Of Bending Tube
- The Ability To Make Program From 3D Drawing
- The record programmes on the memory
- DMS Software is compatible with a wide variety of CAD software’s (Autocad, Solid Works) and is able to automatically download most used extensions such as .step,.igs )
