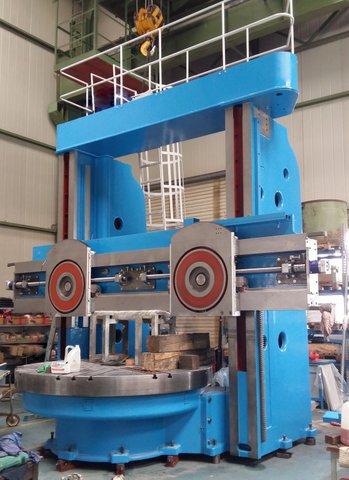

Čkd Blansko SK 25 A – CNC Vertical Lathe Double Column
| Plate diameter | 2400 mm |
| Working height | 1600 mm |
| CNC type | SINUMERIK 840D sl |
| Max piece weight | 10000 kg |
| Overhauled | yes |
| CNC Vertical Lathe Double Column | |
| Length x width x height | 11000.0 × 7000.0 × 7000.0 |
| Weight | 50000 kg |
PARAMETERS OF THE SURFACE
Max. Workpiece diameter [mm] 2 600
Max workpiece height [mm] 1 600
Max workpiece weight [kg] 10,000
TABLE
Diameter [mm] 2 400
Maximum table load [kg] 10,000
Maximum speed [min-1] 117
Maximum torque [kNm] 64
Power output of the main drive [kW] 80
FRAME
Beam crossing [mm] 1 400
Crossbar travel speed [mm.min-1] 525
SUPPORT RIGHT
Axis travel “X” (cross beam support) [mm] 1 600
Travel of the “Z” axis (slider extension) [mm] 1 000
Feed rate (“X” and “Z”) [mm.min-1] 1 – 6,000
Rapid traverse [mm.min-1] 6,000
Cross section [mm] 200 x 200
Maximum Cutting Strength [kN] 70
SUPPORT LEFT
Travel of the “U” axis (cross beam support) [mm] 1 600
Travel of the “V” axis (slider extension) [mm] 1 000
Feed rate (“U” and “V”) [mm.min-1] 1 – 6,000
Rapid traverse [mm.min-1] 6,000
Cross section [mm] 200 x 200
Maximum Cutting Strength [kN] 70
DIMENSIONS OF THE MACHINE
Height of the machine above the floor (at the highest cross beam position) [mm] 7000
Machine length [mm] 11,000
Machine Width [mm] 7000
Machine weight [kg] 50,000
Dimensions are only indicative, depending on the specific machine specification and the customer’s situation.
THE SCOPE OF MODERNIZATION
Mechanical part
• Machining (milling, grinding) and manual scraping of the guide surfaces of the racks and the crosspiece into geometric accuracy, repairing any damage
• Sanding of slides
• Machine alignment of crosspiece, racks and support racks for installing new axle drives and linear metering
• Placing the crosspiece guides on the rack, slide racks, racks, rails, wedges and wedges with sliding material, machining, scraping
• Machining of the surface of the clamping plate will be carried out when the machine is brought to life on the machine itself
• Replacement of all bearings and seals in the gearbox of the table drive and gearbox gearboxes
• Revision of the table drive gear (repair or replacement of damaged gears not included in the tender)
• Repaired vices
• New trapezoidal screws and crossbar lifting nuts
• New X and U axle drives (cross beam support) and Z and V (slider extension) with ball screws
• New X, U, V, and Z drive mount brackets
• New gearless gearboxes for X, U, V and Z axis drives. The existing gears will be dismantled.
• Replace cross bar blocking
• Replace the knife holders
• New cover of the cross-section guides with telescopic covers
• New energy chains
• New wipers for wipers
• Complete replacement of hydraulic components and distribution system including machine
• New wiring and lubrication elements including the unit
• New grease trapezoidal screw lubrication grease lifting bolt
• Protective covers of the workspace
• Paint the machine
Electrical equipment:
• RITTAL electrical switchgear with electrical equipment;
• Control system SIEMENS SINUMERIK 840D sl, language version Czech;
• The RITTAL control panel on the base of the machine will be mounted on a swivel arm;
• New auxiliary control panel miniBHG Siemens;
• Chuck plate drive – Repairs to existing DC motor or new SIEMENS 1PH8 engine;
• Chuck plate drive – SIEMENS SINAMICS S120 AC drive;
• Speed measuring of the clamping plate – incremental rotary speed sensor;
• Linear metering of axes
• Machine axis travel – SIEMENS AC servomotors;
• Drive axle drives – AC drive SIEMENS SINAMICS S120;
• New PLCs;
• Checking, possibly repairing asynchronous motors;
• New limit switches;
• New workspace lighting;
• Complete new wiring on the machine;
• New machine cabling;
Price by agreement.
