Year of manufacture: 2012
4 axial execution;
Moving along the axes:
x: 800 mm;
y: 520 mm;
z: 630 mm with variable level of tool change;
a: 360 deg.

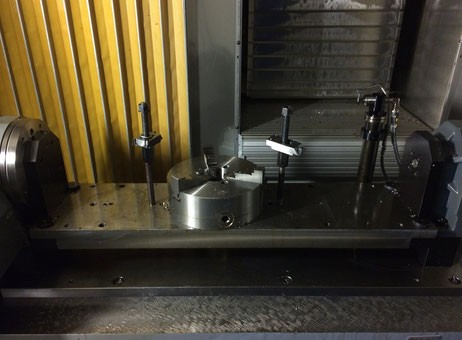

Axis “A” – table-swings;
Number of tool places: 20;
Max. Tool diameter: 65 mm;
Max. diameter of the tool at free adjacent places: 180 mm;
Tool weight: 5 kg. max. (max 8 kg in 4 places);
High speed: 40 m / min;
Spindle rotation speed: 10,500 rpm;
Automated tool binding system.
Automated system for determining the position of the workpiece in the working space of the machine.
Control system Siemens Sinumerik 840D.
