Description

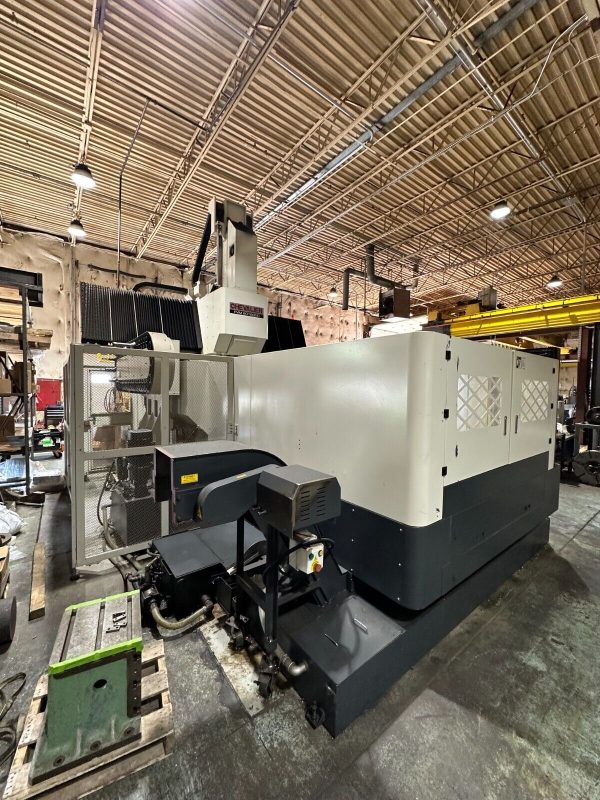

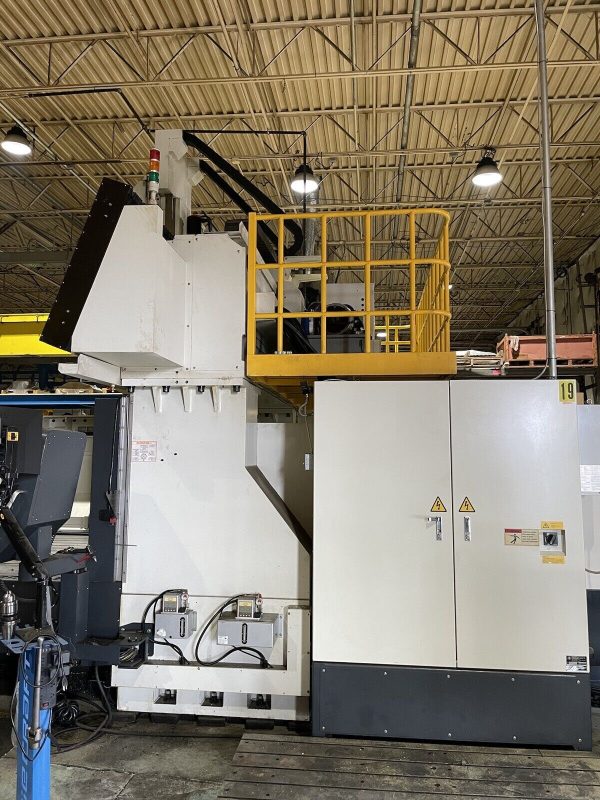

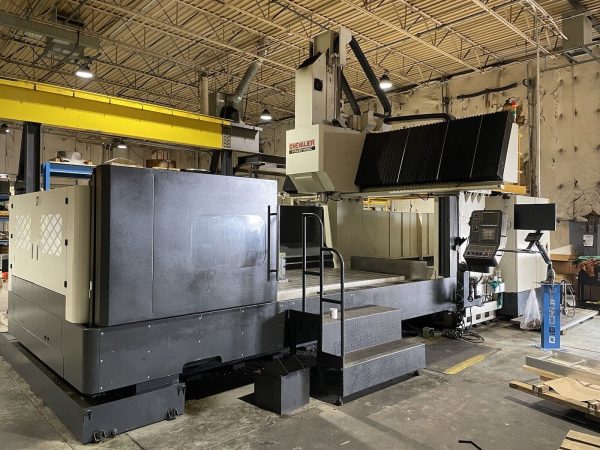

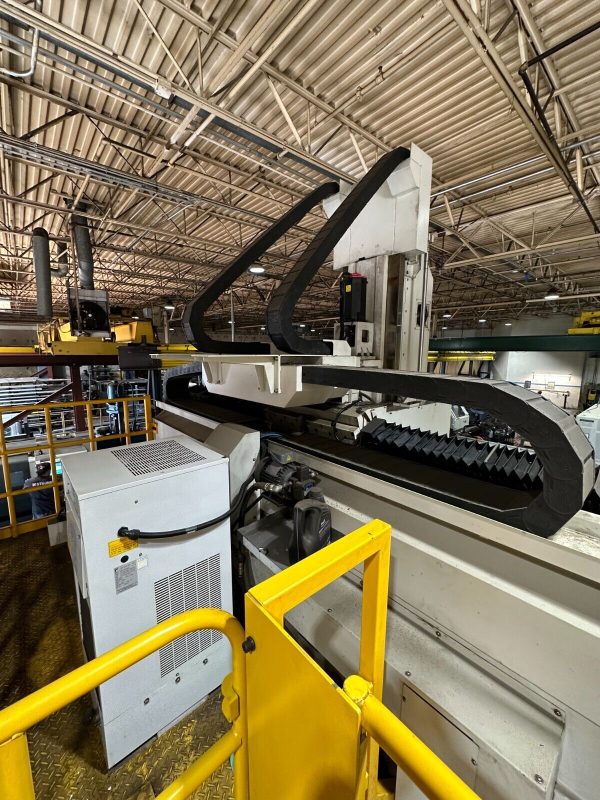

Chevalier FVM-80160DC CNC Bridge Mill – Year 2016
CNC Double Column Vertical Machining Center 4 Meters
Excellent Condition Only 1480 Cutting Time Hours
Fanuc Oi-MD Control

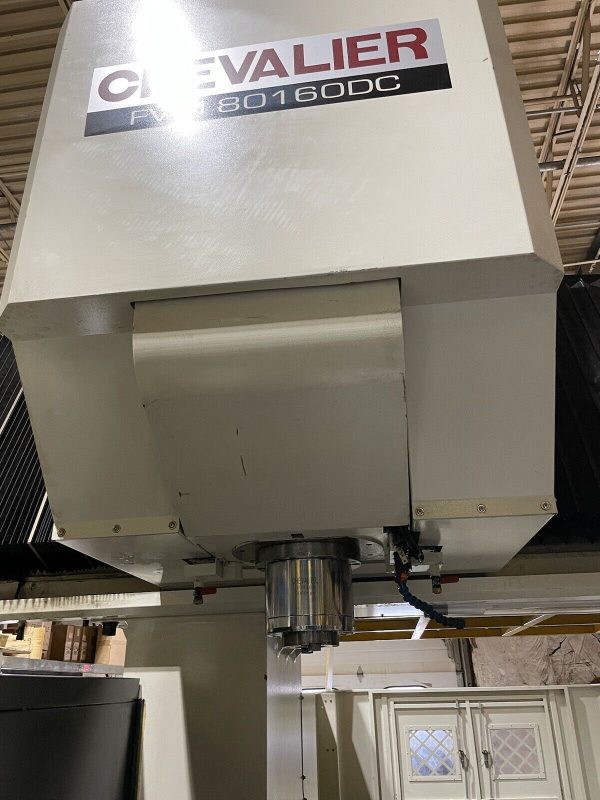

6,000 RPM 2-Speed Gearbox
Cat-50
157.4″ X-Axis Travel
74.8″ Y-Axis Travel
39.3″ Z-Axis Travel

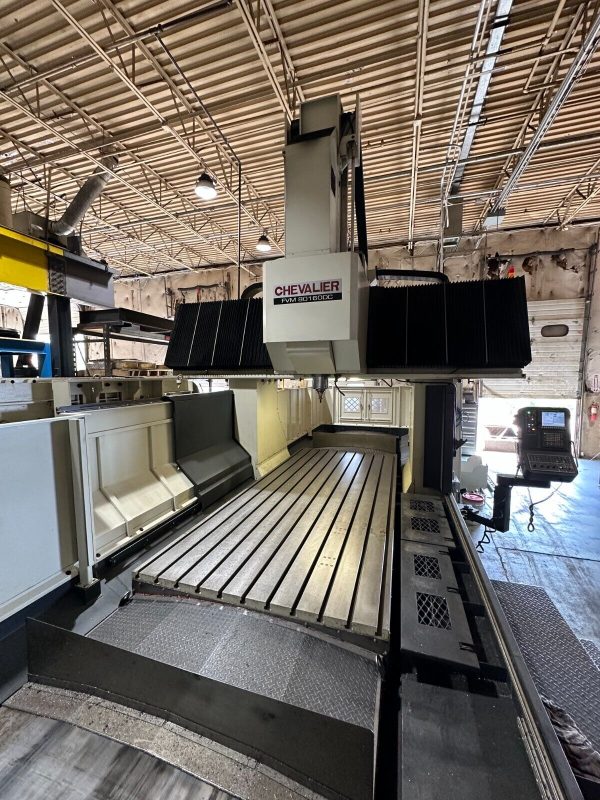

165.3″ x 70.8″ Table Size
86.6″ Distance Between Columns

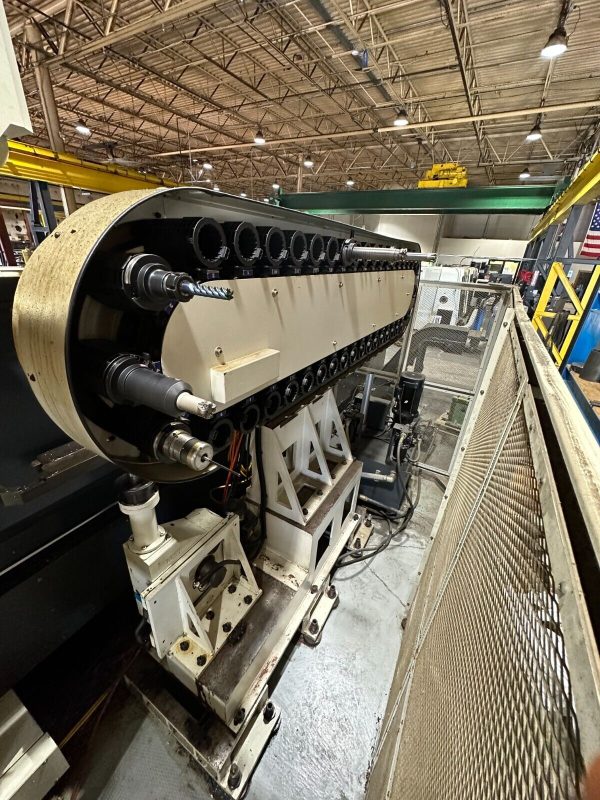

40 Station Automatic Tool Changer
Renishaw RMP600 Probe (INSP Plus Software) & GIS Calibration Kit
High Pressure Through Spindle Coolant 400 psi
3 Section Door Option (Larger Opening)
2 MB Fanuc Expanded Memory (ATA KIT-2GB Card and Ethernet Software with Data Server Editing)
Oil Skimmer
Cartridge Type Coolant Filter
Spindle Nose to Table-Top 9.4″ – 48.8″
Rapid Traverse: X-Axis 393 ipm, Y-Axis 393 ipm, Z-Axis 472 ipm
35 HP Motor (Upgraded HP Option)
Table Load of up to 44,000 lbs.
Chip Conveyor
Coolant Tank and Pump

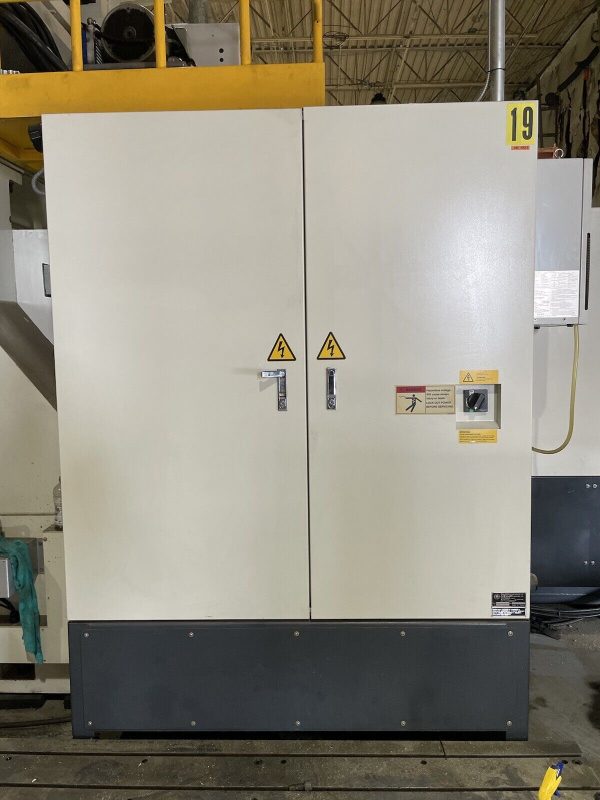

UL Approved for California (Electrical)

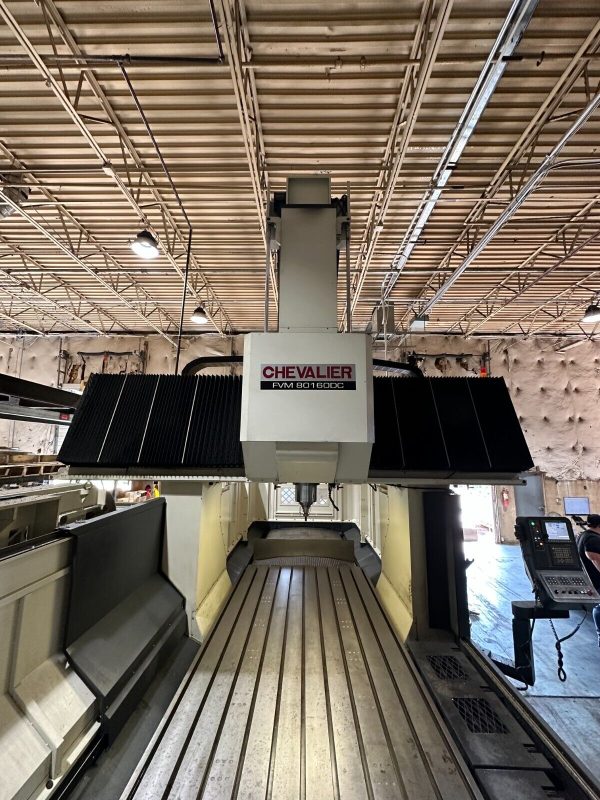

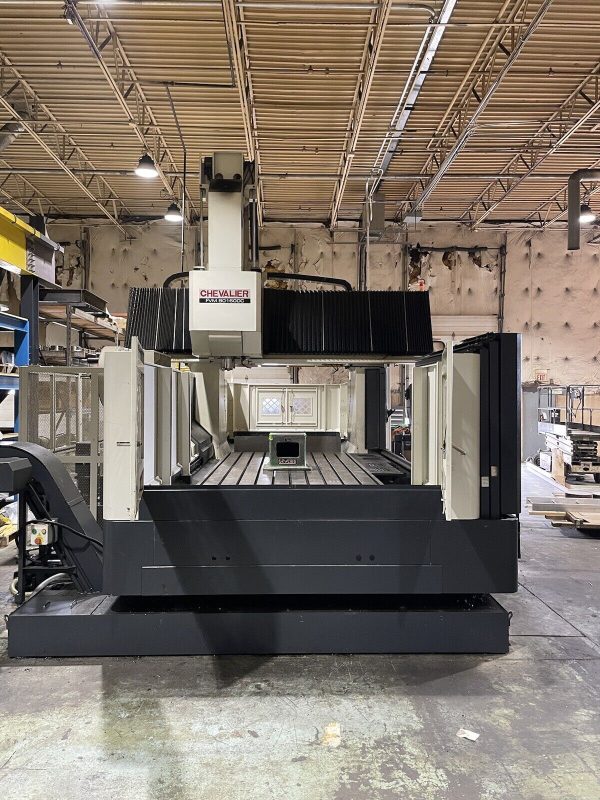

Chevalier FVM-80160DC CNC Bridge Mill is a low hours machine that has been very well taken care of.
Please note when viewing the pictures, all paint is original – absolutely no touch up or repaint has ever been done. The paint under the spindle and in front of the tool changer (high chip impact / wear areas) is original and beautiful. I can provide additional information as requested, including a recent ball bar test (March 2023) and videos showing the axis traverse and spindle at various rpm’s.
All operate smoothly and quietly. Machine has the desirable Renishaw RMP600 Probe that does NOT require line of sight from the receiver to the probe, allowing you to probe parts on any side – even when hidden from direct view of the receiver.
This machine also has the factory upgraded door option that opens the entire front left side for part loading and better access to the table ($… factory option). Lastly, we upgraded the system memory to 2MB for those large contouring programs.
We are selling this machine as our business needs have changed and we just are not using this as much as we should. High quality machine at a nice discount from new pricing. Machine is in our Die Craft shop
