Description

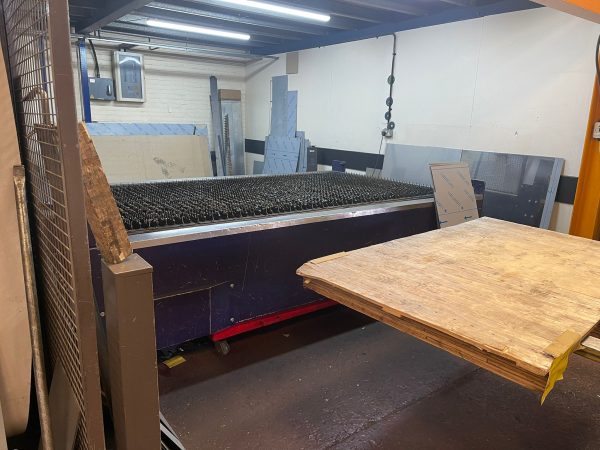

Bystronic BySprint Fibre 3015 – Year 2013
CNC Laser Cutting Machine
Metal length | 3000 mm |
Power | 3000 W |
Metal width | 1500 mm |
Type | Fiber |
Option to cut tubes | no |
Max thickness | 20 mm |
CNC | yes |
Bystronic BySprint Fibre 3015 | |
Travel X | 3000 mm |
Travel Y | 1500 mm |
Travel Z | 70 mm |
Max weight of the workpiece | 890 kg |
3000 mm x 15000 mm
70mm Z
Fibre 3000
Steel 20 mm
Stainless steel 12 mm
Aluminium 12 mm
Brass 6 m
Copper 6 mm
Max sheet weigh 890 kg
Max electric consumption of the total system 21.4kW

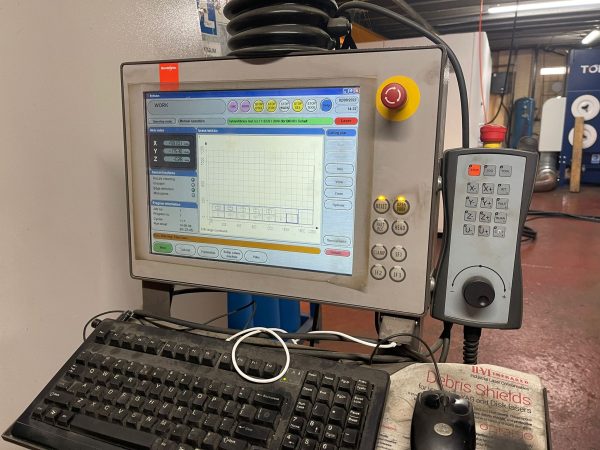

15″ touch screen ByVision standard
Automatic shuttle tables with light guard protection
Water Chillier
Dust extraction
Installed 2013
Full service history
