Bronx CTL Cut To Length 3.2mm – Year 1990

Learn Price

Categories: , ,

Description

Bronx CTL  – Year 1990
Cut To Length 3.2mm

Type Cut to length
Thickness of coil plate 3.2 mm
Line speed 90 m/min
Coil weight 25000 kg
Internal diameter 508 mm
External diameter 2100 mm

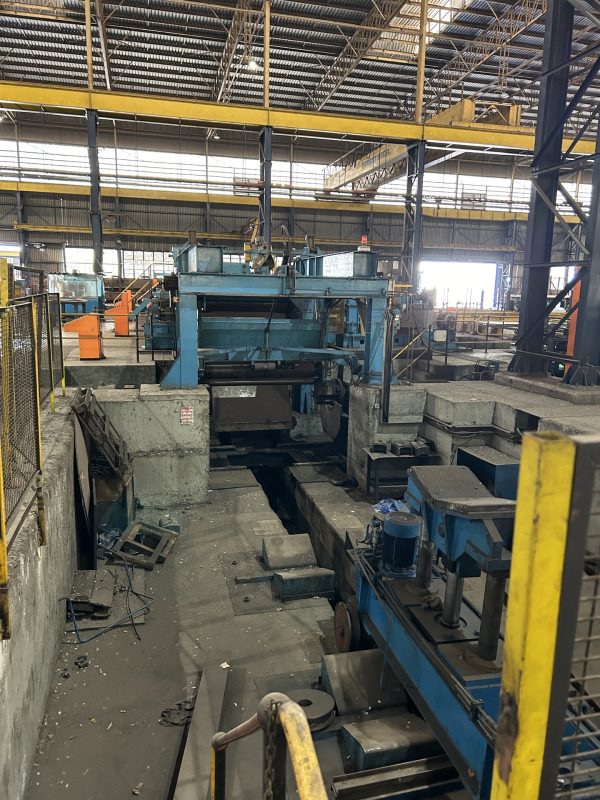

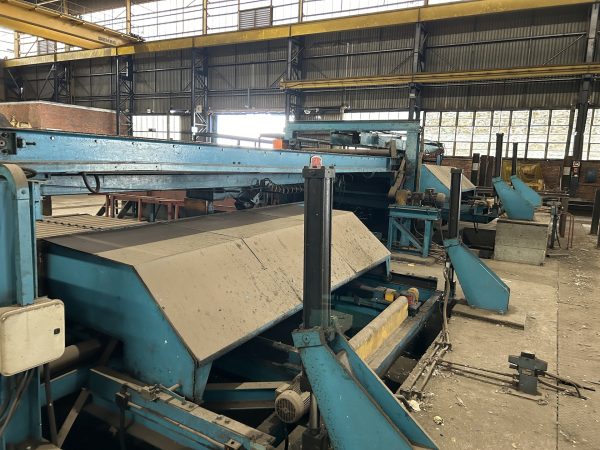

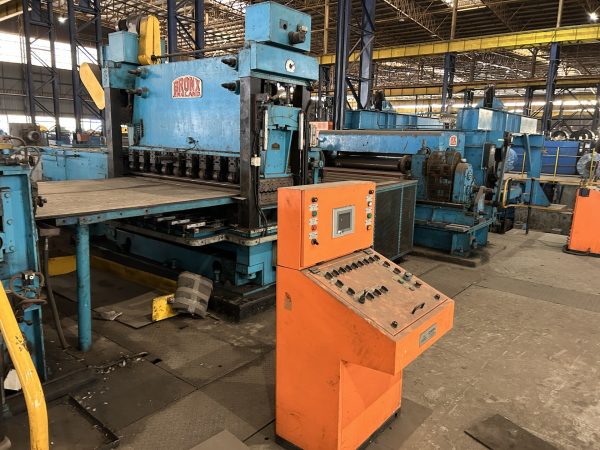

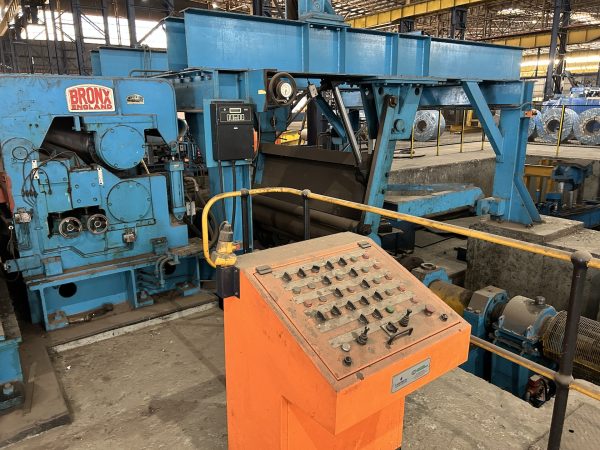

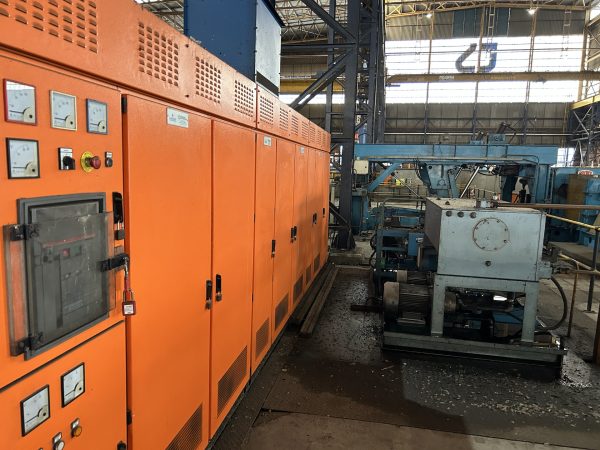

Bronx Cut-To-Length
under power
Coil car
Double head uncoiler
Pinch roll
Edge trimmer
Leveller
Scrap Baller
Feeder

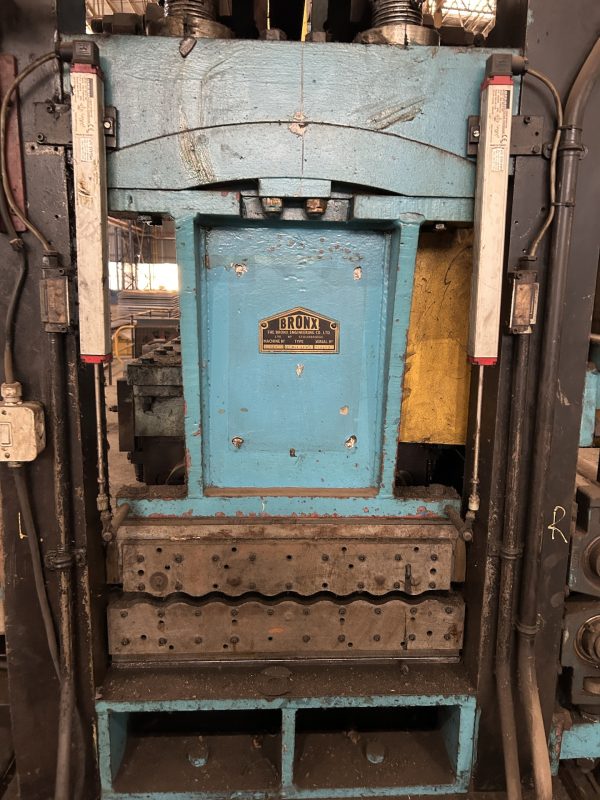

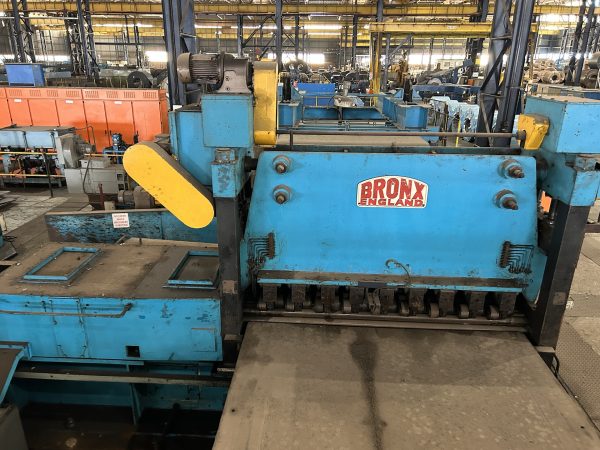

Shear
Run out conveyor

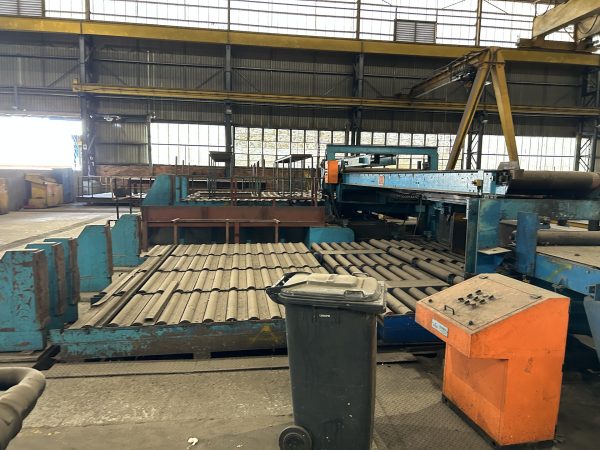

Double Stacker

Material:

Product Quality:
Hot rolled Mild Steel Cold rolled Mild Steel Galvanised

Surface condition and coating:

Strip Material Strength

Yield Strength Minimum N/A Maximum

35kg/mm 2
Yield Limit N/A N/A
Shear Strenght N/A 50kgms/mm 2
Elongation N/A N/A
Strip Width 600mm 2000mm
Strip Thickness 0.5mm 3.2mm
Steel Flatness N/A
Coil Dimensions
Coil Weight Minimum

N/A

 Maximum

25000kg
760mm
Coil Outer Diameter N/A 2100mm
Coil Inner Diameter 508mm 610mm 760mm
with filler segments
Decoiling strip tension N/A
Strip Thickness
Minimum Maximum Material Yield Stress Shear Stress
N/A N/A N/A N/A N/A
N/A N/A N/A N/A N/A
Slitting Capacity
Minimum Maximum
Edge Trim Width N/A N/A
N/A N/A
Edge Trim Tolerance N/A N/A
N/A N/A

Sheet and Stacking Capacity

Minimum Sheet Length Stacker 1 600mm Sheet Length Stacker 2 600mm

Scrap Length N/A

Maximum 4500mm 6000mm

N/A

400mm min with assistance 400mm min with assistance

Stacking Capacity 1 x 8000mm long x 2000mm wide packs

Stacking

5000kg maximum uniformly distributed

Pack Height

N/A N/A N/A

600mm N/A N/A

Including Pallet

Line Speeds
Minimum Maximum
Coil Carraige N/A N/A
Infeed N/A 10m/min
Leveller 0m/min 90m/min
N/A N/A
Roll Feed 0m/min 120m/min
Shear Rate 0Cuts/min 60Cuts/min
Exit Conveyor/Stacker 0m/min 150m/min
Stacker rollways N/A N/A
Line Speed 0m/min 90m/min
0m/min 60m/min With Processor Roll

Shear Capabilities

Minimum

Maximum

Cutting length

250mm

4500mm

Cutting Speeds Cut Length(mm) Cuts/min Leveller Speed (m/min)
600mm 60 36
1000mm 51 51
2000mm 33 66
3000mm 27 81
4000mm 22 88
4500mm 20 90
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
Lenght Tolerance
Standard deviation as per DIN 55302
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A

Squareness
