Description

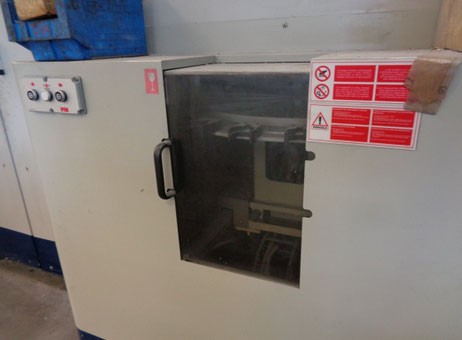

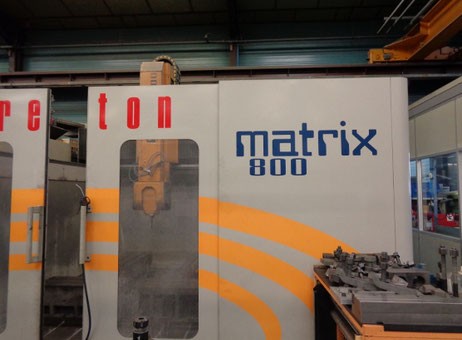

BRETON MATRIX 800 – Year 2000
X Axis | 2000 mm |
---|---|
Y Axis | 1600 mm |
Z Axis | 800 mm |
CNC type | FIDIA |
Max. spindle speed | 16000 rpm |
Spindle motor power | 20 kW |
Overhauled | no |
Length x width x height | 4798.0 × 3300.0 × 4300.0 |
Weight | 12500 kg |
Worked hours | 7500 hours |
CNC 5 axes: FIDIA
X / Y / Z races: 2000 x 1600 x 800 mm
C axis rotation head: 0 – 360 °
Axis with head rotation: +/- 105 °
Fast movement speed X-Y axis: 40 m / min
Fast movement speed Z axis: 20 m / min
Acceleration X / Y / Z axes: 2.5 m / s2
Tool changer: 24 positions
Tool type: HSK 63A
Power pin: 20 kw
Spindle rotation speed: 16,000 rpm
Machine weight: 12500 kg
Machine Dimension: 4798 x 3300 x 4300 mm
