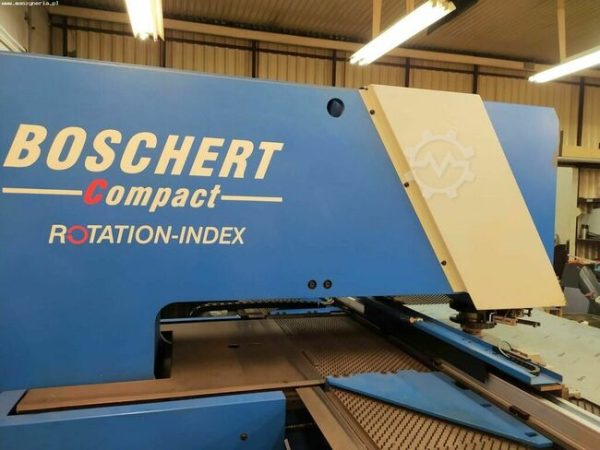

The punching machine BOSCHERT COMPACT 1000 X 2000 ROTATION REVOTOOL was built in 2007. The machine enables punching, nibbling and stamping.
The punching machine is offered with the REVOTOOL 6 six-tool head.
Punching machine technical parameters:
CNC control: LABOD
punching force: 28 tons
sheet size: X = 2000 mm, Y = 1000 mm
maximum thickness, stainless steel: 4 mm
maximum thickness, ordinary steel: 6 mm
maximum thickness, aluminum: 8 mm
maximum height of the jump: 90 mm
tool head, single tool: max fi 105 mm
binding: REVOTOOL 6
quick tool change system: TRUMPF
positioning speed: 30 m / min.
accuracy: 0.05 mm
automatic claws holding the plate
table covered with brushes
waste suction device for cutting
engine power: 20 kVA
hydraulic oil: 115 l
dimensions of the machine (height x width x depth): 1900 x 4000 x 3300 mm
weight: 8900 kg
We offer the REVOTOOL 8 head and REVOTOOL tools for the BOSCHERT COMPACT 1000 punching machine for an additional fee.
