Description
Beyeler P 110×3100 – Year 1998
CNC Press brake
| Strength | 110 T |
| Folding length | 3100 mm |
| Distance between uprights | 2600 mm |
| CNC | Multi Axis CNC Controller |
| Vertical stroke | 150 mm |
| Axis number | 4 |
| Motor power | 7.5 kW |
| Beyeler P 110×3100 | |
| Length x width x height | 1250.0 × 3300.0 × 2400.0 |
Producer Beyeler
Model P 110×3100
Year of production mod 1998
Press force 110 tons
Bending length 3100 mm
Distance between columns 2600 mm
Cut-out in the body 305 mm
Ground clearance 370 mm
150 mm ram stroke
Number of axes 4
Mechanical bumper
Bumper distance 800 mm
Foot controls
Dwell time 110 ms
Working stop 261 bar
Main engine power 7.5 kW
Power supply 400 V
Total width 3300 mm
Total depth 1250 mm
Total height 2400 mm
The hydraulic press brake is a four-axis machine designed for precise sheet metal bending. The press ensures efficient work and can be used in many industrial sectors and production companies. The structure of the machine is made of high-quality materials that ensure long-term and safe operation of the machine, and the body is fully welded. The machine is equipped with an automatic die setting system.

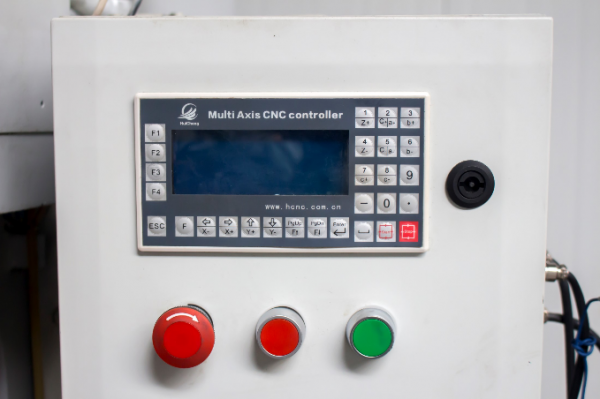

Standard equipment: Multi Axis CNC Controller, set of tools, foot pedal, bumper, boom height indicator, die setting system.
It is possible to obtain a certificate of entry into service (declaration of conformity).
