Description

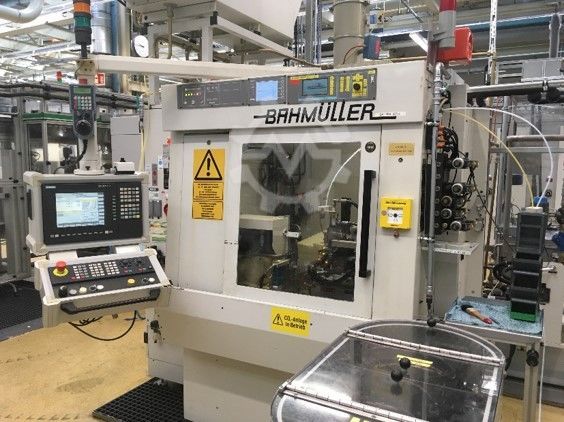

Bahmüller B24-3 CNC
Year of manufacture 2001
Technical data
Grinding spindle speed / number of (m / s) 1x 45
Working area grinding wheel (grindg.wheel øx x w x bore)
[mm] X 200 / Z 300 ø 406 x 40 x 127
Speed range workpiece spindle [1 / min] 0 – 1500
Max. Workpiece ø / length (max. Ø / length of workpiece) [mm] 50/200
Tailstock / fitting taper [-] No.
Dressing spindle type / rpm (rpm) No.
MAE dimensions LxWxH [MAE only] (MAE-dim. L x W x H, only MAE) [mm] 5410 x 3890 x 2000
MAE weight
[kg] 4000
Special features ready for use
Periphery
Control unit Siemens 840 D
Measuring / balancing system (Type) (measurement system / type) Movomatic / Dittel HBA4000
Central extraction systems
Automation intern (internal automation) No
Automation extern (external automation) Vibrator Feeder
Special chuck
