Açıklama
| Axis X | 2600 mm |
|---|---|
| Axis Y | 1000 mm |
| Axis Z | 950 mm |
| Type | Vertical |
| Type | Continuous |
| CNC | Heidenhain iTNC530 |
| Table length | 2200 mm |
| Table width | 700 mm |
| Max. part weight | 3000 kg |
| Spindle taper | SK 40 |
| Max. spindle speed | 10000 rpm |
| Worked hours | 22010 hours |
year of manufacture 2014
Continuous control in 5 axes

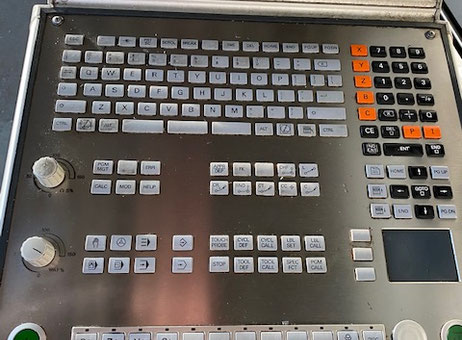

Control system: Heidenhain iTNC530
Vehicles:
– X axis: 2 600mm
– Y axis: 1,000mm
– Z axis: 950mm
– C axis – integrated NC rotary table diameter 800mm
– axis B – spindle tilting +/- 100 °
Fast forward: 40m / min
Fixed table with integrated NC rotary table: 2,200 x 700mm
Load capacity of the turntable: 500kg
Load capacity of the fixed table: 3,000 kg
Spindle taper: SK40
Spindle speed: 20 – 10,000 rpm
The machine has a dividing partition, which can be used to divide the working space into two parts and can function as a double pallet – in one part machining can take place and in the other it is possible to prepare the workpiece for machining. There is a program on each side. By removing the partition, one large workspace is easily regained.
Automatic chip removal
Exchanger for 36 tools
disassembly and loading by agreement
transport of a trailer with an accompanying vehicle
