Description
ATMSOLUTIONS FIBER CNC ATMS 2050×1050 PRO 12kW – Year 2023
Condition : New
Made in Poland
The FIBER CNC ATMS 2050×1050 PRO 12kW laser cutter is a specialized laser machine tool used mainly in heavy industry, in production plants and wherever long-term, trouble-free operation is required.
Construction and technical parameters:
• Construction: rigid, welded, monolithic, self-supporting
• Maximum dimensions of the cut sheet: 2050×1050 mm
• Nozzle clearance: 100 mm
• The work table extends automatically to the unloading zone located outside the machine housing
• system for collecting and removing waste falling below the work table (drawer system)
• Laser source: FIBER 12kW
• Resonator cooling method: cooler

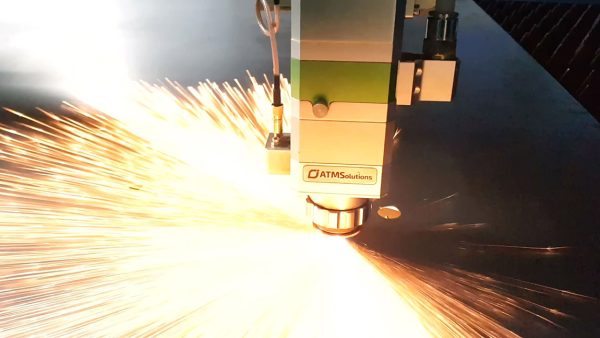

• Cutting head equipped with:
– temperature sensors
– distance sensors (capacitive)
– pressure and humidity sensors in the lens chamber
– nozzle pressure sensor
• Head positioning accuracy: 0.01 mm
• Type of drives (in each axis): magnetic linear drives
• Travel speeds:
– in the X axis: 180 m/min
– in the Y axis: 180 m/min
– in the Z axis: 70 m/min
• The drive control system ensures minimization of energy consumption through the ability to recover energy from the drive that performs braking in order to transfer this energy to drives that perform acceleration in another axis of the machine
• Measuring system, designed to determine the position of the cutting head for the needs of the control system, made on the basis of optical encoders cooperating with scales with absolute reading
• Controls: Mitsubishi
• CAD/CAM/CNC design software
• The control system provides, among others:
– automatic sheet position detection and adjustment of the tool path to its position;
– the ability to engrave inscriptions on cut details using a laser beam;
– control of the working parameters of the cutting head (e.g. temperature, pressure, humidity) in order to protect it against damage;
– automatic calibration of the cutting head nozzle height adjustment system;
– implementation of protection of the head against collision with the processed material (e.g. in the event of incorrect positioning of the cut detail or sheet).
• Dust extraction and filtration system fully integrated into the machine
• Operator panel with monitor, keyboard, mouse and USB port
• The machine is adapted for simultaneous supply of oxygen and nitrogen with the possibility of automatic gas type change and pressure adjustment by the operator from the operator’s panel
• Supply pressure: nitrogen: 30 bar, oxygen: 10 bar
• Operating temperature range: from 15ºC to 35ºC
• Machine supply voltage: 3x400V 50Hz
• Air humidity in the room: not more than 80%
• Dimensions of the space necessary to set up the complete machine: 9000x6500x3000 mm
