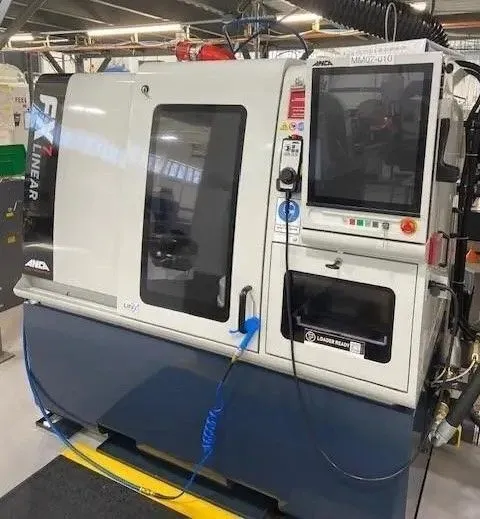

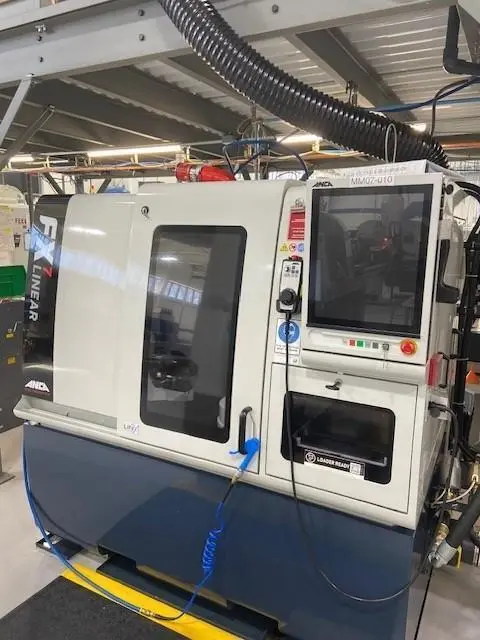

Anca FX7 Linear Tool & Cutter Grinder – Year 2021

Contact us for price

Categories: , ,

Description

Anca FX7 Linear Tool & Cutter Grinder 8-Axis – Year 2021

# Axis 5
Swing 7.8″
Grinding Wheel Dia. 8″
Power 25.5 hp
Max RPM 10,000 RPM

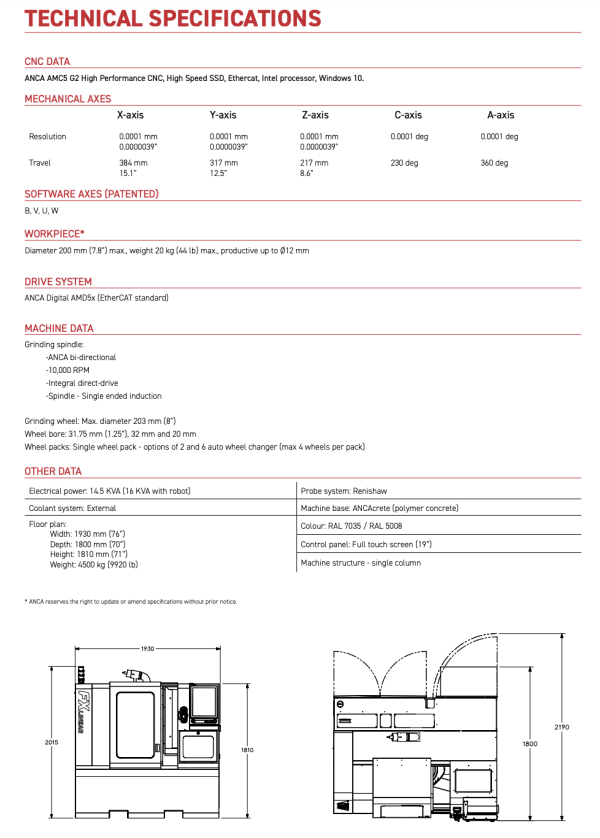

Anca FX7 Linear Tool & Cutter Grinder (2021)
Number of Axes: 8-Axis
X AXIS TRAVEL:: 15.1”
Y AXIS TRAVEL:: 12.5”
Z AXIS TRAVEL:: 8.6”
C AXIS ROTATIONAL TRAVEL:: 230
WORKPIECE DIAMETER:: 7.8”
GRINDING SPINDLE:: 19 kW 25.4 HP
GRINDING SPINDLE RPM RANGE:: 0 to 10,000 RPM
GRINDING SPINDLE TAPER:: HSK40F
SPINDLE TYPE:: SINGLE ENDED INDUCTION
WHEEL PACKS:: 2 x 8” max.
TOOL LENGTH: (VARIABLE BY TOOL DESIGN): 8”

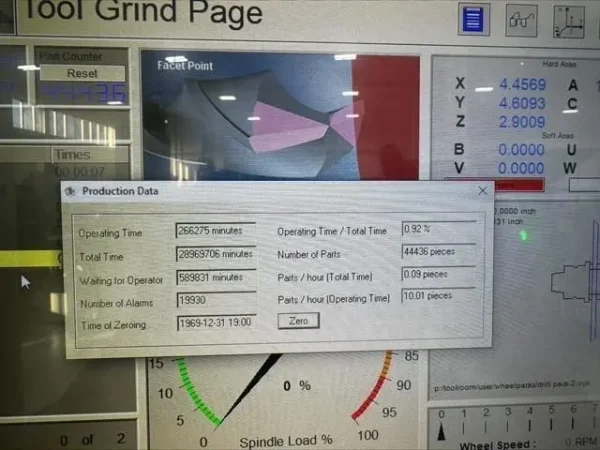

Cut Time in Minutes: 266275 Minutes (4438 Hours)
Electrical Capacity: 16 KVA

Equipped With
(2) Machines Available, 8-Axis, Fanuc Robot Loader, Tool Pallets, Misc. Tooling,
LOADER TYPE: FANUC
The Fanuc Robot Loader is a versatile automation solution that is located completely within the FX Linear machine. It provides automatic tool loading, enabling extended periods of unmanned operation, for maximized productivity.

Can be used to auto-load up to 6 wheel packs & their coolant manifolds • Operator access from front of machine
Does not increase machine footprint
One gripper set for the entire diameter range

Ideal for loading tools Ø2 – 20 mm (1/16” – 3⁄4”)
Tool length range 30 – 250 mm (11⁄4” – 10”)
Double gripper, tool change for load/unload
Loading time of 9 seconds

The pallet capacity ranges from 840 tools with Ø2 mm (1/8”) shank, 520 tools with Ø6 mm (1⁄4”) shank and 96 tools for Ø20 mm (3⁄4”) shan

LINEAR MOTOR DRIVE on X & Y AXES

LINEAR SCALES on X,Y, and Z AXES

ANCA PATENTED SOFTWARE FOR A,V,U,and W AXES

TOUCH SCREEN MONITOR

REMOTE HANDHELD PENDANT

CONFIGURED:

AUTOMATION : PALLET TOP PLATES

AUTOMATION : ROBO TEACH SOFTWARE

WORK HOLDING: PREMIERPLUS PCA W20 COLLET ADAPTER

WORK HOLDING: MISC. SCHAUBIN W20 COLLETS

TOOL SUPPORT: LONG STEADY BED

TOOL SUPPORT: AUTOMATIC POP UP STEADY

WHEEL ARBORS: (8) HSK40F WHEEL ARBORS

DRESSING: AUTOSTICK ONE STATION

MEASUREMENT: AUTO WHEEL QUALIFICATION

COOLANT SYSTEM SOLD SEPERATELY:

MACHINE WAS CONNECTED TO A SHARED EBBCO COOLANT SYSTEM MISC. COOLANT MANIFOLDS

SOFTWARE:

iBalance

AutoStick

ToolRoom-RN34

CIM3D (V9.0)-Full

Auto Commissioning

Complete Tool Runout Compensation

PYROGEN FIRE SUPPRESSION SYSTEM

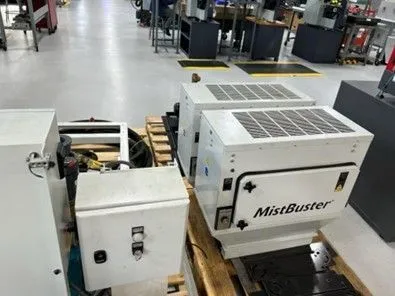

MYST EXTRACTOR

WHEEL & coolant Setup Ring

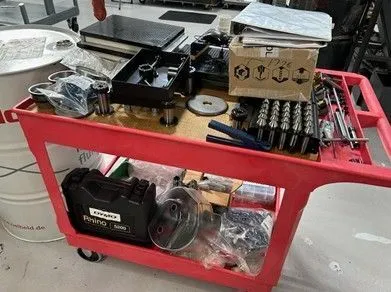

Misc. Tooling for Tool Grinding – Split equally between the two FX7’s

RENISHAW PROBE SYSTEM
SOFTWARE:
– iBalance
– AutoStick
– ToolRoom-RN34
– CIM3D (V9.0)-Full
– Auto Commissioning
– Complete Tool Runout Compensation
