Amada Ensis 3015AJ – Year 2017

Learn Price

Category:

Description

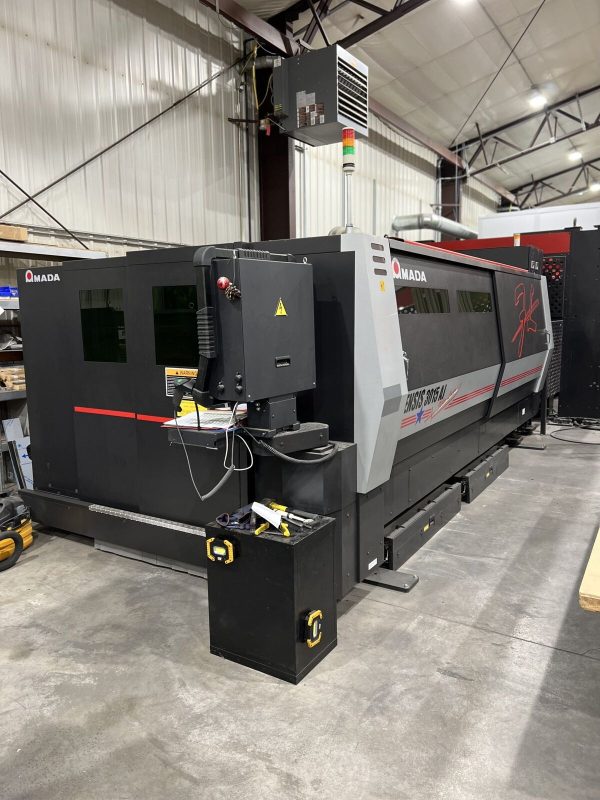

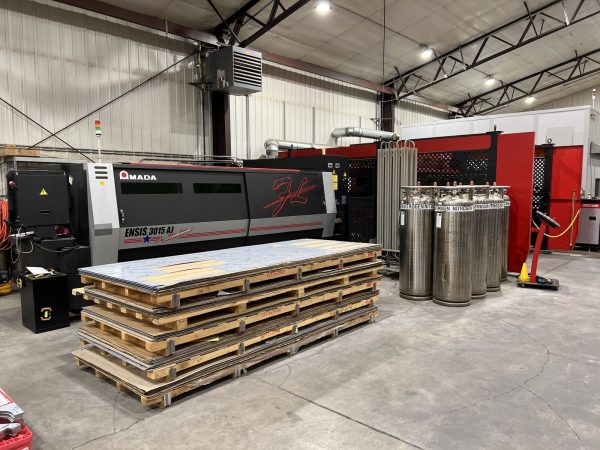

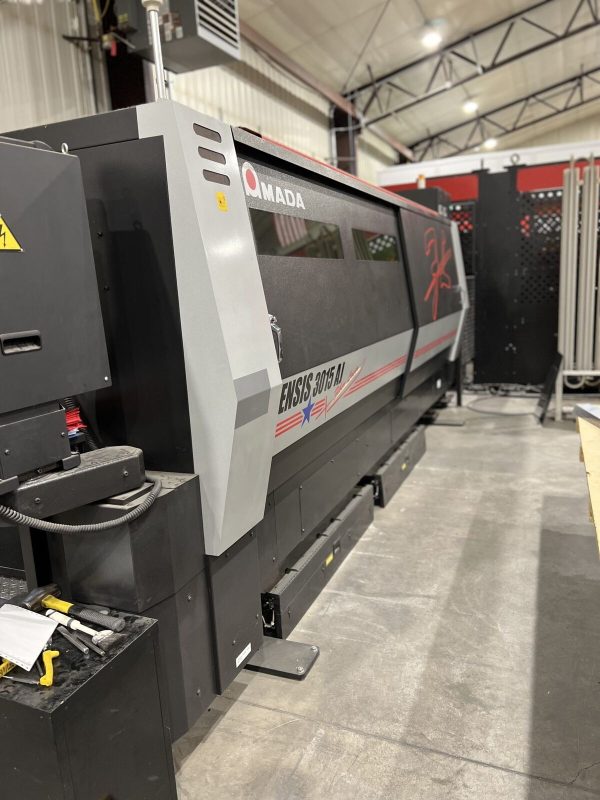

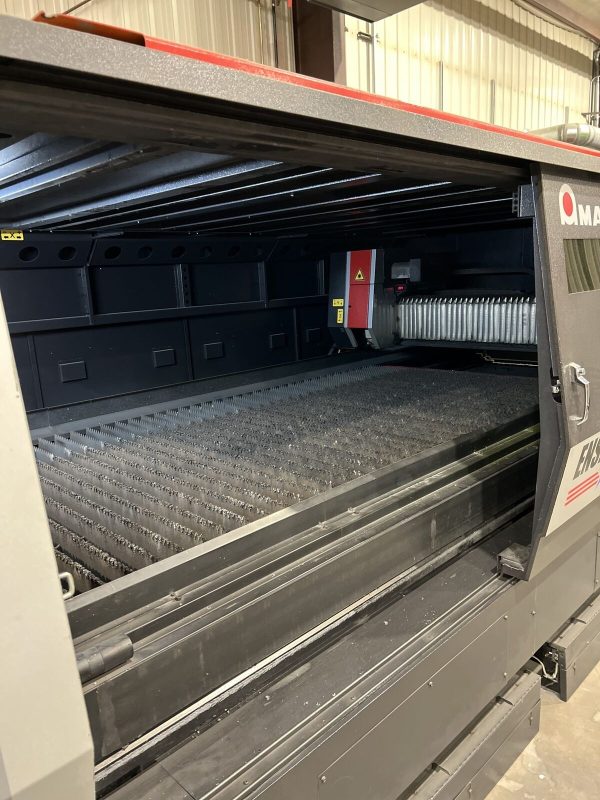

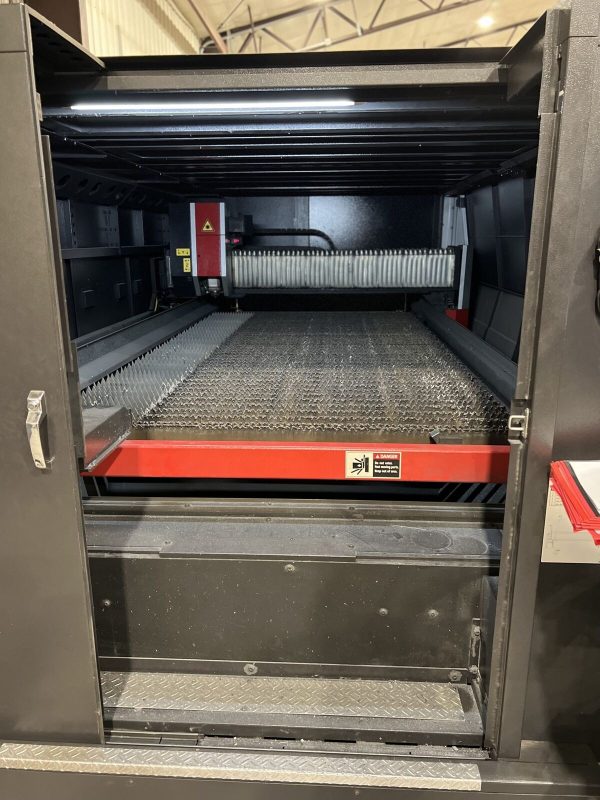

Amada Ensis 3015AJ – Year 2017

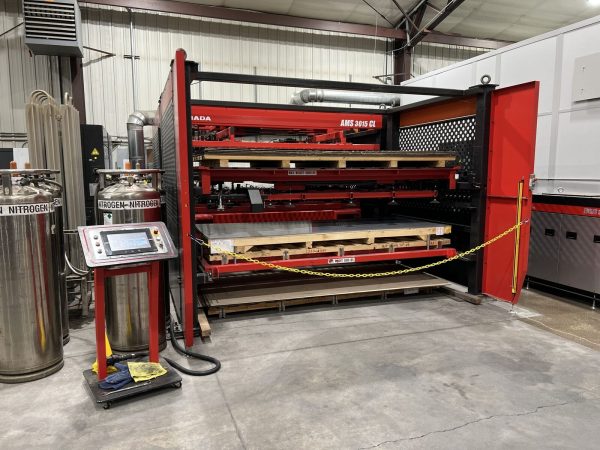

2000 Watt Amada Ensis 3015AJ Fiber Laser, 5’x10′ table with AMS3015CL Automation

Motion Package:
Travel Method: Stationary Table X,Y and Z axis Movement for Cutting Head
Control Method: X,Y and Z Simultaneous 3-Axis Control
Drive Motors: Fanuc AC Servo motors
Maximum Sheet Size (X,Y): 120” x 60”
Maximum Axis Travel (X,Y,Z): 121” x 61” x 3.93”
Maximum Positioning Speed (X,Y)
Per Axis: 4,724 inches per Minute
45 Degree Vector: 6,693 inches per minute
Maximum Speed Z-axis: 4,724 inches per Minute
Repeatability: +/- 0.0002”
Maximum Material Weight: 2,000 lbs.
Maximum Material Thickness
Mild Steel: 0.875”
Stainless Steel: 0.375”
Aluminum: 0.312”
Assist Gas: 4 ports with NC Pressure control
Electrical Requirements: 200V, 3 Phase, 60 Hz

Fiber Laser Resonator (Engine):
Model: AJ2000 with ENSIS Technology
Resonator Style: LD Pumped Yb Fiber
CW Output Power: 2 KW
Peak Pulse Output Power: 2 KW
Power Stability: +/- 2%
Laser Wave Length: 1.08 Microns
Laser Power Model Selection: CW, Gated Pulse (CNC Controlled)
Laser Beam Model Output: Multimode mode
Beam Divergence: or = 41 L/min
Interlocks: Electrical, Mechanical, and Chiller
Electrical requirements: 200V, 3-phase, 60 Hz, 12kVA max.
Electrical Power Consumption: 9KW

Equipped With:
AMNC 3i Control
Interlock Enclosure
NC Assist Gas
B-Axis NC Focus
Integrated Beam Purge
150 mm L:ens, 190 mm Lens
High Speed Cutting Head
Active Cut
Clean Cut
Chiller
Dust Collector
