Description

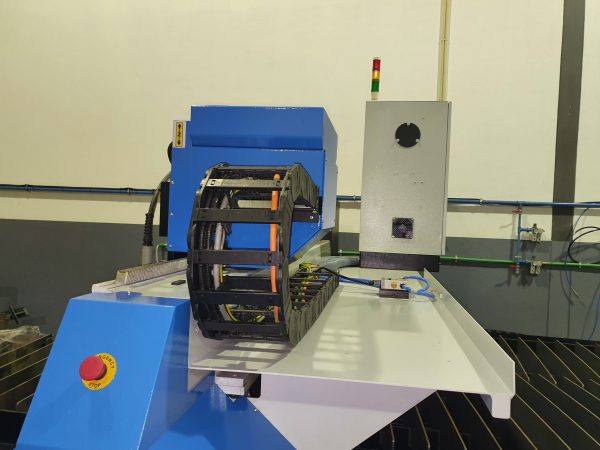

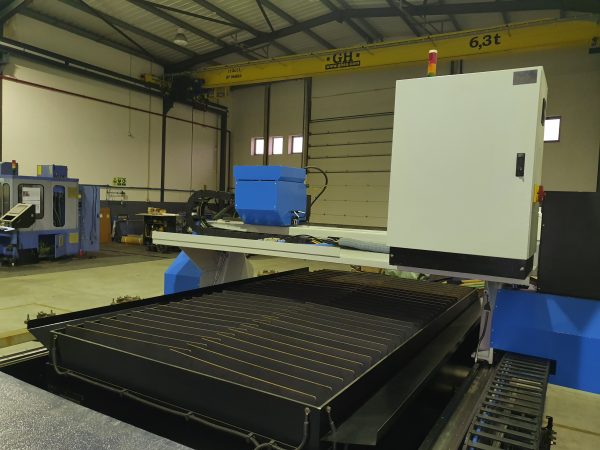

ALFACUT ULTRA T1 1530 – 2022 Model
| Metal length | 1200 mm |
| Metal width | 3200 mm |
| Type of source | Plasma |
– Model: ALFACUT ULTRA T1 1530
– Approximate useful cutting strokes (X/Y/Z): 1800 mm x 3200 mm x 150 mm
– Industrial sector: metalworking, boilermaking, decoration
– Number of embedded processes: 2 (optional plasma and oxyfuel)

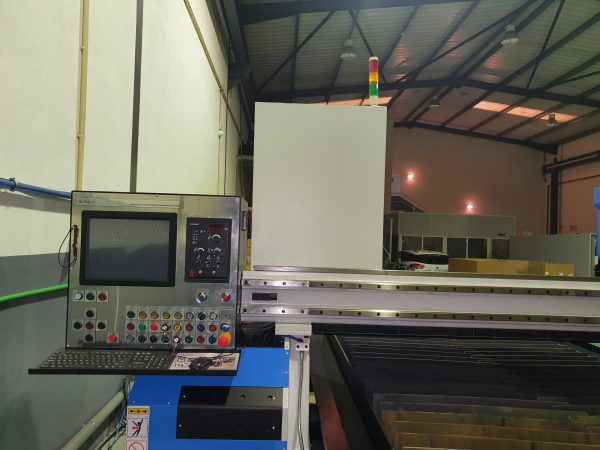

– CNC controller with Windows operating system equipped with 1 industrial tactile PC.
– Servomotors, CNC controller and electrical equipment from reputable brands
– Electronic HYPERTHERM probing system
– Electronic anti-collision system (Breakaway) HYPETHERM

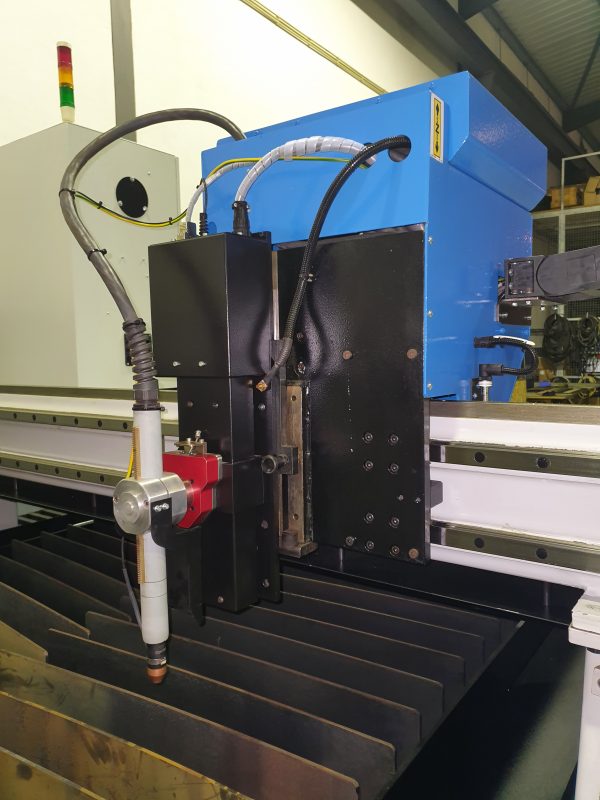

– Plasma cutting generator brand: HYPERTHERM POWERMAX 65 base or POWERMAX 85/125 option or MAXPRO200 option
– Plasma cutting type: POWERMAX: low definition by compressed air or MAXPRO200: medium definition by compressed air / O2 / N2
– Type of structure: entirely in steel with heat treatment, machined in the transmission area and treated against corrosion
– Bridge with dual motorization (synchronized Gantry axes)
– Maximum travel speed: 35 mt/min
– Maximum absolute positioning accuracy: +/- 0.15 mm
– Maximum positioning repeatability: +/- 0.025 mm
– Suction table with automatically sectioned pneumatic compartments
– Pneumatic blowing system for automatic cleaning of linear guides

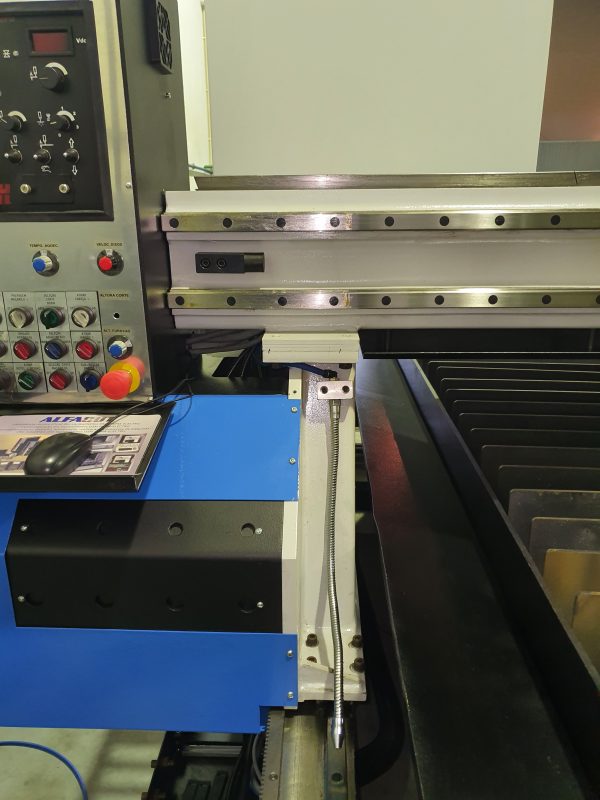

– Pneumatic transmissions made with high-precision planetary mechanical gearboxes, linear guides with ball skates and German brand rectified helical racks
– Approximate weight: 4,500 kg
– Installation and customer training on the use of the machine
