Accurpress 7150016/20 CNC Hydraulic Press Brake 1500 Ton – Year 2015

Contact us for price

Categories: ,

Description

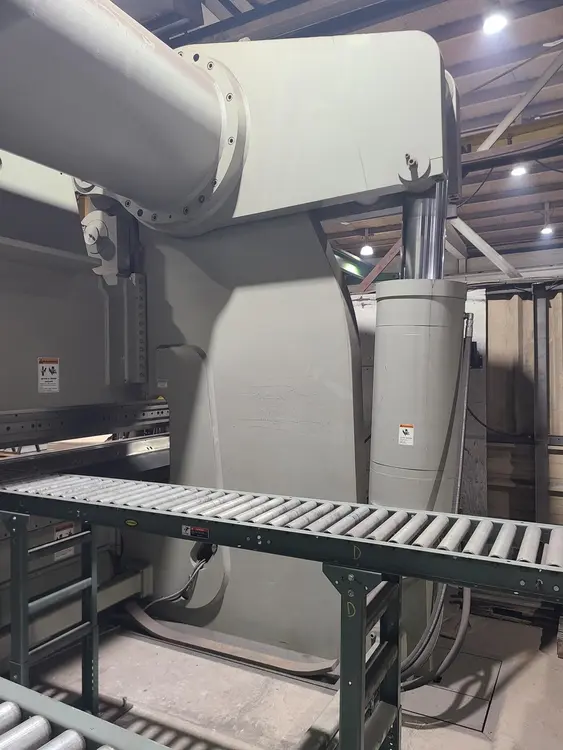

Accurpress 7150016/20 CNC Hydraulic Press Brake 1500 Ton – Year 2015
Installed this press in 2019 Very Low Usage

Model 7150016
Capacity 1500 US tons
Concentrated Load Ratio 175 US tons/foot
Bed/Ram Length 240 inches
Distance Between Frames 153 inches
Distance Between Cylinders 140 inches
Side Frame Throat Depth 016 inches
Bed Height 036 inches, from floor level
Bed Cap Width 016 inches
Ram Stroke 014 inches
Ram Closed Height 012 inches
Ram Open Height 026 inches
Overall Machine Length 239 inches
Overall Machine Width 127 inches
Maximum Machine Height 164 inches, from floor level
Assembled Weight 150,000 pounds
Hydraulic Power Unit 60 HP 575VAC/60HZ/3PH
Hydraulic Reservoir Capacity 160 US Gallons, ISO 46 Anti-wear hydraulic fluid
Theoretical Fast Approach Speed 024 Inches/Minute
Theoretical Slow Bed Speed 006 Inches/Minute
Approx. Return Speed 040 Inches/Minute

We also have an updated FND67403B.pdf. foundation detail drawing that can be purchased separately.
Note that we generally don’t include concrete thickness in our foundation detail drawings as we have no geological information of a customer’s site conditions.
However, your potential customers local engineer will need to know the following when designing for their site conditions:

· the foundation design is for the static load of the press brake, not the capacity of the press brake
· the estimated weights (static load) of an Accurpress 7150016 is 150,000 lbs.
· the press brake contacts the foundation in 4 places, 2 front & 2 rear anchoring pads
· the 2 front anchoring pads see 75% of the static load
· the anchoring pads are 18″ wide x 32″ long
· the anchoring pads will be field welded to the steel plates embedded within the foundation
· foundation design and concrete thickness under these steel plates is most important.

TOOLING:
Die – 1″ – 12″ – 20′ Non-Crowning Channel Lock (DD8051)
1″ – 12″ in increments of 1″ (Manual Adjust)
CNC Power Lock/Unlock & Vee Adjust to the above
Add Crowning to the above
Dual Radius Inserts
Custom Acute Punch – 20′ (DD8051) in 2 x 10′ Sections

Custom Tooling:

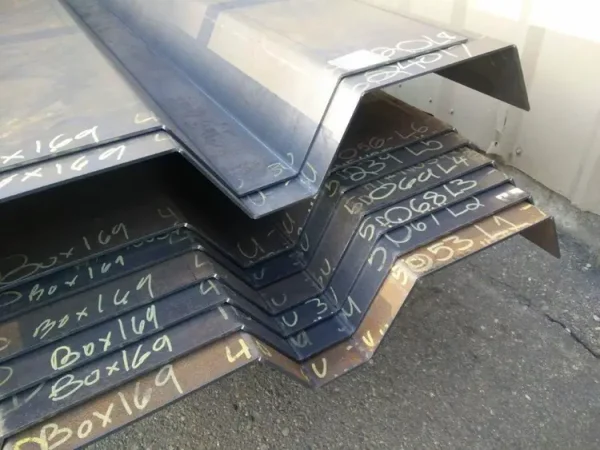

We also have custom dies (10’ wide) for corrugated wall profiles. See pics.
We installed this press in 2019

Equipped With
ETS 3000 controller.
Series 7 Rocker Arm Style 1500-ton 16 foot with 2’ x 2’ horns to extend the pressing area several years ago.
Die Holders: 12W-2H-16′
Bends 1″+ plate
TOOLING:
Die – 1″ – 12″ – 20′ Non-Crowning Channel Lock (DD8051)
1″ – 12″ in increments of 1″ (Manual Adjust)
CNC Power Lock/Unlock & Vee Adjust to the above
Add Crowning to the above
Dual Radius Inserts
Custom Acute Punch – 20′ (DD8051) in 2 x 10′ Sections
Custom Tooling:
Custom dies (10’ wide) for corrugated wall profiles
