REQUEST MACHINE INSPECTION : used Matsuura VX-1000 CNC Vertical Machining Center Spindle 20,000 rpm – Year 2013 made in Japan

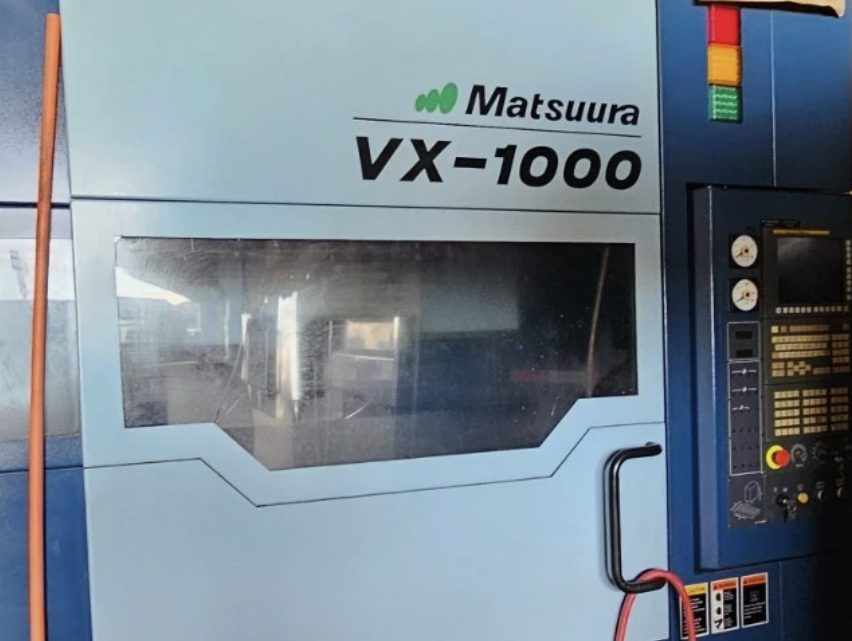

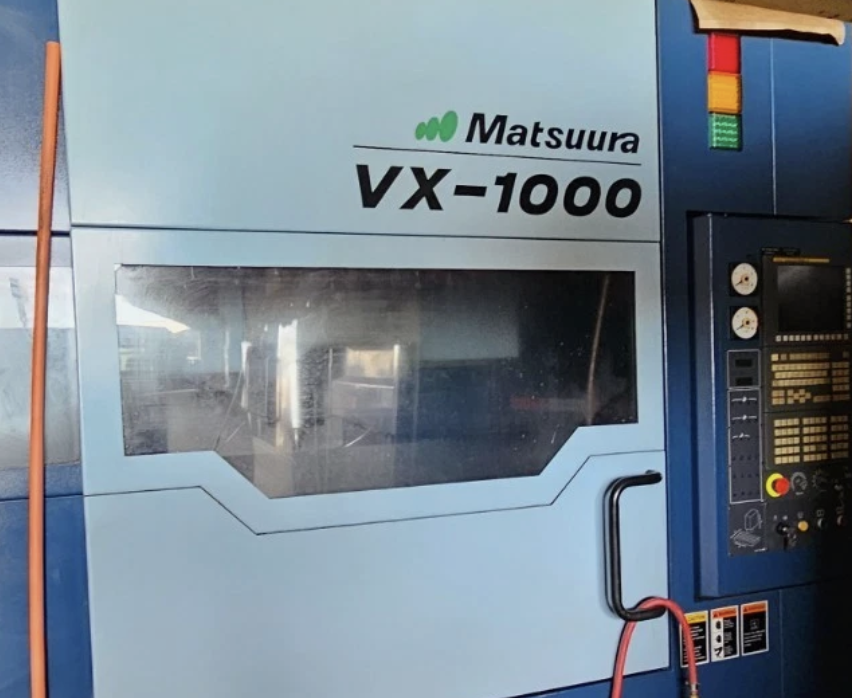

Matsuura VX-1000 CNC Vertical Machining Center – Year 2013
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | Matsuura | Matsuura |
| Model | VX-1000 | VX-1000 |
| Machine Type | CNC Vertical Machining Center | CNC Vertical Machining Center |
| Year | 2013 | 2013 |
| Manufacturing Date | October 2013 | October 2013 |
| Number of Axes | 3-Axis | 3-Axis |
| CNC Control | FANUC FS31iB | FANUC FS31iB |
| X-Axis Travel | 1,016 mm | 40 in |
| Y-Axis Travel | 609.6 mm | 24 in |
| Z-Axis Travel | 609.6 mm | 24 in |
| Maximum Table Loading Capacity | Approx. 499 kg | 1,100 lb |
| Spindle | Maxia Spindle (New) | Maxia Spindle (New) |
| Maximum Spindle Speed | 20,000 rpm | 20,000 rpm |
| Tool Taper | BIG-PLUS / CAT 40 | BIG-PLUS / CAT 40 |
| Tool Magazine Capacity | 30 Tools | 30 Tools |
| Tool Magazine Type | Drum-Type Tool Carousel | Drum-Type Tool Carousel |
| Automatic Tool Changer | Twin-Grip ATC with Tool Management System | Twin-Grip ATC with Tool Management System |
| Through-Spindle Coolant | Approx. 20.7 bar capable | 300 psi capable |
| Through-Spindle Air Blow | Yes | Yes |
| Spindle Chiller | Included | Included |
| Data Server Package | Included | Included |
| Look-Ahead Function | 1,000-Block Look-Ahead | 1,000-Block Look-Ahead |
| High-Speed Machining Features | MMU Package and Nano Smoothing | MMU Package and Nano Smoothing |
| Chip Augers | Twin Under-Table Chip Augers with Coolant Washdown | Twin Under-Table Chip Augers with Coolant Washdown |
| Chip Conveyor | Lift-Up Chip Conveyor | Lift-Up Chip Conveyor |
| X-Axis Ball Screw | New Ball Screw Assembly | New Ball Screw Assembly |
| X-Axis Linear Ways | New Linear Ways | New Linear Ways |
| Approximate Run Hours | 25,332 Hours | 25,332 Hours |
| Cutting Time | 21,564 Hours | 21,564 Hours |
| Machine Status | Under Power | Under Power |
| Manuals | Included | Included |
| Previous Application | Used exclusively for aluminum vacuum mold machining | Used exclusively for aluminum vacuum mold machining |
| Typical Machining Cycle | Approx. 24 to 100+ hours per mold | Approx. 24 to 100+ hours per mold |
| Typical Finishing Tool | Approx. 1.19 mm Ball End Mill | 3/64 in Ball End Mill |
| Previous Machine Load | Very Light Load – Primarily Aluminum Finishing | Very Light Load – Primarily Aluminum Finishing |
| Spindle Operating Characteristics | Maxia spindle designed for continuous high-RPM operation without overheating | Maxia spindle designed for continuous high-RPM operation without overheating |
| Overall Condition | Used – Reported to be in very nice condition | Used – Reported to be in very nice condition |
