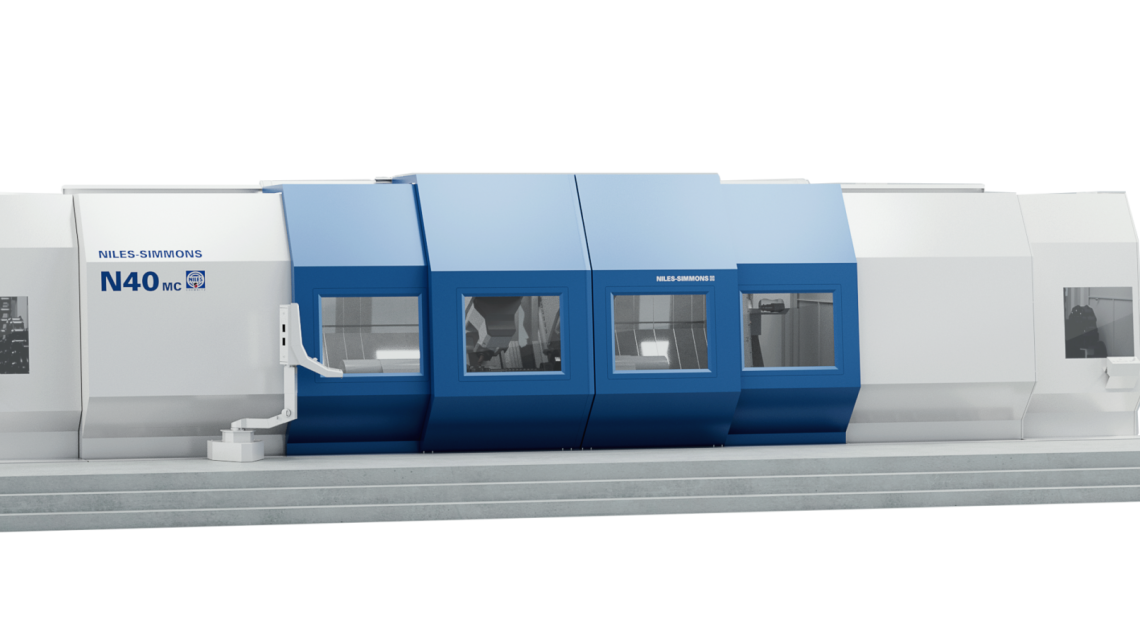

NILES-SIMMONS N40MC-6000 CNC MultiTasking Turning Milling Center 6 Meters
| NILES-SIMMONS N40 MC CNC Turning-Milling Machining Center – Catalogue Technical Specifications | |
|---|---|
| Specification | N40 MC |
| CNC Control | |
| Control System | SINUMERIK ONE |
| Drive System | SINAMICS S120 |
| Working Area | |
| Turning Length | 2,500 / 3,500 / 5,000 / 6,500 / 8,000 / 9,500 mm |
| Swing Diameter | 1,100 mm |
| X-Axis Slide Travel | -30 to +1,065 mm |
| Y-Axis Slide Travel | -350 to +350 mm |
| Main Spindle | |
| Spindle Head According to DIN 55026 | Size A15 |
| Spindle Bore | 160 mm |
| Bearing Diameter | 240 mm |
| Main Spindle Drive | |
| Drive Power S6-40% / S1-100% Duty Cycle |
80 / 71 kW 77 / 64 kW 87 / 78 kW 87 / 78 kW |
| Speed Range |
0 – 1,000 rpm 0 – 1,800 rpm 0 – 1,750 rpm 0 – 1,244 rpm |
| Torque S4-40% / S1-100% Duty Cycle |
3,400 / 3,400 4,430 / 3,700 8,000 / 7,230 11,020 / 9,880 |
| C-Axis Speed Range |
0 – 200 rpm 0 – 50 rpm 0 – 50 rpm |
| Feed Drives | |
| Rapid Feed Rates X / Y / Z | 30 / 12 (Max.) 20 / 30 m/min |
| Turning-Milling-Drilling Head | |
| Tool System | HSK 100T / C8 |
| Drive Power 100% / S6-60% Duty Cycle |
56 / 51.4 kW 50 / 46.2 kW |
| Maximum Speed Range |
5,000 rpm 8,000 rpm |
| B-Axis Swivel Range | -105° to +105° |
| Milling Spindle Torque – 40% / 100% Duty Cycle |
645 / 485 Nm 446 / 320 Nm |
| Tool Magazine | |
| Number of Tool Pockets | 48 / 72 / 96 / 120 / 144 |
| Maximum Tool Length | 900 / 600 / 600 / 300 / 900 mm |
| Maximum Tool Weight | 25 kg |
| Tailstock | |
| Quill Travel | 170 mm |
| Quill Diameter | 180 mm |
| Quill Centre | MK 6* |
| Clamping Force | 5.5 – 30 kN / 8 – 40 kN |
| Options | *Further options available on request |
| Added Value | |
|---|---|
| Flexible Complete Machining | Flexible complete machining with incremental turning lengths up to 9,500 mm, using one or two separate machining modules |
| Internal Machining Capabilities | Wide variety of internal machining capabilities with stationary or NC-adjustable boring bars, automatic boring-bar changer, or boring quill with or without head change |
| NC Internal Turning Head | NC internal turning head with 60 mm travel (D’Andrea tool) |
| Optional Crankshaft Milling Unit | Crankshaft milling unit with large plunging depth and maximum milling power of 73 kW |
