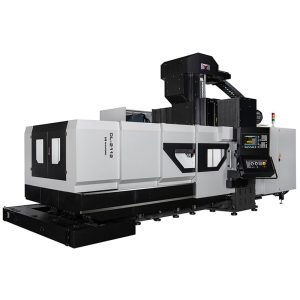

Manford DL-2112 – Year 2015
CNC Double Column Vertical Machining Center
| Year |
2015 |
| Make |
Manford |
| Model |
DL-2112 |
| Manford DL-2112 |
CNC Double Column Vertical Machining Center |
| X-Axis Travel |
82″ |
| Y-Axis Travel |
48″ |
| Z-Axis Travel |
24″ |
| Spindle Speed |
6,000 RPM |
| Spindle Taper |
CAT 50 |
| Spindle Motor |
20 HP |
| Tool Magazine Capacity |
24 ATC |
| Control |
Fanuc 0i-MA |
| Chip Removal |
Chip Conveyor |
| Coolant |
Yes |
| Machine Weighf |
44,000 lbs |
| Note |
(3) Machines Available for Sale, Price per Machine |
Manufacturer Catalogue Information about
Manford DL-2112 CNC Double Column Vertical Machining Center:
SPECIFICATION
| X TRAVEL |
2,100 mm |
| Y TRAVEL |
1,220 mm |
| Z TRAVEL |
800 mm |
| SPINDLE NOSE TO TABLE SURFACE |
150 ~ 950 mm |
| DISTANCE BETWEEN COLUMNS |
1,400 mm |
| TABLE SIZE |
2,000 x 1,100 mm |
| T-SLOT (Q’TY X SIZE X DIST) |
7 x 22 x 150 mm |
| MAX. TABLE LOAD |
4,000 kgs |
| SPINDLE |
| SPINDLE TRANSMISSION |
Direct type |
| SPINDLE TAPER |
BT40 |
| SPINDLE SPEED |
10,000 rpm |
| SPINDLE POWER |
11 / 15 kW |
| OTHER ITEMS |
| ATC CAPACITY |
24 tools |
| SLIDEWAYS FOR 3 AXIS |
X / Y / Z Roller type linear guideway |
