Machine Available from Stock – Fast Delivery Possible DEMMELER ERGONOMIX M4000 Welding Positioner – Year 2018

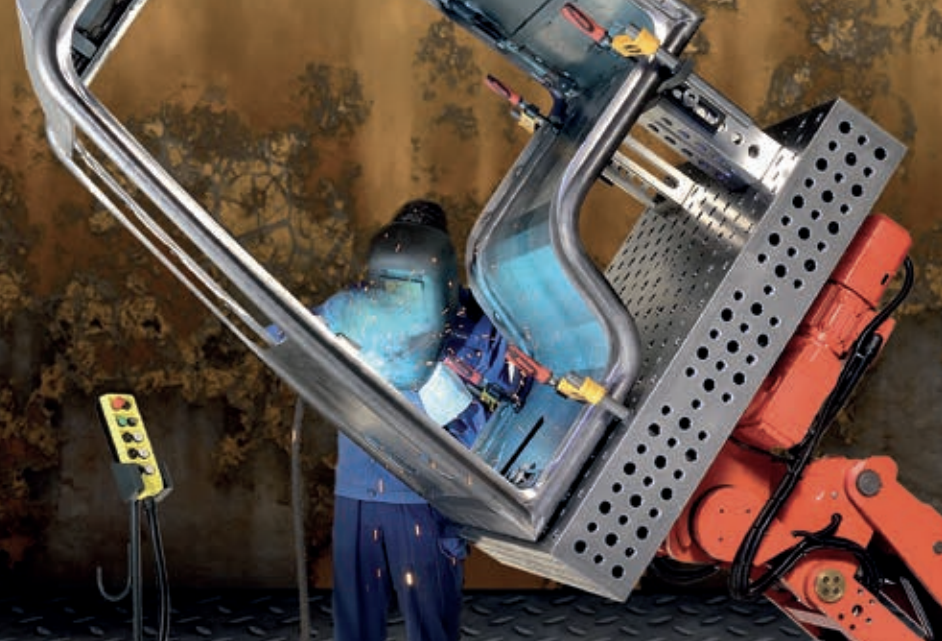

DEMMELER ERGONOMIX M4000 Welding Positioner – Year 2018
| Description | Unit | M 2000 / V1250 | M 2000 / V2500 | M4000 | M8000 |
|---|---|---|---|---|---|
| Bearing load (without worktop) | kg | 2000 | 2000 | 4000 | 8000 |
| D = max. Interference area at 180° | mm | 1000 | 1000 | 1500 | 2000 |
| Max. rotation speed | U/min | 2 | 2 | 2 | 1.5 |
| Torque | Nm | 1250 | 2500 | 5000 | 10000 |
| Tilt angle | ° | 180 | 180 | 180 | 180 |
| Moment of tilt | Nm | 8000 | 8000 | 32000 | 64000 |
| A = min. Height | mm | 490 | 490 | 747 | 853 |
| B = max. Height at 180° pivoting | mm | 970 | 970 | 983 | 1142 |
| C = max. Height at 90° pivoting | mm | 1480 | 1480 | 1685 | 1940 |
| Pendant control panel | – | ✓ | ✓ | ✓ | ✓ |
| 10-speed control | – | ✓ | ✓ | ✓ | ✓ |
| Foot switch | – | ✓ | ✓ | ✓ | ✓ |
| Motors / rotary axis | – | 1 | 2 | 2 | 2 |
| Article no. | – | M02-02000-006 | M02-02000-007 | M04-04000-000 | M08-08000-000 |
DEMMELER ERGONOMIX M4000 Welding Positioner – Year 2018
| Specification | Details |
|---|---|
| Brand | DEMMELER |
| Model | M4000_7.0.1_Standard_UL |
| Description | M4000 Welding Positioner |
| Year | 2018 |
| Serial / Reference | #7660 #1 |
Key Features
| Feature | Description |
|---|---|
| Work Area | Large work area for handling heavy components |
| Installation Height | Low installation height for easy access |
| Swivel Range | Up to 180° rotation capability |
| Ergonomics | Designed for ergonomic working conditions |
| Flexibility | High flexibility for various welding applications |
| Safety | Improved workplace safety features |
| Productivity | Enhanced productivity and efficiency |
Technical Specifications
| Specification | Metric | Imperial |
|---|---|---|
| Bearing Load | 4000 kg | 8,818 lb |
| A = Minimum Height | 747 mm | 29.41″ |
| B = Maximum Height (180° Pivot) | 983 mm | 38.70″ |
| C = Maximum Height (90° Pivot) | 1685 mm | 66.34″ |
| D = Maximum Interference Area at 180° | 1500 mm | 59.06″ |
| Max. Rotation Speed | 2 RPM | 2 RPM |
| Torque | 5000 Nm | 3688 lb-ft |
| Tilt Angle | 180° | 180° |
| Moment of Tilt | 32000 Nm | 23601 lb-ft |
| Motors / Rotary Axis | 2 | 2 |
