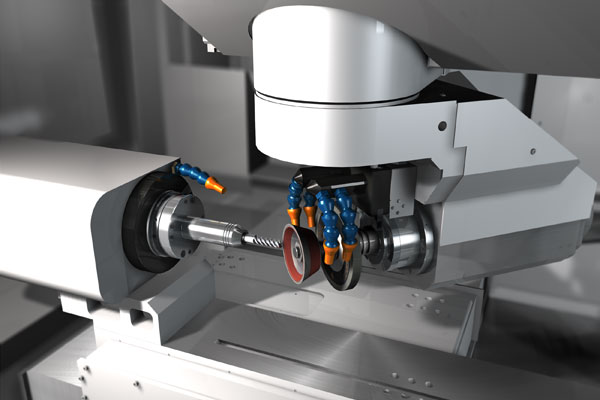

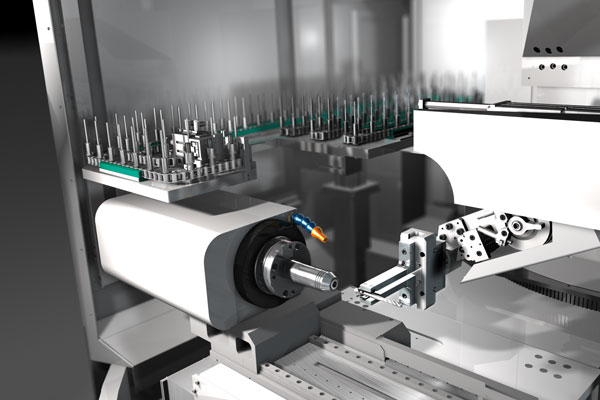

In Stock & Available For Sale : used SAACKE UW I D CNC 5-Axis Tool Grinding Machine – Year 2012 made in Germany / REQUEST MACHINE INSPECTION
| SAACKE UW I D CNC 5-Axis Tool Grinding Machine – Year 2012 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | SAACKE | |
| Model | UW I D | |
| Machine Type | CNC 5-Axis Tool Grinding Machine | |
| Year | 2012 | |
| Tool Capacity | ||
| Maximum Tool Diameter | 250 mm | Approx. 9.84 in |
| Maximum Edge Length for Complete Grinding | 430 mm | Approx. 16.93 in |
| Edge Length Reference | Measured at the front edge of the workhead | |
| Centre Height | 195 mm | Approx. 7.68 in |
| X-Axis – Grinding Table | ||
| Longitudinal Traverse | 625 mm | Approx. 24.61 in |
| Feed Rate | 0–15 m/min | Approx. 0–590.55 IPM |
| Z-Axis – Cross Slide | ||
| Longitudinal Traverse | 305 mm | Approx. 12.01 in |
| Feed Rate | 0–15 m/min | Approx. 0–590.55 IPM |
| Y-Axis – Vertical Travel | ||
| Vertical Travel | 305 mm | Approx. 12.01 in |
| Feed Rate | 0–15 m/min | Approx. 0–590.55 IPM |
| B-Axis – Grinding Head | ||
| Horizontal Swivel Range | 240° | |
| Grinding Wheel Arbor with Rapid Clamping | HSK-C / E50 | |
| Grinding Spindle Speed | 2,000–20,000 rpm, infinitely variable | |
| Maximum Grinding Wheel Diameter | Ø200 mm | Approx. Ø7.87 in |
| Grinding Wheel Changer | ||
| Number of Magazine Positions | 12 | |
| A-Axis – Workhead with Direct Drive | ||
| Work Spindle Taper | Plane Face (ISO 50) | |
| Maximum Work Spindle Speed | 1,000 rpm | |
| Drive | ||
| Grinding Motor – Peak Capacity | 36 kW | Approx. 48.3 HP |
| Weight | ||
| Machine Weight | Approx. 5,200 kg | Approx. 11,464 lb |
