From Inspection to Installation: What to Verify Before Buying a Pre-Owned, Used, Secondhand, Surplus AXA VSC 1 ME CNC Vertical Machining Center made in Germany?

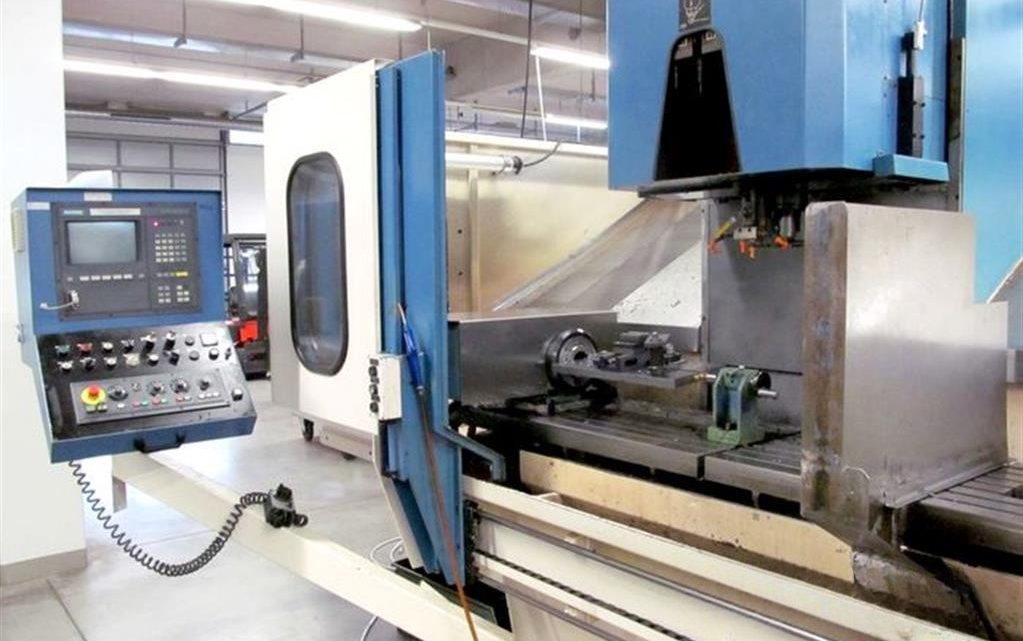

AXA VSC 1 ME CNC Vertical Machining Center (Germany)
Buyer’s Technical & Commercial Inspection Guide
When purchasing a pre-owned AXA VSC 1 ME CNC Vertical Machining Center (Made in Germany), a structured inspection process is critical. This model is known for high-speed spindle capability and Siemens control integration, but with ~70,000 ON hours (as typical in the market), detailed verification is essential before commitment.
1. Machine Technical Overview (Typical Configuration)
| Item | Specification |
|---|---|
| Manufacturer | AXA (Germany) |
| Model | VSC 1 ME |
| Machine Type | CNC Vertical Machining Center |
| Control | Siemens 840D ShopMill |
| X Travel | 2,240 mm |
| Y Travel | 500 mm |
| Z Travel | 600 mm |
| Spindle Taper | ISO 40 |
| Max Spindle Speed | 22,000 rpm |
| Through-Spindle Coolant | 15 bar |
| ATC Capacity | 22 tools |
| Electrical Requirement | 55 kVA |
| Machine ON Hours | ~70,000 hrs (example case) |
| Coolant System | Internal + External |
| Chip Conveyor | Included |
2. Mechanical Inspection Checklist
A. Spindle Condition (Critical Area)
High-speed 22,000 rpm spindles are expensive components.
Verify:
- Spindle vibration (run test at multiple RPM levels)
- Bearing noise (listen at 5k / 10k / 18k+ RPM)
- Runout measurement with test bar (target < 0.005 mm ideally)
- Thermal growth during 30-minute warmup
- Tool holder clamping force
If spindle replacement is required, cost can be significant.
B. Linear Guides & Ball Screws
With 70,000 hours, wear is expected.
Check:
- Backlash in X/Y/Z axes
- Position repeatability test (laser or dial indicator)
- Servo following error in Siemens diagnostics
- Lubrication system functionality
- Axis noise during rapid traverse
C. Axis Accuracy Test
Perform:
- Circular interpolation test
- Diagonal accuracy test
- Positioning repeatability test
Ask for:
- Calibration report (Ballbar test history)
- Geometry correction data in Siemens control
3. Electrical & Control System Verification
Siemens 840D ShopMill
Check:
- PLC alarms history
- Servo drive hours
- Backup status (hard disk, CF card, control backup)
- Drive parameters integrity
- Panel condition (buttons, screen backlight)
Confirm:
- Software version
- License validity
- Parameter backup availability
4. ATC & Tooling System
Inspect:
- Tool change time
- Tool magazine wear
- Tool arm alignment
- Gripper wear
- Spindle orientation accuracy
Improper ATC alignment can cause spindle taper damage.
5. Coolant & Chip Management
Verify:
- 15 bar through-spindle coolant pressure stability
- Pump condition
- Seal leakage
- Chip conveyor motor & chain condition
- Tank contamination
6. Structural Integrity
Since this machine has long X-axis travel (2,240 mm):
Inspect:
- Bed straightness
- Column rigidity
- Table wear
- Signs of crash damage
- Repainted areas (possible repair indication)
7. Production History & Usage Type
Ask:
- What materials were machined? (Aluminum vs hardened steel)
- Was it 24/7 production?
- Maintenance schedule records
- Spindle rebuild history
- Crash history
High-speed aluminum machining is less stressful than hardened steel cutting.
8. Test Cutting Before Purchase
Mandatory:
Perform:
- Roughing test
- Finishing pass
- Deep drilling with coolant through spindle
- 3-axis contouring
Measure:
- Surface finish (Ra value)
- Dimensional tolerance
- Roundness / flatness
9. Installation & Logistics Considerations
Machine dimensions:
- Approx. 6 m length (+2 m for chip conveyor)
- Width ~2.7 m
- Height ~2.85 m
- Power requirement: 55 kVA
Verify:
- Foundation strength
- Door clearance
- Rigging access
- Electrical compatibility (400V / 3-phase)
10. Spare Parts & Long-Term Support
AXA machines made in Germany typically offer:
Advantages:
- Solid mechanical build
- Stable Siemens platform
- Strong rigidity
However verify:
- AXA spare parts availability
- Spindle rebuild provider
- Siemens service support in your country
- Availability of ISO 40 tooling locally
11. Risk Assessment Summary
| Area | Risk Level |
|---|---|
| Spindle (22,000 rpm) | High |
| Ball screws | Medium |
| Linear guides | Medium |
| Control system | Low |
| Structure | Low |
| ATC | Medium |
Final Recommendation
The AXA VSC 1 ME is a strong German-built vertical machining center, especially suitable for:
- Long aluminum profiles
- Automotive parts
- High-speed milling
- Precision components
However, with high spindle speed and significant working hours, the spindle condition and axis wear determine its true value.
Before finalizing purchase:
- Conduct live cutting test
- Measure spindle runout
- Request full maintenance history
- Secure Siemens backup files
- Include conditional acceptance clause in contract
If properly maintained, this machine can still deliver high precision and productivity for many more years.
