Specification	Metric	Imperial
Manufacturer	Toyoda JTEKT	Toyoda JTEKT
Model	SB316Z	SB316Z
Year of Manufacture	2025	2025
Machine Type	CNC Double Column Bridge-Type Vertical Machining Center	CNC Double Column Bridge-Type Vertical Machining Center
Table Size (W × L)	2,997 × 1,499 mm	118 × 59 in
X-Axis Travel (Table)	3,061 mm	120.5 in
Y-Axis Travel (Crossrail Carriage)	1,600 mm	63 in
Y-Axis Travel (-YM Configuration)	2,299 mm	90.5 in
Z-Axis Travel (Spindle Ram)	800 mm	31.5 in
Optional Z-Axis Travel	1,001 mm	39.4 in
Spindle Nose to Table	201 – 1,001 mm	7.9 – 39.4 in
Maximum Table Load	9,988 kg	22,000 lbs
Distance Between Columns	1,699 mm	66.9 in
Maximum Spindle Speed	6,000 RPM	6,000 RPM
Tool Taper	CAT50	CAT50
Maximum Cutting Feedrate	10 m/min	394 IPM
Rapid Traverse (X / Y / Z)	24 / 15 / 10 m/min	944 / 590 / 394 IPM
Tool Magazine Capacity	32 Tools	32 Tools
Maximum Tool Weight	20 kg	44.1 lbs
Machine Dimensions (W × L × H)	8,296 × 4,648 × 4,343 mm	326.6 × 183 × 171 in

Brand New 2025 * NEVER INSTALLED * This machine has never cut a chip.

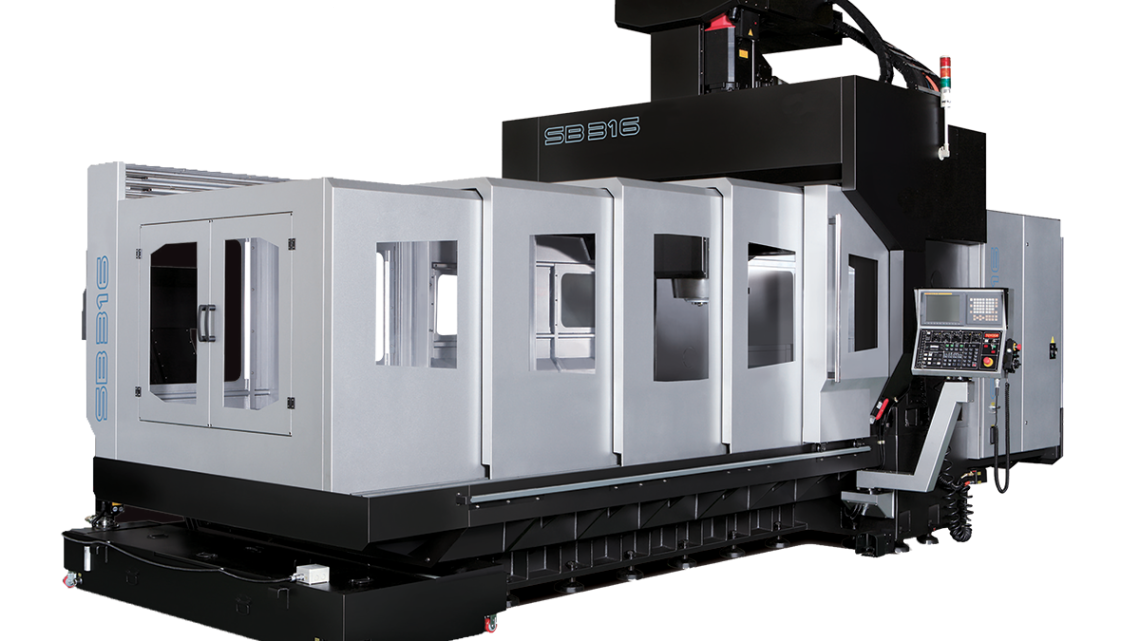

Description The Toyoda JTEKT SB316Z is a heavy-duty CNC double-column bridge-type vertical machining center designed for machining large and complex workpieces with exceptional rigidity and accuracy. Manufactured in 2025, this machine combines a robust bridge construction with high-capacity machining capabilities, making it ideal for aerospace, energy, mold & die, heavy equipment, and large structural component manufacturing. The machine features an expansive 2,997 × 1,499 mm (118″ × 59″) table with a maximum load capacity of 9,988 kg (22,000 lbs). Travels include 3,061 mm (120.5″) on the X-axis, 1,600 mm (63″) on the Y-axis, and 800 mm (31.5″) on the Z-axis, providing a large machining envelope for oversized components. Equipped with a 6,000 RPM CAT50 spindle, 32-tool automatic tool changer, and rapid traverse rates up to 24 m/min (944 IPM), the SB316Z delivers powerful material removal rates while maintaining excellent accuracy and surface finish quality. The wide 1,699 mm (66.9″) distance between columns and rigid bridge construction ensure outstanding stability during heavy-duty cutting operations. This makes the Toyoda SB316Z an excellent solution for precision machining of large workpieces requiring both strength and reliability.

Specification	Metric	Imperial
Manufacturer	Toyoda JTEKT	Toyoda JTEKT
Model	SB316Z	SB316Z
Year of Manufacture	2025	2025
Machine Type	CNC Double Column Bridge-Type Vertical Machining Center	CNC Double Column Bridge-Type Vertical Machining Center
CNC Control	Fanuc 31i-MB Plus	Fanuc 31i-MB Plus
Display	381 mm Touchscreen	15 in Touchscreen
X-Axis Travel	3,061 mm	120.5 in
Y-Axis Travel	1,600 mm	63.0 in
Z-Axis Travel	1,001 mm	39.4 in
Table Size (W × L)	2,997 × 1,499 mm	118.1 × 59.0 in
Maximum Table Load	9,979 kg	22,000 lbs
Distance Between Columns	1,699 mm	66.9 in
Table Height from Floor	889 mm	35.0 in
T-Slots	22 mm × 170 mm Pitch × 9 Slots	0.866 in × 6.7 in Pitch × 9 Slots
Spindle Taper	BCV50 (Big Plus Dual Contact)	BCV50 (Big Plus Dual Contact)
Tool Taper / Pull Stud	BCV50 / ANSI CAT50	BCV50 / ANSI CAT50
Spindle Type	Built-In Motor Spindle	Built-In Motor Spindle
Maximum Spindle Speed	12,000 RPM	12,000 RPM
Maximum Spindle Torque	420 Nm	310 ft-lb
Tool Magazine Capacity	120 Tools	120 Tools
Maximum Tool Diameter (Full)	127 mm	5.0 in
Maximum Tool Diameter (Adjacent Pocket Empty)	216 mm	8.5 in
Maximum Tool Length	399 mm	15.7 in
Maximum Tool Weight	20 kg	44.1 lbs
Maximum Cutting Feedrate	10 m/min	394 IPM
Rapid Traverse (X / Y / Z)	24 / 15 / 10 m/min	944 / 590 / 394 IPM
Coolant Through Spindle	70 bar	1,015 PSI
Chip Conveyor	Caterpillar Type	Caterpillar Type
Chip Conveyor Discharge Height	1,199 mm	47.2 in
Oil Skimmer	Included	Included
Probing System	Renishaw RMP60 Spindle Probe & RTS Tool Setter	Renishaw RMP60 Spindle Probe & RTS Tool Setter
Linear Scales	Fagor Linear Scales on X, Y & Z Axes	Fagor Linear Scales on X, Y & Z Axes
Rotary Table Interface	4th Axis Interface (Wiring & Piping Installed)	4th Axis Interface (Wiring & Piping Installed)
Acceleration Control	Bell-Shaped Acceleration / Deceleration	Bell-Shaped Acceleration / Deceleration
Machining Functions	Machining Condition Selection Function	Machining Condition Selection Function
Communication Port	RS232 Port with Lockout Function	RS232 Port with Lockout Function
Rotary Joint	ATS-Capable Air Purge Rotary Joint	ATS-Capable Air Purge Rotary Joint
Enclosure	Roof Enclosure Splash Guard	Roof Enclosure Splash Guard
Power Supply	220V ±10%, 3-Phase, 60Hz (~70 kVA)	220V ±10%, 3-Phase, 60Hz (~70 kVA)
Air Requirement	107 L/min @ 6.2 bar	3.78 CFM @ 90 PSI
Compliance	CE Version, UL Wiring & Cabling	CE Version, UL Wiring & Cabling
Measurement System	English (Imperial) Gauges	English (Imperial) Gauges
