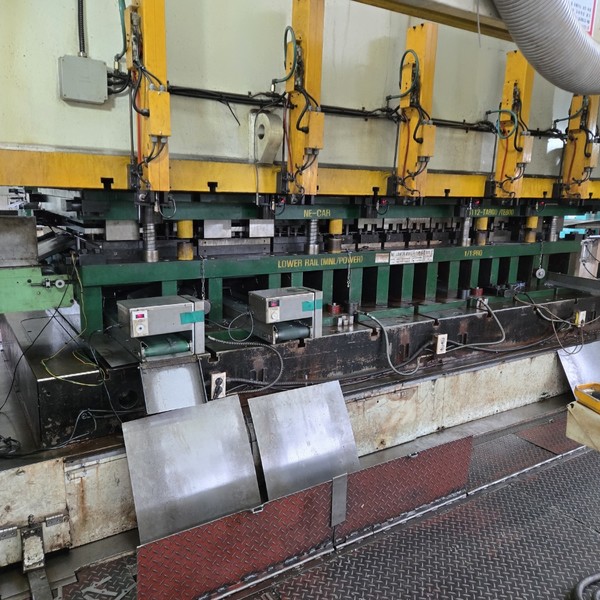

For Sale : used SIMPAC DTL2-1400-03 Straight Side Mechanical Press Capacity 1400 Ton – Year 2012 made in South of Korea

Machine Overview
Manufacturer: SIMPAC Model: DTL2-1400-03 Machine Type: Straight Side Mechanical Press Capacity: 1,400 Ton Manufacturing Date: 30 March 2012 Production No.: P1109010
Technical Specifications
Specification	Metric	Imperial	Description
Press Capacity	1,400 Ton	1,543 US Tons	Maximum press force.
Stroke Length	400 mm	15.75 in	Maximum ram stroke.
Strokes Per Minute	20–35 SPM	20–35 SPM	Variable operating speed.
Die Height	900 mm	35.43 in	Maximum shut height.
Slide Adjustment	400 mm	15.75 in	Ram adjustment range.
Bolster Area (L × FB)	4,500 × 1,600 mm	177.17 × 62.99 in	Working table dimensions.
Bolster Thickness	1,600 mm	62.99 in	Bolster plate thickness.
Main Motor	300 kW	402 HP	Main drive motor.
Slide Adjustment Motor	280 W × 4 (DC)	0.375 HP × 4 (DC)	Electric slide adjustment motors.
Power Supply	11 kV × 6 A	11 kV × 6 A	Electrical specification shown on the nameplate.
Rated Current	572.8 A	572.8 A	Machine rated current.
Die Cushion
Capacity	5 Ton	5.51 US Tons	Integrated die cushion capacity.
Stroke	150 mm	5.91 in	Maximum die cushion stroke.
Die Cushion Motor	280 W × 500	280 W × 500	Specification as indicated on the manufacturer nameplate.
Standard Features
Heavy-duty straight side mechanical press. 1,400-ton pressing capacity. Variable speed operation (20–35 SPM). 400 mm ram stroke. Large 4,500 × 1,600 mm bolster. Integrated die cushion system. 300 kW main drive motor. Industrial production press suitable for automotive, appliance, heavy stamping and progressive die applications.

Machine Overview
Manufacturer: K.D.M Co., Ltd. Model: DM NCF-700ST Machine Type: Coil Decoiler / Coil Handling System Year of Manufacture: 2012
Technical Specifications
Specification	Metric	Imperial	Description
Maximum Coil Weight	10,000 kg	22,046 lbs	Maximum allowable coil weight.
Maximum Coil Width	700 mm	27.56 in	Maximum strip width.
Coil Thickness Range	1.8 – 4.0 mm	0.071 – 0.157 in	Supported material thickness.
Maximum Coil Outside Diameter	1,500 mm	59.06 in	Maximum outside coil diameter.
Coil Inside Diameter	508 mm	20.00 in	Standard coil bore diameter.
Main Power	Not Specified	Not Specified	Nameplate field not completed.
Machine Weight	Not Specified	Not Specified	Nameplate field not completed.
Manufacturing Number	Not Visible		Serial number not legible on the nameplate.
Delivery Date	2012	2012	Year visible on manufacturer nameplate.
Manufacturer
Company	K.D.M Co., Ltd.		Original machine manufacturer.
Machine Features
Heavy-duty coil decoiler for metal strip processing lines. Designed for coils up to 10,000 kg (22,046 lbs). Supports strip widths up to 700 mm (27.56″). Handles material thicknesses from 1.8 mm to 4.0 mm. Accepts coils with a maximum outside diameter of 1,500 mm. Standard 508 mm (20″) coil inside diameter. Suitable for feeding press lines, roll forming lines and stamping systems.

No.	Manufacturer	Model / Machine Type	Capacity	Country of Origin	Year
1	SIMPAC	Mechanical Press	1,400 Ton	South Korea	2012
2	SIMPAC	Transfer Press	800 Ton	South Korea	2005
3	SIMPAC	Mechanical Press	400 Ton	South Korea	2006
4	Komatsu	Mechanical Press	300 Ton	Japan	1987
5	Schuler	Fineblanking Press	700 Ton	Germany	2010
6	Schuler	Fineblanking Press	700 Ton	Germany	2005
