For Sale : used HERR-VOSS CINCINNATI 60 inch Heavy-Duty Coil Slitting Line 50000 lb for Hot Rolled, Cold Rolled Galvanized Steel made in USA under power
HERR-VOSS CINCINNATI 60 inch Heavy-Duty Coil Slitting Line – 50,000 lb.
| MACHINE INFORMATION | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | Herr-Voss / Cincinnati | |
| Machine Type | Heavy-Duty Coil Slitting Line | |
| Country of Manufacture | USA | |
| Material Application | Hot Rolled, Cold Rolled and Galvanized Steel | |
| Operating Condition | Currently in Operation | |
| Inspection | Can Be Seen in Operation by Appointment | |
| LINE CAPACITY | ||
| Maximum Coil Width | 1,524 mm | 60″ |
| Maximum Coil Weight | Approx. 22,680 kg / 22.68 metric tons | 50,000 lbs / 25 US tons |
| Material Thickness Range | Approx. 0.28 – 3.43 mm | 0.011″ – 0.135″ |
| INPUT COIL CAPACITY | ||
| Input Coil Inside Diameter – Minimum | 381 mm | 15″ |
| Input Coil Inside Diameter – Maximum | 991 mm | 39″ |
| Input Coil Inside Diameter Range | 381 – 991 mm | 15″ – 39″ |
| Maximum Input Coil Outside Diameter | 1,829 mm | 72″ |
| Input Material Thickness – Minimum | Approx. 0.28 mm | 0.011″ |
| Input Material Thickness – Maximum | Approx. 3.43 mm | 0.135″ |
| Required Minimum Trim | Approx. 10.16 – 12.70 mm | 0.400″ – 0.500″ |
| OUTPUT COIL CAPACITY | ||
| Output Coil Inside Diameter | 508 mm | 20″ |
| Maximum Output Coil Outside Diameter | 1,829 mm | 72″ |
| Maximum Output Coil Weight | Approx. 22,680 kg / 22.68 metric tons | 50,000 lbs / 25 US tons |
| SLITTING TOLERANCES | ||
| Width Tolerance – Material Thickness 0.009″ to 0.110″ | ±0.127 mm for material approx. 0.229 – 2.794 mm thick | ±0.005″ for material 0.009″ – 0.110″ thick |
| Width Tolerance – Material Thickness 0.110″ and Above | ±0.254 mm for material approx. 2.794 mm and above | ±0.010″ for material 0.110″ and above |
| Length Tolerance | N/A | |
| LINE SPEED | ||
| Low Gear Line Speed | Approx. 174 m/min | 570 FPM |
| High Gear Line Speed | Approx. 296 m/min | 970 FPM |
| Maximum Line Speed | Approx. 488 m/min | 1,600 FPM |
| STRIP PROCESSING SYSTEM | ||
| Strand Extensioner | Herr-Voss Strand Extensioner | |
| Slitting Application | Heavy-Duty Coil Slitting of Hot Rolled, Cold Rolled and Galvanized Steel | |
| INCLUDED AUXILIARY EQUIPMENT | ||
| Slitter Knives | Included | |
| Knife Setter | Included | |
| Cylindrical Grinder | Included | |
| Coil Car | Included | |
| Palletizer | Included | |
| Upenders | Included | |
| Down-Enders | Included | |
| Turntables | Included | |
| Related Line Equipment | Included – Exact Total and Inventory to Be Verified | |
| REMOVAL & RIGGING | ||
| Removal | Buyer’s Technicians May Supervise the Removal | |
| Overhead Cranes | Available for Use by Buyer’s Technicians During Removal | |
| KEY FEATURES | ||
| 60″ Coil Capacity | 1,524 mm | 60″ |
| 50,000 lb Coil Capacity | Approx. 22,680 kg | 50,000 lbs |
| Maximum Coil OD | 1,829 mm | 72″ |
| Maximum Material Thickness | Approx. 3.43 mm | 0.135″ |
| Maximum Line Speed | Approx. 488 m/min | 1,600 FPM |
| Herr-Voss Strand Extensioner | Included | |
| Complete Auxiliary Equipment Package | Knives, Knife Setter, Cylindrical Grinder, Coil Car, Palletizer, Upenders, Down-Enders, Turntables and Related Equipment | |
| Operational Status | Line is Currently in Operation | |
| DESCRIPTION | ||

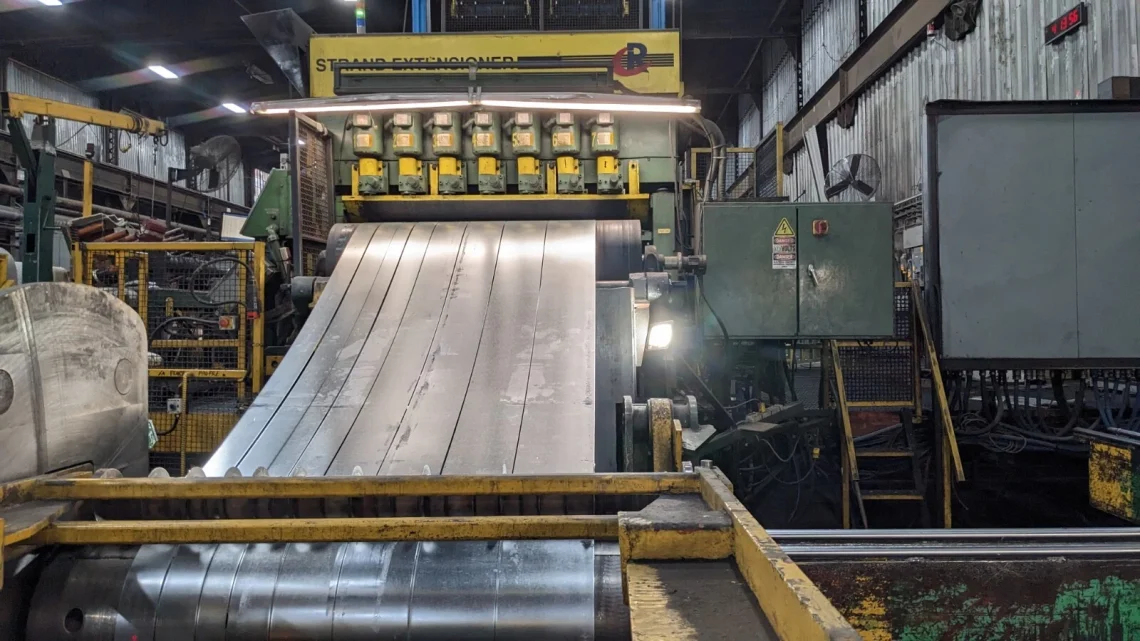

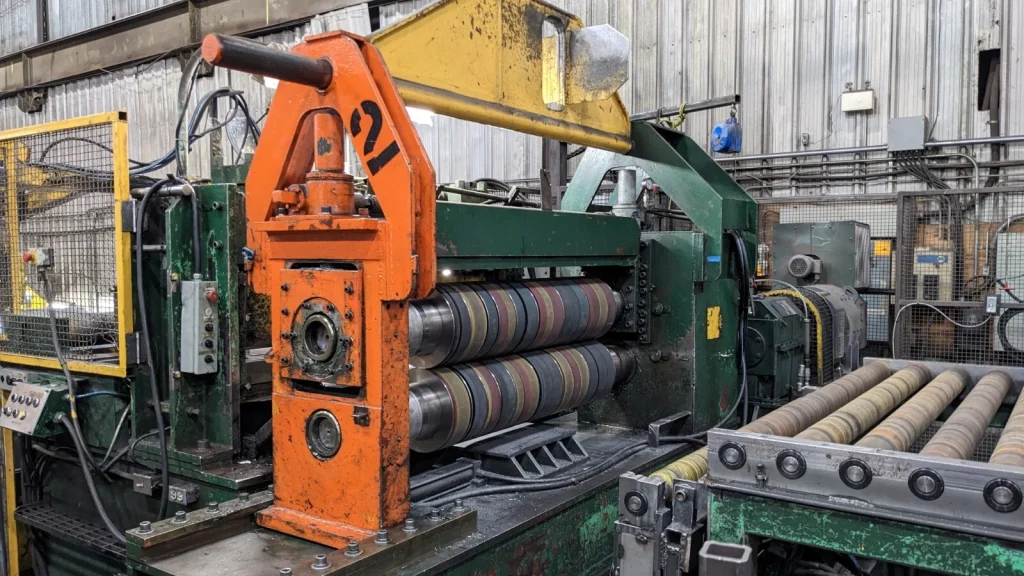

| The HERR-VOSS CINCINNATI is a heavy-duty 60″ coil slitting line manufactured in the USA and rated for processing hot rolled, cold rolled and galvanized steel. The line has a maximum coil width capacity of 60″ (1,524 mm) and a maximum coil weight capacity of 50,000 lbs (approximately 22,680 kg / 22.68 metric tons). The input section accommodates coil inside diameters from 15″ to 39″ (381 to 991 mm), with a maximum outside diameter of 72″ (1,829 mm). The specified material thickness range is 0.011″ to 0.135″ (approximately 0.28 to 3.43 mm). The line requires a minimum trim of approximately 0.400″ to 0.500″ (10.16 to 12.70 mm). On the output side, the line produces coils with a 20″ (508 mm) inside diameter and a maximum outside diameter of 72″ (1,829 mm). Specified width tolerance is ±0.005″ (±0.127 mm) for material from 0.009″ through 0.110″ thick and ±0.010″ (±0.254 mm) for material 0.110″ thick and above. The line provides multiple operating speeds, including approximately 570 FPM (174 m/min) in low gear, 970 FPM (296 m/min) in high gear, and a stated maximum line speed of 1,600 FPM (approximately 488 m/min). The line is equipped with a Herr-Voss Strand Extensioner and is offered with extensive auxiliary equipment, including slitter knives, knife setter, cylindrical grinder, coil car, palletizer, upenders, down-enders, turntables and related equipment. Exact quantities and the final equipment inventory are subject to verification. According to the available information, the complete slitting line is currently in operation and can be inspected by appointment. The buyer’s own technicians may use the available overhead cranes and supervise the removal process. | ||
