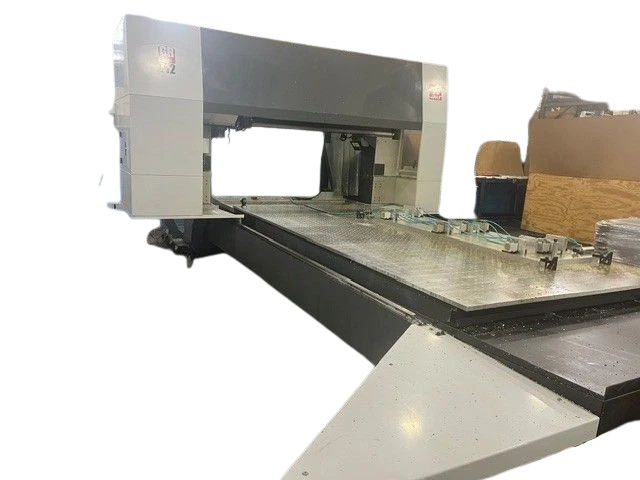

For Sale : used HAAS GR-712 CNC Gantry Router 4th Axis Vertical Machining Center – Year 2021 made in USA
| HAAS GR-712 CNC Gantry Router 4th Axis Vertical Machining Center – Year 2021 | |
|---|---|
| Manufacturer | HAAS |
| Model | GR-712 |
| Year of Manufacture | 2021 |
| Machine Type | CNC Gantry Router / Vertical Machining Center |
| CNC Control | HAAS Next Generation Control |
| Axis Travels & Capacity | |
| X-Axis Travel | 145″ (3,683 mm) |
| Y-Axis Travel | 85″ (2,159 mm) |
| Z-Axis Travel | 11″ (279 mm) |
| Number of Axes | 4 |
| 4th Axis | Yes |
| 4th Axis Wiring | Included |
| Extended Z Clearance | 24″ |
| Table | |
| Table Length | 144″ (3,658 mm) |
| Table Width | 72″ (1,829 mm) |
| Table Construction | 1″ Thick Aluminum Table |
| Table Hole Size | 1/2-13 |
| Table Hole Spacing | 2″ Centers |
| Pallet System | No |
| Spindle | |
| Spindle Power | 15 HP |
| Maximum Spindle Speed | 8,100 rpm |
| Spindle Taper | CT40 |
| Rigid Tapping | Included |
| Automatic Tool Changer | |
| Automatic Tool Changer | 20 Tools |
| Control & Software | |
| CNC Control | HAAS Next Generation Control |
| Memory | 1 GB |
| Remote Jog Handle | XL Remote Jog Handle |
| Probing & Coolant System | |
| Probing System | Renishaw Probing |
| Coolant System | Included |
| Programmable Coolant | Included |
| Chip & Coolant Guard | Included |
| Electrical & Additional Equipment | |
| Internal High Voltage Transformer | Included |
| Front Rubber Drape | Included |
| Machine Construction & Applications | |
| Machine Construction | Rigid Steel Gantry Construction |
| Suitable Materials | Aluminum, Metals, Plastics and Other Light Materials |
| Typical Applications | Large Sheet Machining and High-Volume Production of Smaller Parts |
| Operator Protection | Traveling Guard Protects the Operator from Chips and Coolant |
| General Data | |
| Machine Weight | 24,000 lbs (Approx. 10,886 kg) |
| Equipped With | |
| Included Equipment | 1 GB Memory HAAS Next Generation Control 8,100 rpm, 15 HP, CT40 Spindle 20-Tool Automatic Tool Changer Renishaw Probing Chip & Coolant Guard Coolant System 4th Axis Wiring 24″ Extended Z Clearance Internal High Voltage Transformer Programmable Coolant XL Remote Jog Handle Rigid Tapping 1/2-13 Table Holes on 2″ Centers Front Rubber Drape |
