Buying a Mazak HQR-200MSY is usually a sign that you need serious multi-tasking capability, rigidity, and production reliability. But even a Japanese-built Mazak can turn into a costly headache if you don’t inspect it like an engineer, not a trader.
Below is a practical, no-nonsense checklist, written from a machine-tool engineer’s perspective—plus key technical details, as requested.

---

1. Machine Identity & Build Integrity (Non-Negotiable)

Before you look at chips or spindle hours, confirm the machine’s identity.

Check carefully:

• Machine model suffix (MSY versions differ)
• Serial number on bed casting vs. electrical cabinet
• Country of manufacture: Japan (not assembled elsewhere)
• CE / UL plates (especially for EU/US resale)
• Original Mazak documentation (electrical, hydraulic, parts manuals)

Mismatched serial plates or missing manuals usually indicate multiple-owner abuse or undocumented retrofits.

---

2. Control System Health (Mazatrol Is Powerful—but Expensive)

Most HQR-200MSY machines are equipped with:

• Mazatrol Matrix Nexus 2
• or Mazatrol SmoothC (later years)

Engineer checks:

• Boot time (slow boot = PC board aging)
• Touchscreen calibration drift
• Mazatrol conversational programs load correctly
• EIA/ISO G-code compatibility
• Error history log (ask seller to show it live)

Control replacement or major board failure can exceed €15,000–€25,000.

---

3. Main & Sub Spindle Condition (Heart of the Machine)

This model lives or dies by its twin-spindle accuracy.

Inspect under power:

• Spindle warm-up noise
• Axial play (bar test if possible)
• C-axis clamp/unclamp response time
• Encoder alignment errors
• Spindle orientation repeatability

Red flags:

• Heat buildup after 20–30 minutes
• Growling at mid-RPM
• Delayed C-axis locking

---

4. Milling Spindle & Y-Axis (Most Abused Area)

The M + Y axis is where most used HQRs show wear.

Check:

• Live tool spindle bearings
• Tool holder taper fretting
• Y-axis backlash (especially at extremes)
• Simultaneous interpolation (X/Y/C test cut)

Continuous heavy milling on a turning center accelerates Y-axis ball screw wear.

---

5. Turret, Tooling System & Index Accuracy

Engineer’s checklist:

• Turret index repeatability
• Hydraulic clamp pressure stability
• Live tool drive splines
• ATC (if equipped) alignment
• Tool change under load

A drifting turret = scrap parts + broken tools.

---

6. Linear Guides, Ball Screws & Geometry

Mazak geometry is excellent when new—but not immortal.

Test methods:

• Rapid traverse vibration
• Laser or ball-bar results (ideal)
• Backlash compensation values (too high = worn screws)
• Way cover integrity (coolant ingress kills screws)

---

7. Hydraulics, Lubrication & Coolant Systems

Small leaks become big downtime.

Inspect:

• Hydraulic unit pressure stability
• Oil mist collector condition
• Central lubrication alarms
• Coolant pump pressure (especially through-tool)

Poor lubrication history shortens machine life dramatically.

---

8. Automation & Options (Verify, Don’t Assume)

Many HQR-200MSY machines were sold option-heavy.

Confirm physically:

• Parts catcher
• Bar feeder interface
• Tool presetter
• High-pressure coolant
• Chip conveyor type
• Sub-spindle ejector

Never rely on listings—verify on the machine.

---

9. Application History (This Matters More Than Hours)

Ask what it actually cut:

• Automotive shafts?
• Aerospace Inconel?
• Medical stainless?
• General job-shop aluminum?

A 30,000-hour aluminum machine can be healthier than a 10,000-hour Inconel grinder.

---

10. Service History & Parts Availability

Must-have documents:

• Mazak service reports
• Spindle rebuild invoices
• Control board replacements
• OEM parts usage (not aftermarket electronics)

Mazak parts are excellent—but not cheap.

---

Technical Specifications

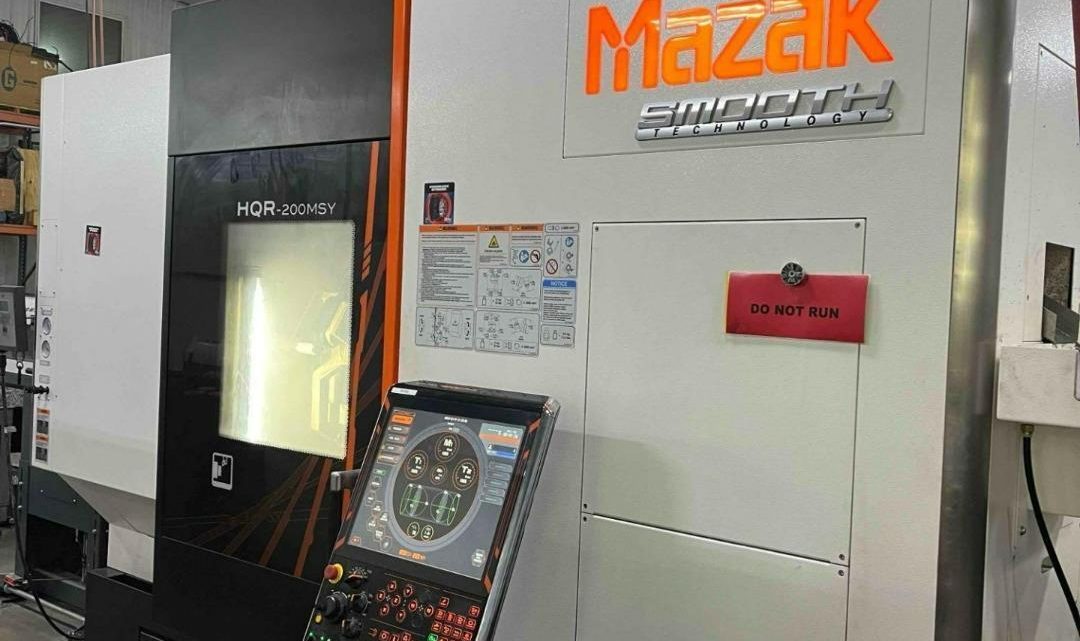

Mazak HYPER QUADREX HQR-200MSY (Typical Configuration)

Specification	Value
Machine Type	CNC Turning Center with Milling & Y-Axis
Country of Origin	Japan
Control	Mazatrol Matrix Nexus 2 / SmoothC
Max Turning Diameter	approx. 340 mm
Max Turning Length	approx. 500 mm
Main Spindle Chuck	8″
Main Spindle Speed	up to 5,000 rpm
Sub-Spindle	Yes
Live Tool Spindle Speed	up to 6,000 rpm
Y-Axis Travel	approx. ±50 mm
X-Axis Travel	approx. 230 mm
Z-Axis Travel	approx. 500 mm
Tool Stations	12 (live tooling capable)
C-Axis	Main & Sub
Bar Capacity	up to 65 mm
Machine Weight	approx. 6,000–6,500 kg

(Exact specs vary by year & option set—always confirm against serial number.)

---

Engineer’s Final Verdict

A used Mazak HQR-200MSY made in Japan is still a top-tier mill-turn investment—if:

• The spindles are healthy
• The Y-axis is tight
• The control is clean
• And the service history is transparent

Skip inspections, and you’re gambling. Inspect properly, and you’re buying years of reliable production.
