CNC-TAKANG DCM 1417 CNC Machine Specifications

Send Inquiry
DCM 1417
“CNCBUL.com is redefining the future of industrial trade — transforming data and machine knowledge into global intelligence and trusted connections.” Invest in CNCBUL.com

Origin: Taiwan

MODEL DCM 1417
TABLE
Table size 1700 x 1200 mm
T-Slot (W × D × N) 22 × 150 × 7 mm
Max. table load 5000 kgs
TRAVEL
Travel ranges (X × Y × Z) 1700 × 1400 × 900 mm
Spindle nose to table surface 160 ~ 1060 mm
Spindle center to column 404 mm
Distance between columns 1400 mm
SPINDLE
Tool shank & pull stud ISO 50
Spindle inner diameter 100 mm
Spindle speed gear 8000 rpm
Draw bar force 1800 con / 30 min kw
Main motor 15 / 18.5 con / 30 min kw
FEED
Rapid feed (X / Y / Z) 20 / 20 / 20 m/min
Feed rate (X / Y / Z) 10000 mm/min
MITSUBISHI HF703 7.0 kw
FANUC α 30 / 3000i 7.0 kw
SIEMENS 1FK7 103 7.0 kw
FAGOR FXM75.20 7.0 kw
HEIDENHAIN QSY190D 9.6 kw
ATC
ATC type Disk / Chain
CAM type ARM
Tool selection Random
Tool storage capacity 24 / 32
Max. tool diameter 115 mm / 127 mm (160 mm / 250 mm)
Max. tool length 350 mm
Max. tool weight 20 kgs
MISCELLANEOUS
Air requirement 6 kg/cm²
Hydraulic requirement 60, 40 kg/cm², L
Voltage 220
Power requirement 50 KVA
Coolant tank capacity 900 L
Machine weight 15500 kgs
Machine height 4500 mm
Floor space (L × W) 5800 × 4150 mm
STANDARD ACCESSORIES
  1. Air blast through spindle
  2. Air blast work piece (nose)
  3. Coolant flushing system
  4. Automatic lubrication system
  5. Work light
  6. Operation status light
  7. Screw type chip conveyor & Chain type conveyor
  8. Chain Type 32-tool ATC
  9. Gear head
  10. Cooling system
  11. Z axis pneumatic balance system
  12. Air gun/water gun
  13. MPG hand wheel
  14. Heat exchanger
  15. RS-232 interface
  16. Rigid tapping
  17. Spindle oil cooler
  18. Adjusting tools and box
  19. Leveling bolts and pads
  20. Operation and programming manual
  21. Semi-full splash safety guard
OPTIONS
  1. Transformer
  2. Full splash guard
  3. Coolant through spindle
  4. Linear scales
  5. Auto tool length measurement
  6. Auto work piece measurement
  7. Manual universal head (90 degree)
  8. Auto universal head (90 degree)
  9. Rotary table
← Back to all CNC-TAKANG Machines

Other CNC-TAKANG Machine Models

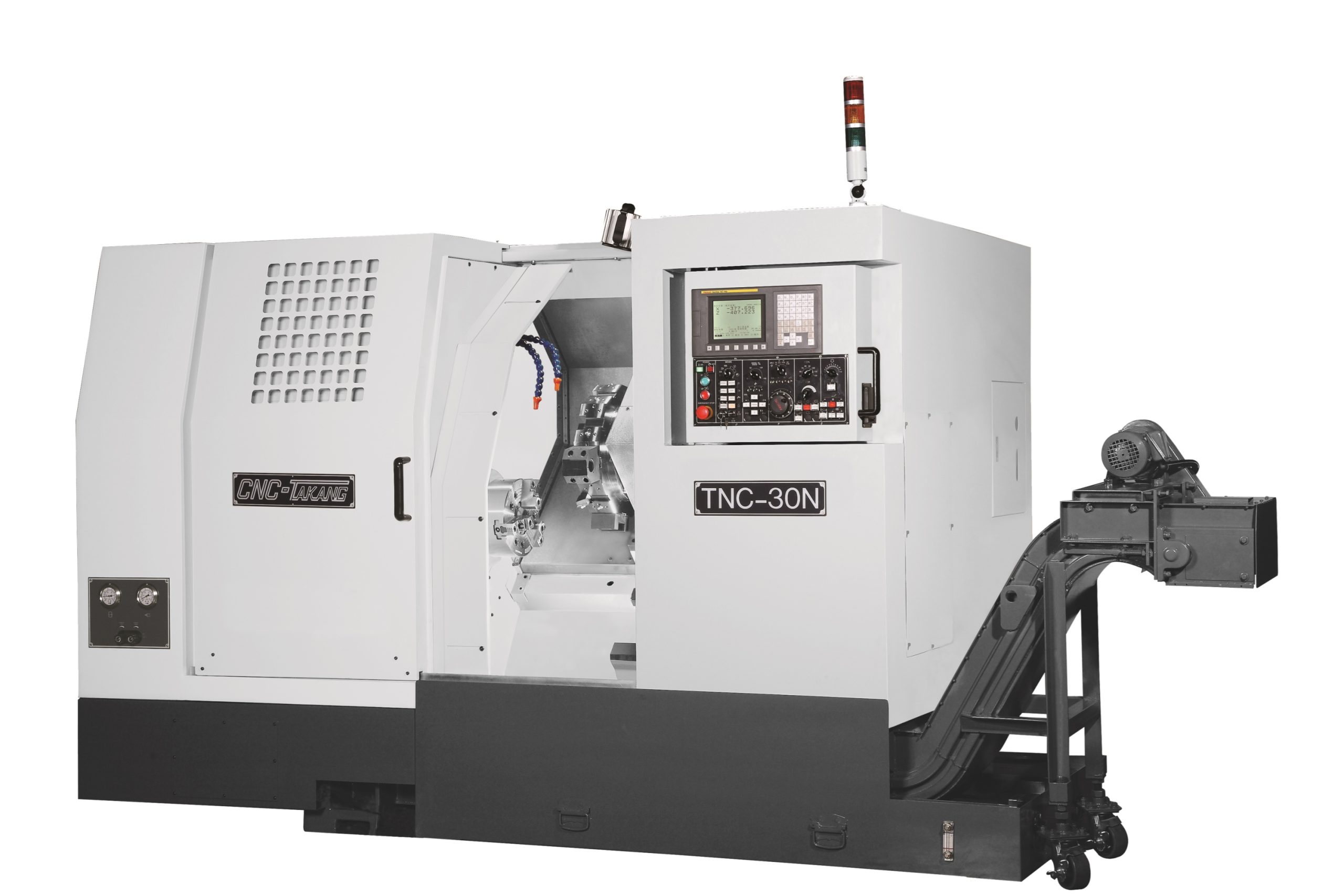

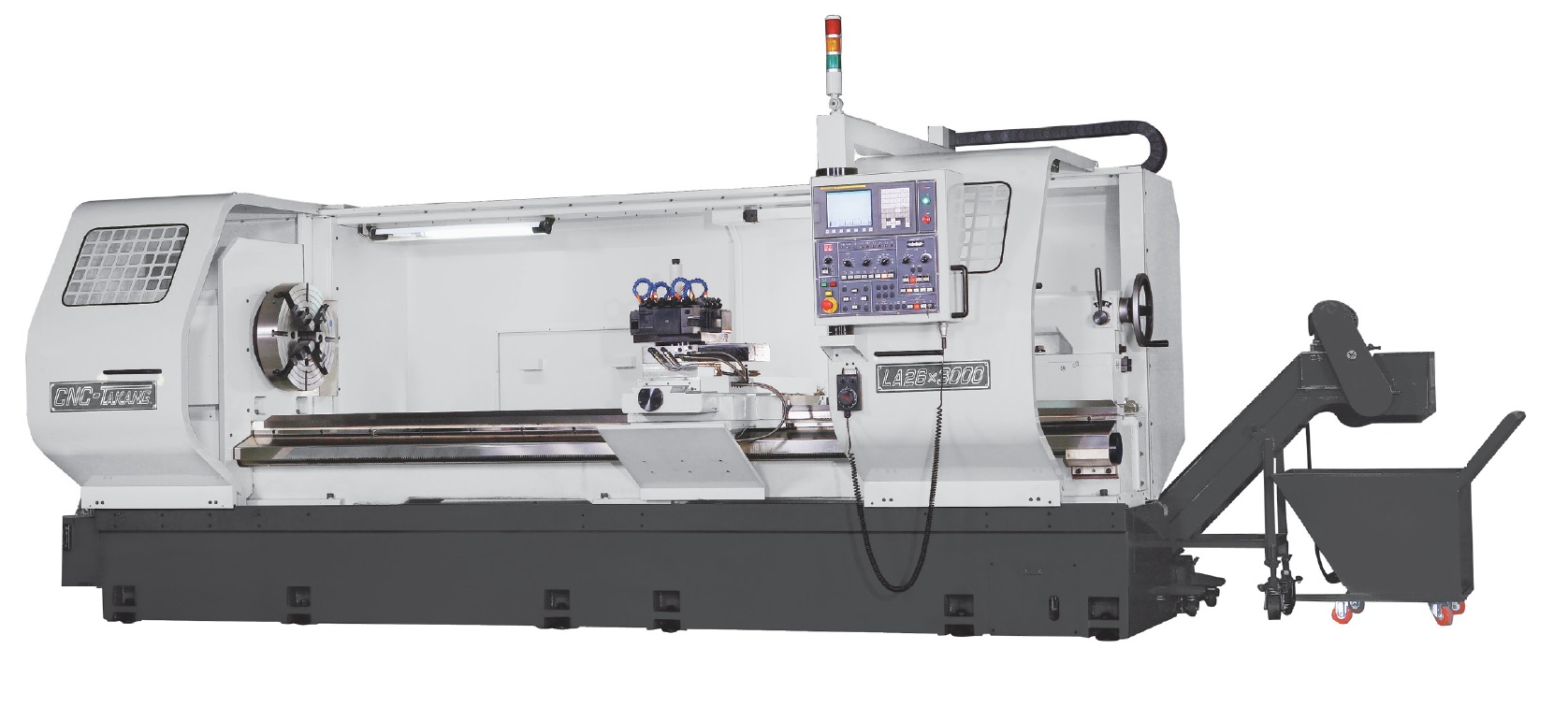

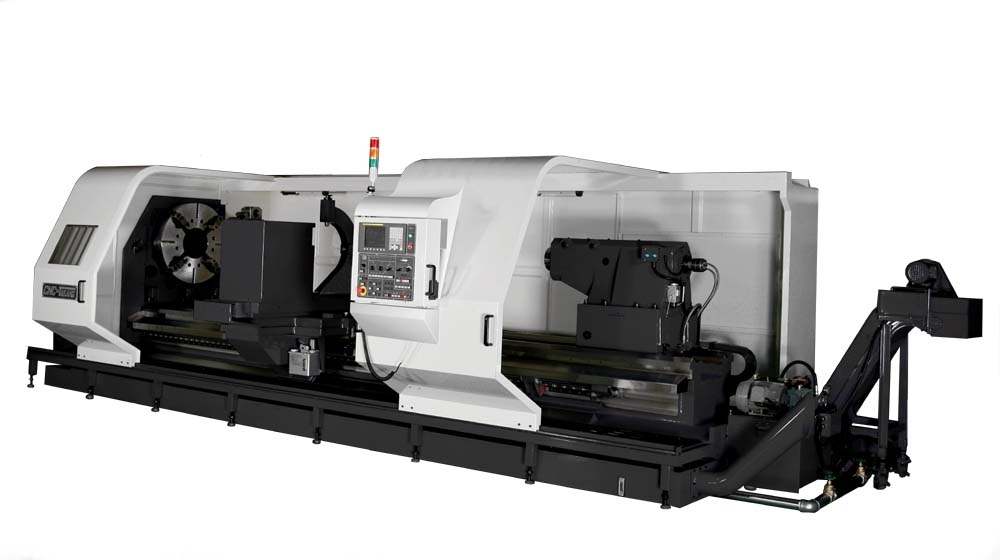

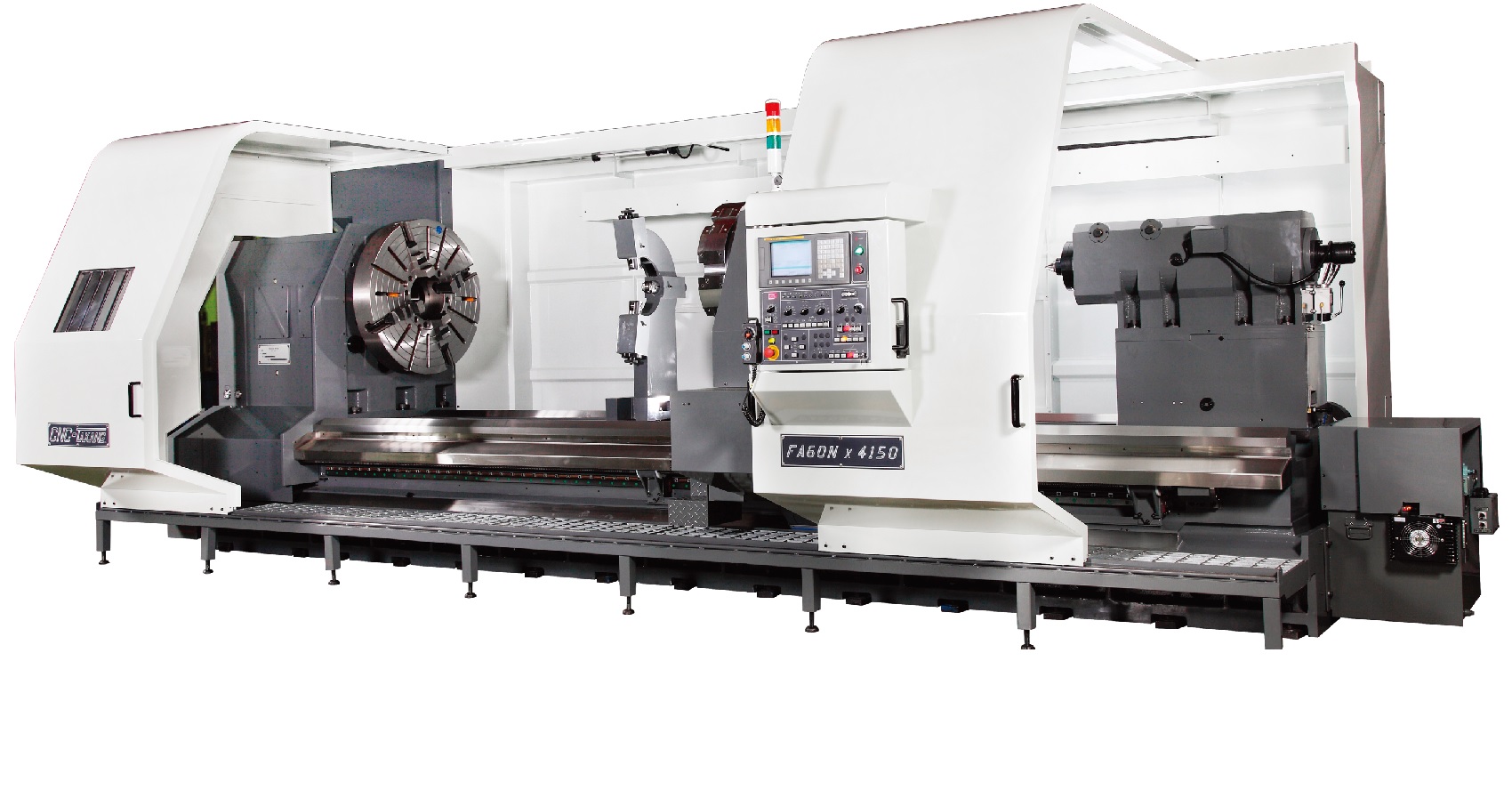

TNC-15 TNC-15 DCM 1442 DCM 1442 TNC-N200DST TNC-N200DST FA90N FA90N LC 30 LC 30 LD 60 LD 60 LA 35 LA 35 DCM 4852 DCM 4852 DCM 3660 DCM 3660 DCMS-32 DCMS-32
