BENZINGER DOLittle B1 CNC Machine Specifications
Origin: German
Category: Lathe CNC
Model B1
| Specification | Value |
|---|---|
| Travel path X1-axis | 320 mm |
| Travel path X2-axis | Not available |
| Travel path Z1-axis | 145 mm (Optional 185 mm) |
| Travel path Z2-axis | Not available |
| Travel path Y-axis | 80 mm |
| Rapid motion X/Z/Y | 30 m/min |
| Acceleration X/Z/Y | 5 m/s² |
| Main spindle bar capacity | 16 / 26 mm |
| Spindle speed | Up to 15,000 rpm |
| Spindle power | 13 kW (S1) |
| Spindle nose | DIN ISO 702-1:2010-04 A4 / Benzinger Standard |
| Workpiece clamping | Hydraulic / Pneumatic |
| Chuck size | Up to 65 mm / Up to 110 mm |
| C-axis resolution | 0.001° |
| Tool turret | Star type VDI25 DIN69880 / 12 positions |
| Driven tools | Max. 12 (48-indexing possible) |

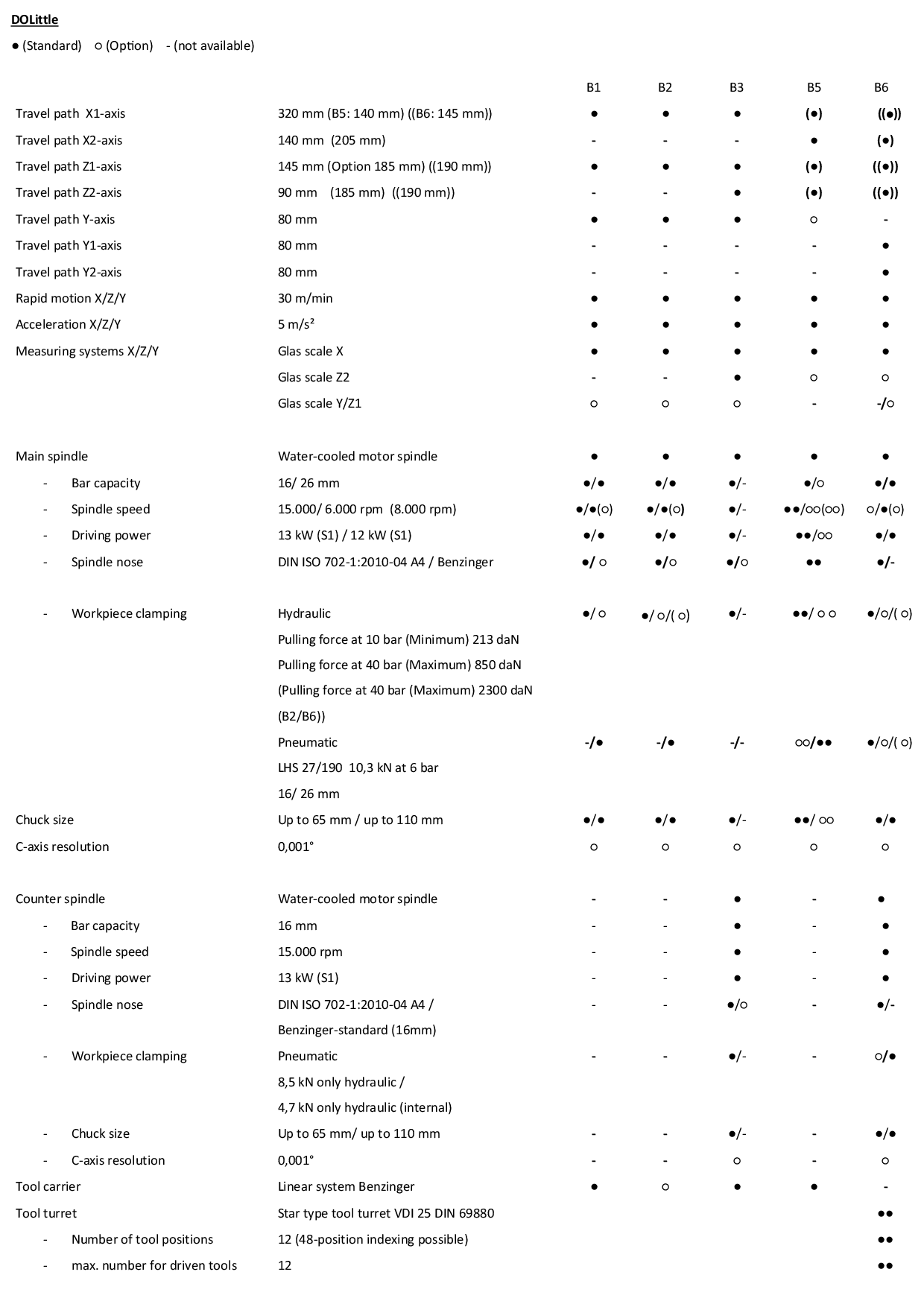

BENZINGER DOLittle CNC Lathe Series – Technical Overview
