Avoid Costly Mistakes: Professional Tips for Purchasing a Pre-Owned, Surplus, Second-Hand, Used HARDINGE-BRIDGEPORT V-1000 CNC Vertical Machining Center made in USA
Professional Buyer Guide – Avoid Costly Mistakes
Machine Overview & Technical Specifications

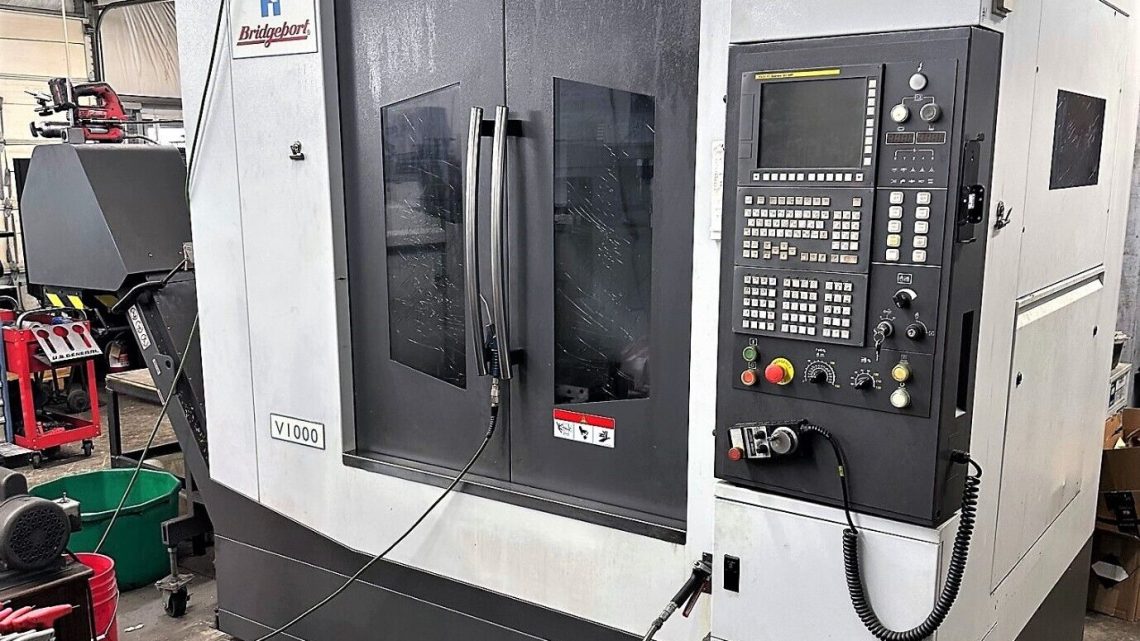

The Hardinge Bridgeport V-1000 is a high-performance vertical machining center designed for precision milling and medium to heavy-duty production environments. It is widely used in aerospace, automotive, and subcontract machining sectors.
Technical Specifications (Typical Configuration)
| Specification | Metric | Imperial |
|---|---|---|
| X-Axis Travel | ~1,020 mm | 40 in |
| Y-Axis Travel | ~610 mm | 24 in |
| Z-Axis Travel | ~610 mm | 24 in |
| Table Size | ~1,020 × 600 mm | 40.2″ × 23.6″ |
| Max Table Load | ~900 kg | 1,984 lb |
| Spindle Speed | 10,000 – 15,000 rpm | 10,000 – 15,000 rpm |
| Spindle Motor | 22 – 30 kW | 30 hp |
| Spindle Taper | CAT 40 Big-Plus | CAT 40 |
| Tool Capacity | 30 tools | 30 tools |
| Rapid Traverse (X/Y/Z) | up to 48 m/min | up to 1,890 ipm |
| CNC Control | Fanuc / Mitsubishi / Siemens / Heidenhain | Same |
| Axis Configuration | 3 or 4 Axis | 3 or 4 Axis |
Note: Specifications may vary depending on year, configuration, and installed options.
Critical Buying Checklist
1. Spindle Condition (Highest Financial Risk)
- Check for abnormal noise at high RPM
- Measure tool holder runout
- Observe temperature stability during operation
A worn spindle can cost between €6,000 and €12,000 or more to rebuild.
Always request:
- Warm-up video
- Cutting test under load
2. Linear Guideways and Ballscrews
- Check backlash values on all axes
- Observe vibration during rapid movements
- Inspect surface finish quality on test parts
Wear in guideways or ballscrews directly affects machining accuracy.
3. CNC Control System
Common control units:
- Mitsubishi M70
- Fanuc 0i-MF
- Siemens or Heidenhain
Check:
- Alarm history
- Parameter backups
- Program execution stability
Missing parameters can make the machine unusable.
4. Automatic Tool Changer (ATC)
- Typically 30-tool capacity
- Check arm movement and alignment
- Inspect tool pockets for wear
ATC malfunction leads to production downtime.
5. Machine Geometry Verification
Do not purchase without:
- Ballbar test results
- Laser calibration report (if available)
Check:
- Circular interpolation accuracy
- Axis squareness
6. Servo Motors and Drives
- Check for servo alarms
- Monitor axis lag or hesitation
- Inspect for overheating issues
Repairs in this area can be costly and time-consuming.
7. Coolant and Chip Management
Typical features:
- Chip conveyor
- Through spindle coolant (optional)
- Spindle chiller
Check:
- Coolant pressure stability
- Chip evacuation efficiency
Poor chip evacuation can damage the spindle.
8. Power-On Inspection (Very Important)
If the machine is not under power:
- Spindle condition is unknown
- Control system may have hidden faults
- Possible crash damage cannot be detected
Recommendation:
- Always inspect the machine under power
- If not possible, negotiate a 20–40% price reduction
9. Machine Hours Verification
Request:
- Spindle hours
- Power-on hours
Verify directly from the control screen, not only from the seller.
10. Location and Logistics Risk
For international purchases:
Check:
- Exact machine location (factory or warehouse)
- Loading responsibility
- Export documentation
Secure:
- Bill of sale
- Serial number confirmation
- Confirmation of no financial liens (especially in the USA)
Professional Buying Strategy
Safe Purchase Approach
- Request live video inspection (Zoom or WhatsApp)
- Ask for a real cutting test
- Hire a local inspection engineer if necessary
- Use staged or escrow payment methods
Negotiation Strategy
Use technical risks to adjust price:
- Machine not under power: reduce by 30%
- No cutting test: reduce by 20%
- High spindle hours: reduce by 10–15%
Final Evaluation
The Hardinge Bridgeport V-1000 offers:
- High rigidity and precision
- Strong spindle performance
- Reliable control systems
- Good resale value
However, the main risks are:
- Spindle wear
- Hidden crash damage
- Control system issues
Conclusion
If the machine:
- Is tested under power
- Has a verified spindle condition
- Passes geometry checks
It is a reliable and high-value investment.
If these conditions are not met, it should be treated as a project machine rather than a production-ready asset.
