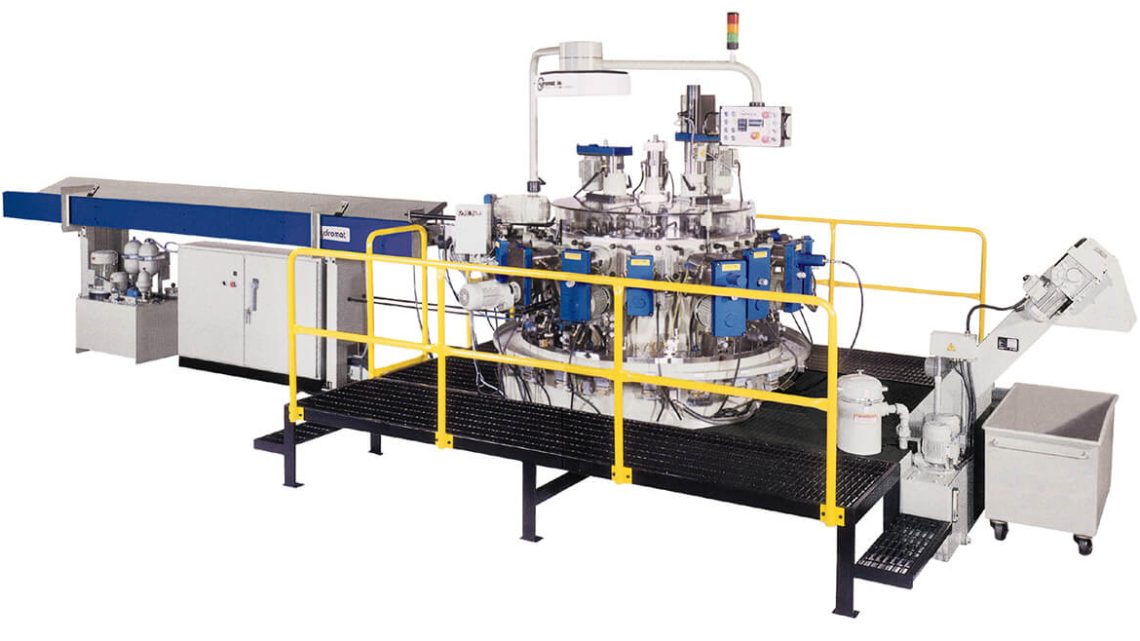

Specification	Metric	Imperial
Machine Type	Rotary Transfer Machine (CNC)	Rotary Transfer Machine (CNC)
Make / Model	Pfiffner Hydromat HB 32/45-16 CNC	Pfiffner Hydromat HB 32/45-16 CNC
Machine Number	HB32-305	HB32-305
Year	2020	2020
Condition	Used – Ready for Operation	Used – Ready for Operation
Status	Fully Functional	Fully Functional
Control System	Bosch MTX (HME Interface)	Bosch MTX (HME Interface)
Machine Base Dimensions (L x W x H)	4000 x 2500 x 3000 mm	157 x 98 x 118 in
Machine Weight	6000 kg	13,228 lbs
Loading Magazine Length	4200 mm	165.4 in (13.8 ft)
Aisle Width Requirement	3000 mm	118 in

Machine Configuration
Machine Table with 8 Collet Chucks
Machine Table with 8 Two-Jaw Chucks
1× Stäubli Robot for Part Transfer (Between Clamping Positions)
1× Loading Magazine (4.2 m)

Machining Units
1× VE 40/80 Sawing Unit
8× Feed Units (VE 36/100 or VE 35/60)
5× CNC 50/100 Turning Units
2× 3-Axis CNC Milling Units

Coolant & Monitoring Systems
Knoll Oil Coolant System
Vacuum Rotary Filter
Low-Pressure Coolant Pumps
High-Pressure Internal Tool Cooling System
Nordmann Tool Monitoring System

Logistics & Handling Notes
Machine Delivered in Modular / Demountable Components
No Crane Available On Site
Forklift Required for Disassembly
Wide Hall Access – Truck Can Drive Directly to Loading Area
Large Roller Gate Available for Easy Transport
