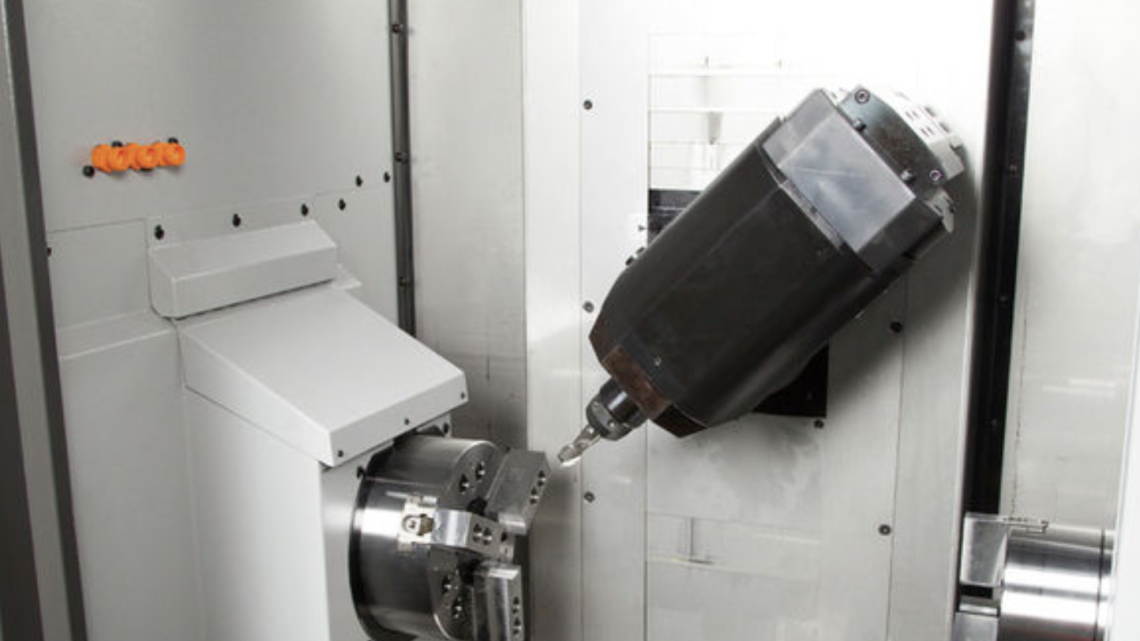

Available now : used Tsugami TMA8F CNC MultiTasking Turning-Milling Center – Year 2019 made in Japan
| Maximum Bar Stock | 65 mm, 2.56″ |
| Maximum Work Diameter | 220 mm, 8.66″ |
| Max Work Length | 580 mm, 22.83″ |
| Main Spindle Speed/Motor | 5,000 rpm, 20hp |
| Sub Spindle Speed/Motor | 5,000 rpm, 15hp |
| Tool Spindle Speed / Motor | 20,000 rpm, 15hp |
| ATC | 60 CAPTO C4 Tools Standard |
| Control | FANUC 31i-B5 |
| Weight | 18,739 lbs / 8,500 kg |
| Footprint: W x D x H | 3,700 x 2,126 x 2,250mm / 145.7 x 83.7 x 88.6″ |
Excellent Condition
One owner who was the only operator
8″ & 6″ Power chucks as well as a 6″ 2 jaw power chuck
(2) ATS Dead length collet chucks
(1) QG-65 Collet Chuck
Mist collector
1000 PSI coolant
(106) Sandvik Capto C4 tool holders
2019 Installed new in 2020
Glass scales
20,000 rpm tool spindle
Hand wheel
Chuck foot pedal
Flexible, Precise Mill/Turn Multifunction Machine
The Tsugami TMA8F Multitasking Turning Center is the ultimate machining solution. The TMA8F is a 6-Axis Turn/Mill equipped with a 60 tool magazine and the ability to perform full 5-Axis simultaneous machining to machine complex parts complete in a compact, flexible machine tool. You can take the most complex part and perform a full range of operations: CNC milling, drilling, tapping, compound angle work, turning, boring, and threading in a single set-up.
The TMA8F turn/mill center delivers higher precision, a large capacity tool changer (60 CAPTO C4 standard), glass scales on X/Y/Z axes, standard touch setter, parts catcher, and C-axis capability in a powerful yet compact machine tool. The possibilities are endless; the 8 inch chuck allows for machining of large diameter parts while a quick change collet system can be adapted for up to 2.5 inch bar work through the spindle.
