Makino F3-5XR CNC Vertical Machining Center with Koma Tilting-Rotary Table – Year 2017

Machine Overview

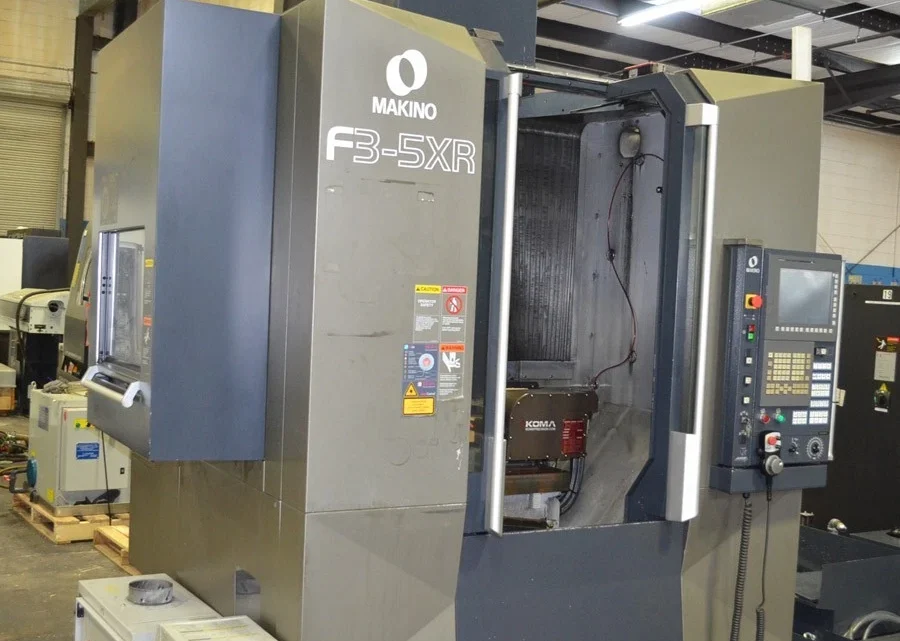

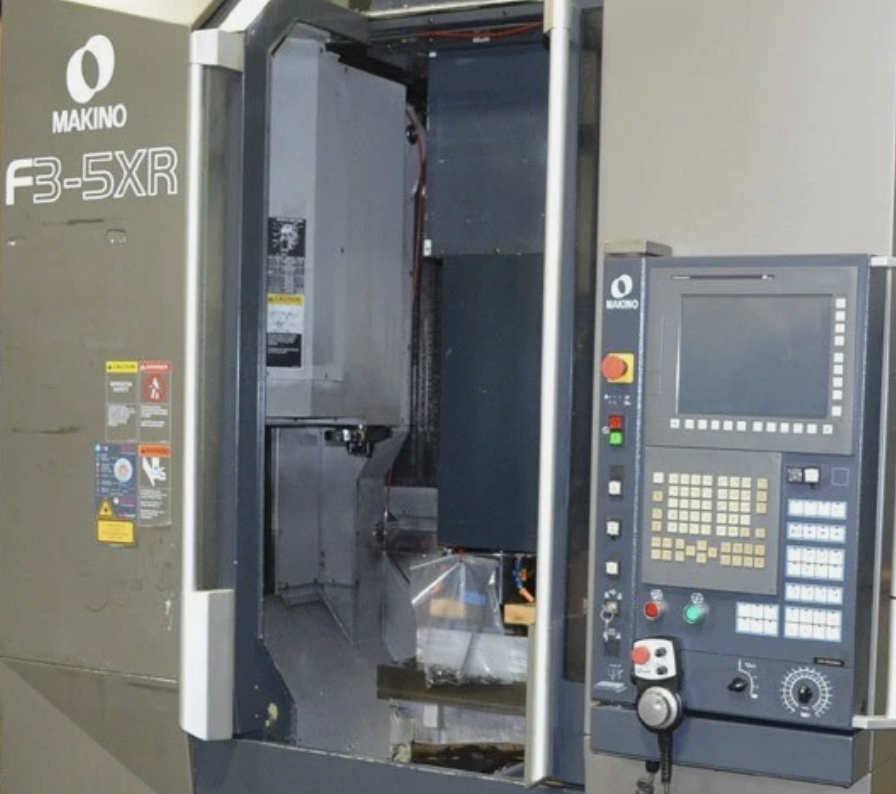

Makino F3-5XR CNC 5-Axis Vertical Machining Center, Year 2017, equipped with a Makino Professional 5 CNC Control, 20,000 RPM HSK-A63 spindle, and a removable Koma TND-160M 5-Axis Tilting-Rotary Table. This high-speed machining center is engineered for precision 5-axis machining of complex aerospace, medical, mold & die, and precision engineering components. The machine is further equipped with a ChipBlaster through-spindle coolant system and tooling package.

Technical Specifications

Specification	Metric	Imperial
Manufacturer	Makino	Makino
Model	F3-5XR	F3-5XR
Year of Manufacture	2017	2017
Machine Type	5-Axis CNC Vertical Machining Center	5-Axis CNC Vertical Machining Center
CNC Control	Makino Professional 5	Makino Professional 5
Table Size	850 × 500 mm	33.46″ × 19.68″
Maximum Table Load	650 kg	1,433 lbs
Maximum Workpiece Size	850 × 500 × 450 mm	33.46″ × 19.68″ × 17.72″
Distance from Table to Spindle Nose	150 – 600 mm	5.90″ – 23.63″
X-Axis Travel	650 mm	25.59″
Y-Axis Travel	500 mm	19.68″
Z-Axis Travel	450 mm	17.72″
Spindle Taper	HSK-A63	HSK-A63
Maximum Spindle Speed	20,000 RPM	20,000 RPM
Spindle Motor (15 Min.)	22 kW	29.5 HP
Spindle Motor (Continuous)	17.9 kW	24 HP
Automatic Tool Changer	30 Tools	30 Tools
5-Axis Rotary Table
Manufacturer	Koma	Koma
Model	TND-160M	TND-160M
Type	Removable Tilting-Rotary Trunnion Table	Removable Tilting-Rotary Trunnion Table
Table Diameter	160 mm	6.30″
Tilt Range	-30° to +110°	-30° to +110°
Tilt Speed	11.1 RPM	11.1 RPM
Rotary Speed	41.6 RPM	41.6 RPM
Servo Motors	Fanuc	Fanuc
Coolant & Equipment
Through-Spindle Coolant	ChipBlaster D30-35	ChipBlaster D30-35
Coolant Type	High-Pressure Through Spindle	High-Pressure Through Spindle
Tooling	Included	Included
Standard Equipment
Makino Professional 5 CNC Control 20,000 RPM High-Speed HSK-A63 Spindle 30-Position Automatic Tool Changer Koma TND-160M 5-Axis Tilting-Rotary Table Fanuc Servo Motors on Rotary Table ChipBlaster D30-35 Through-Spindle Coolant System Tooling Package
Applications
Ideal for simultaneous 5-axis machining of aerospace components, medical implants, turbine blades, impellers, molds and dies, precision tooling, automotive components, high-performance aluminum parts, titanium alloys, stainless steel components, and complex free-form surfaces requiring exceptional accuracy and surface finish.
Machine Features
The Makino F3-5XR is a premium high-speed 5-axis machining center designed for demanding precision manufacturing applications. Featuring a powerful 20,000 RPM HSK-A63 spindle, Makino Professional 5 CNC control, removable Koma TND-160M trunnion table, and ChipBlaster through-spindle coolant system, the machine delivers outstanding rigidity, thermal stability, and machining accuracy. The removable rotary table provides exceptional flexibility, allowing the machine to operate as either a dedicated 5-axis machining center or a high-performance 3-axis vertical machining center depending on production requirements.
